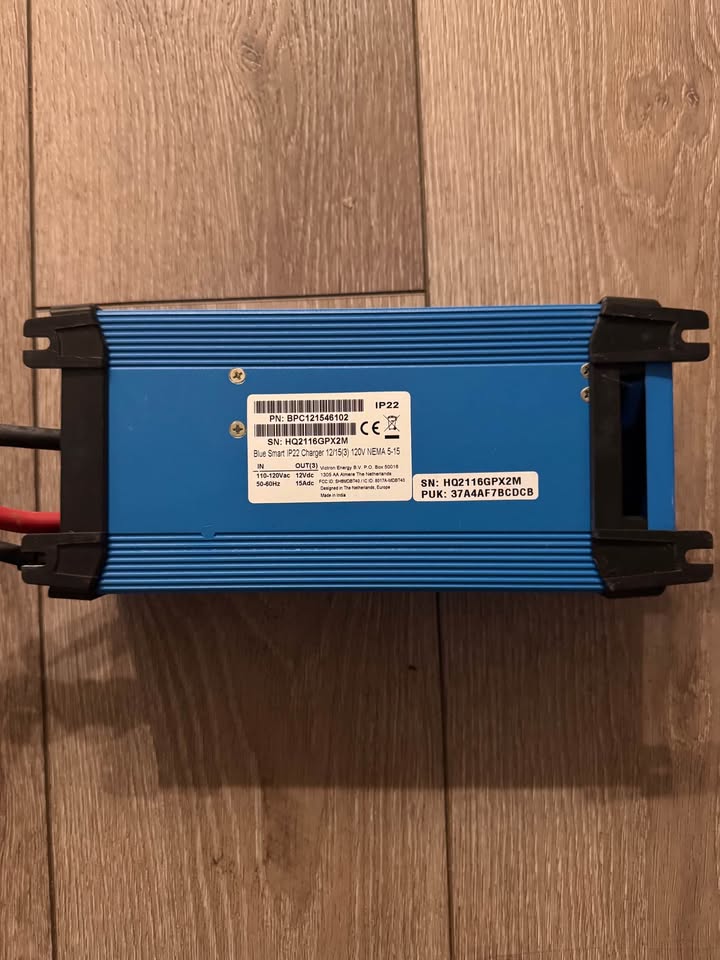

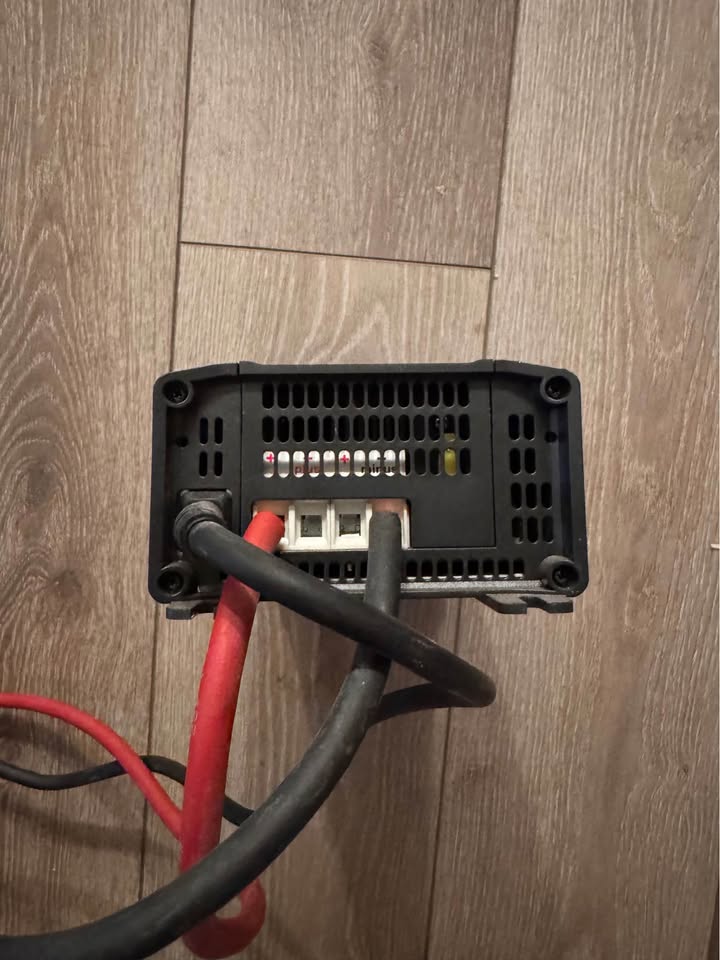

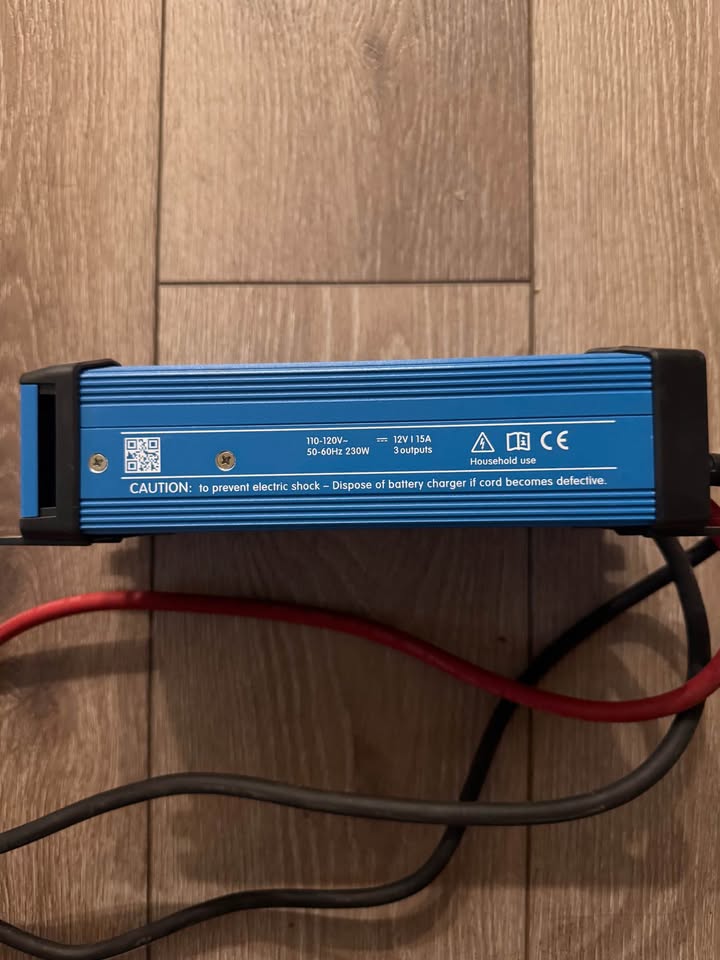

Blue Smart IP22 Charger 12/15(3) 120V NEMA 5-15

12V/15A 3 Output

Victron IP22 Battery Chargers
Victron IP22 Battery Chargers are the latest professional battery charger with built-in bluetooth. The Victron IP22 Battery Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans. *The IP22 does not include DC battery cables, we recommend purchasing Spartan Power 6AWG battery cable with the IP22 battery charger. *Battery cable is not included with the IP22, please check the datasheet for recommended battery cables!*

Bluetooth Smart
The Victron IP22 battery charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.

High efficiency
With up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. Once the battery is fully charged, power consumption reduces to 0.5 Watt, some five to ten times better than the industry standard.

Adaptive 6-stage charge algorithm: test -bulk –absorption-recondition–float –storage
The Blue Smart Charger features a microprocessor controlled ‘adaptive’ battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.

Storage Mode: less maintenance and aging when the battery is not in use
The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2.2V/cell (13.2V for a 12V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.

charges Li-ion batteries
Li-ion batteries are charged with a simple bulk – absorption – float algorithm.

Fully discharged battery recovery function
Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with internal disconnect function.

NIGHT and LOW setting
When in NIGHT or LOW mode, the output current is reduced to max. 50% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.

Protected against overheating
Output current will reduce as temperature increases up to 50°C, but the Blue Smart Charger will not fail.

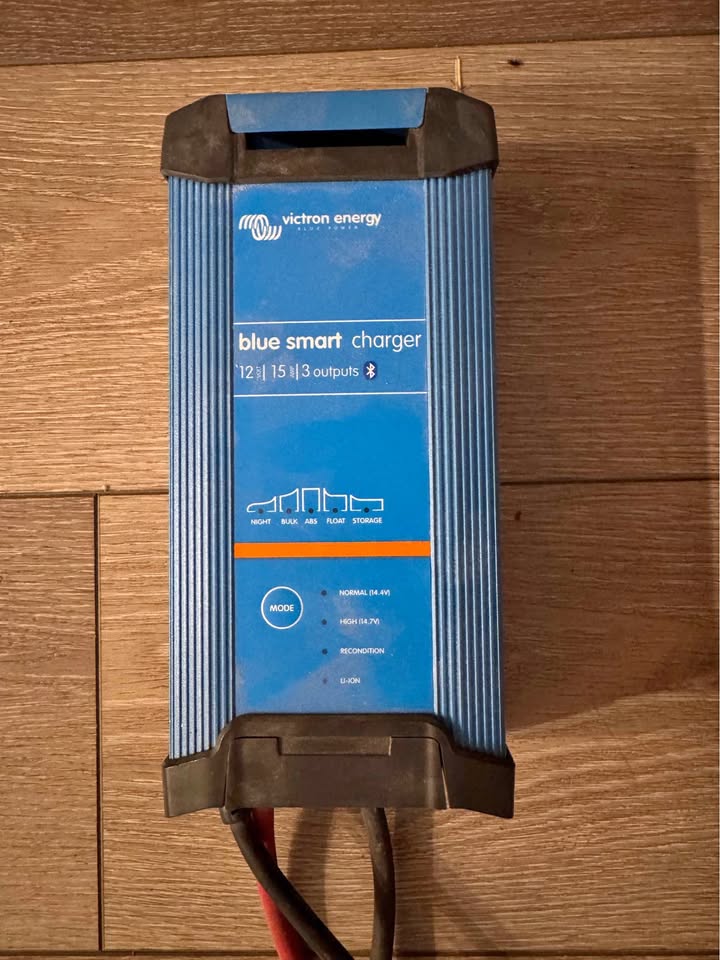

Eleven LEDs for status indication
Charge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY. MODE button to set: NORMAL (14,4V) / HIGH (14,7V) / RECONDITION / LI-ION.
