Description

Tent Mount Sets are a fast and easy solution to mounting any Eezi-Awn Tent to your Eezi-Awn K9 Roof Rack System. Available in three designs to accommodate your setup. All mounts are powder-coated black aluminum.

Please note that all mount sets require the Tent Installation Kit, which is included in all Eezi-Awn tent purchases made direct; you do not need to purchase separately unless you have a second-hand tent that did not include the original hardware or you are replacing lost parts.

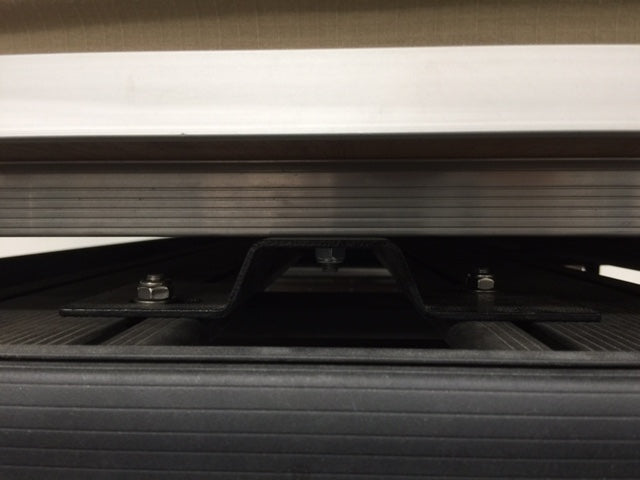

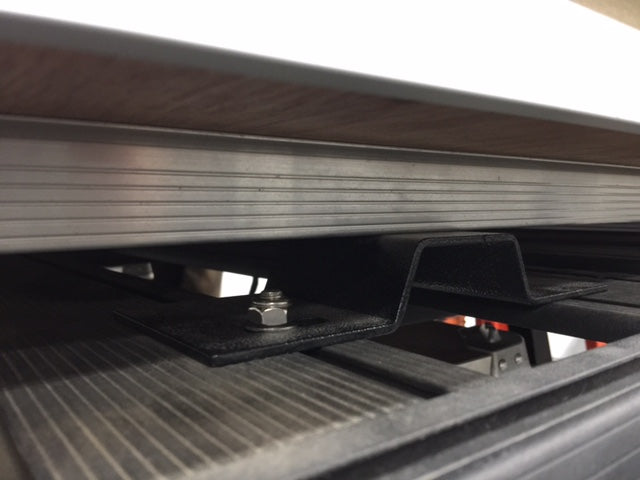

Elevated

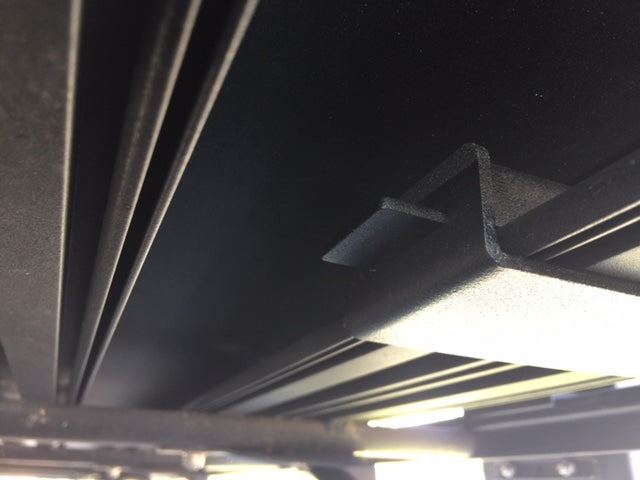

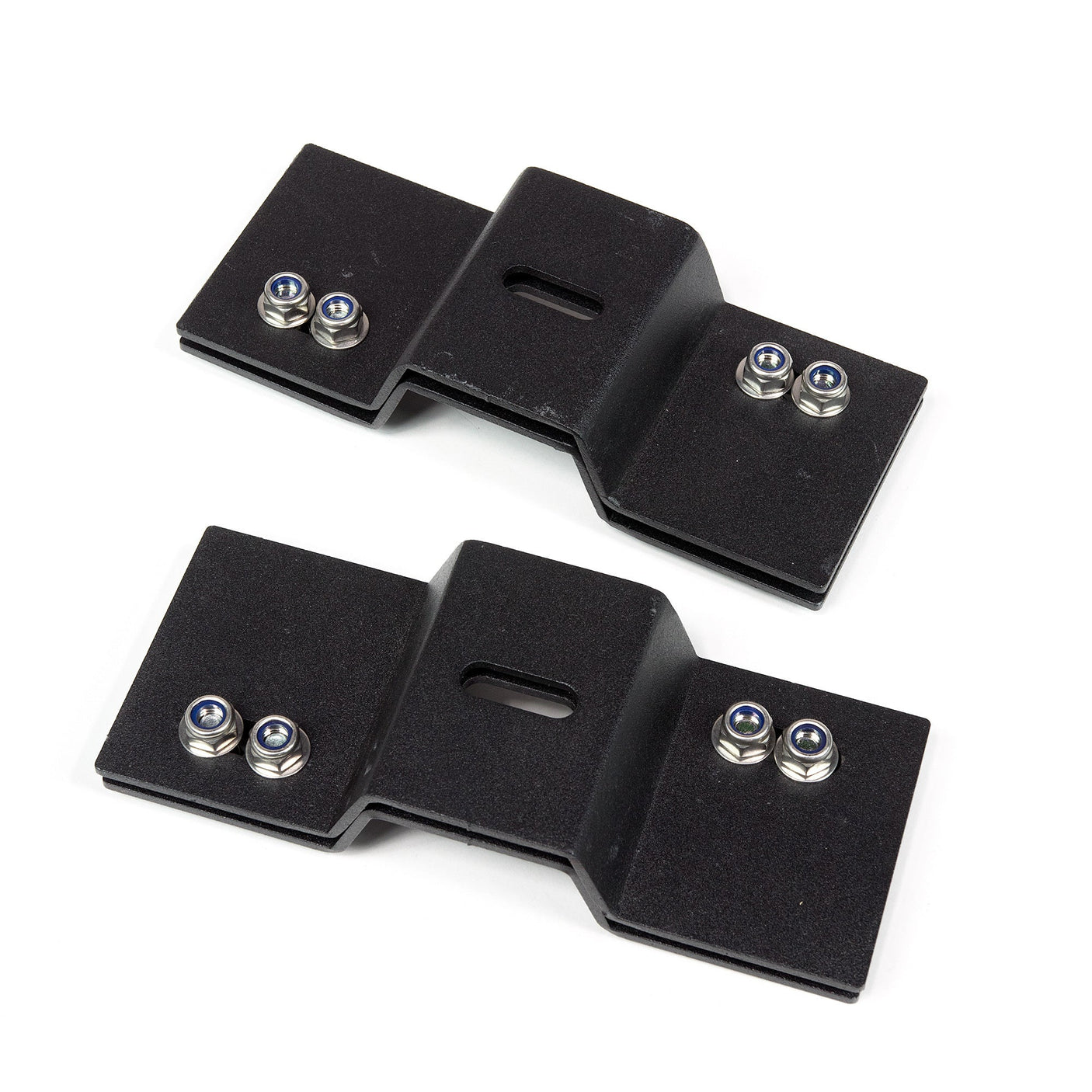

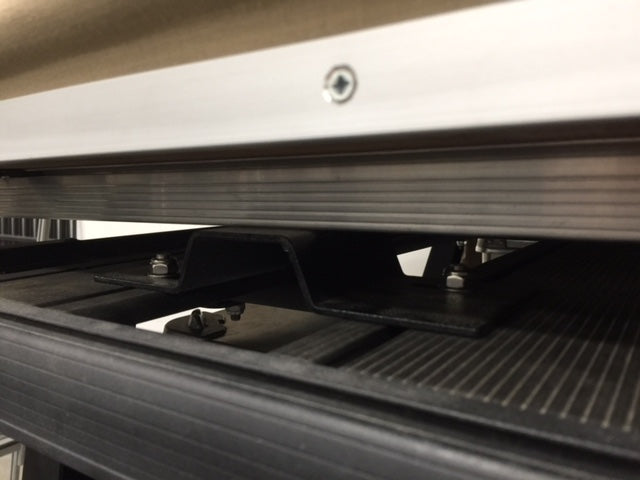

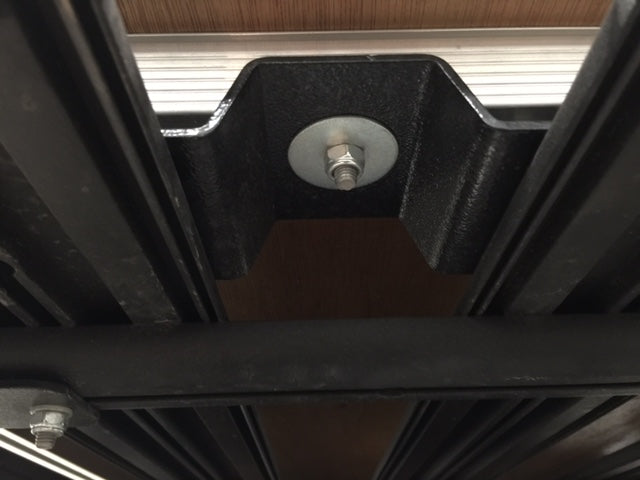

This set comes with (4) stepped bars shaped like top hats. They are designed to fasten perpendicular to the K9 Roof Rack slats, which run front to back, and will elevate the tent ~2" to accommodate other gear such as an awning.

8"L x 3"W x 1.25"H

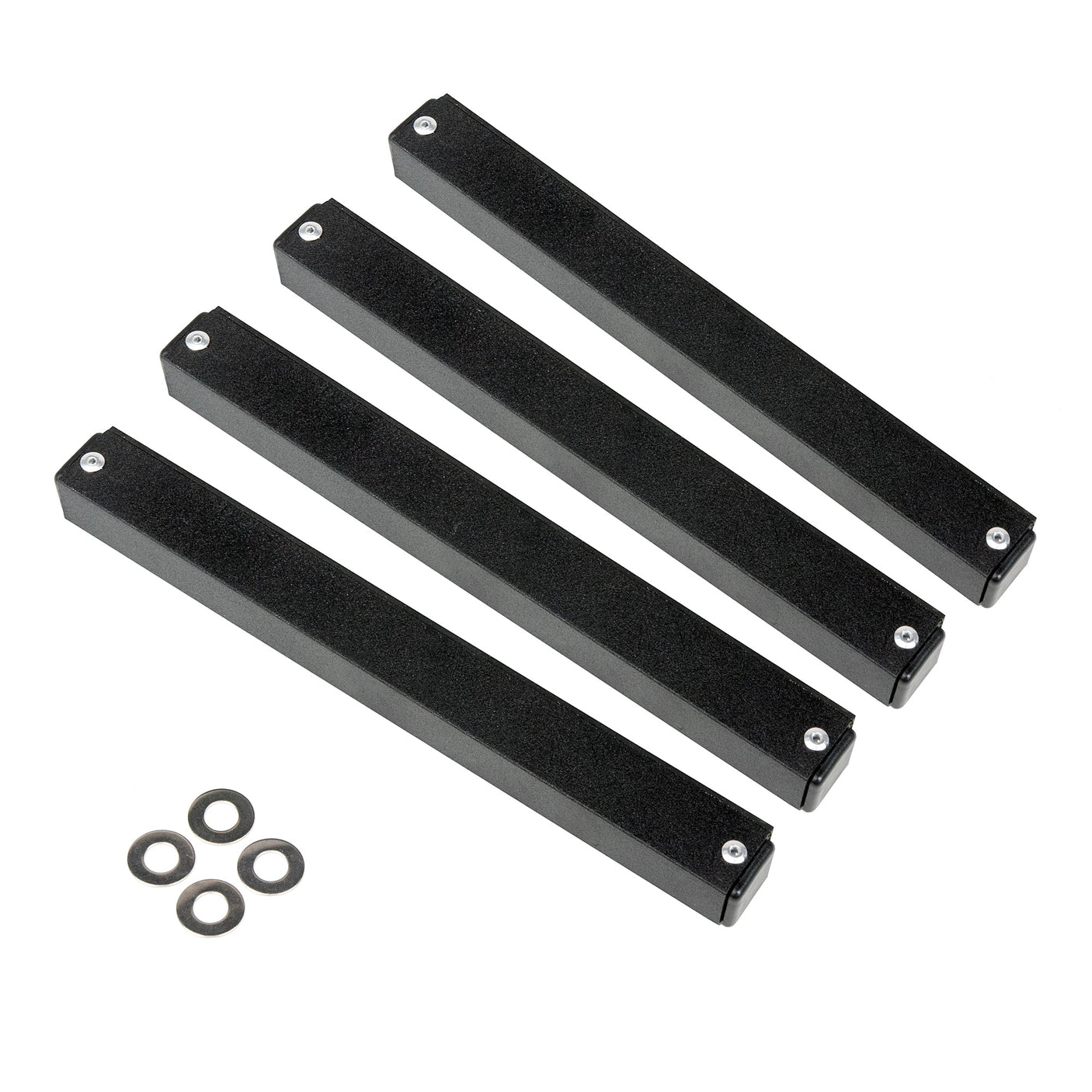

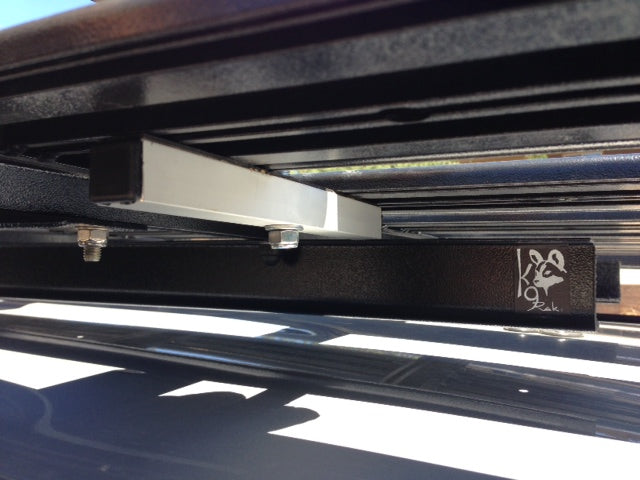

Standard

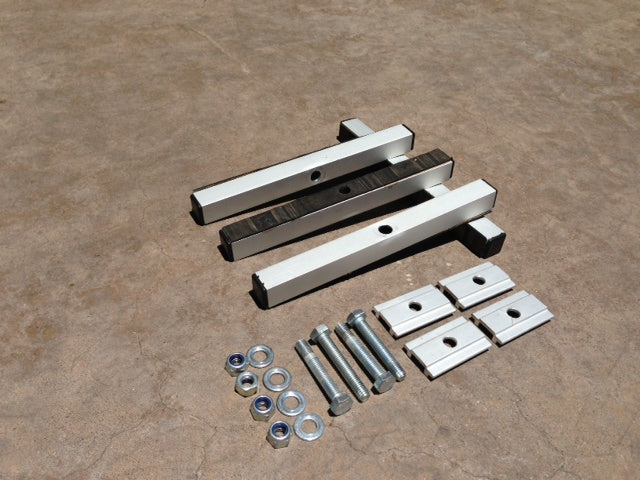

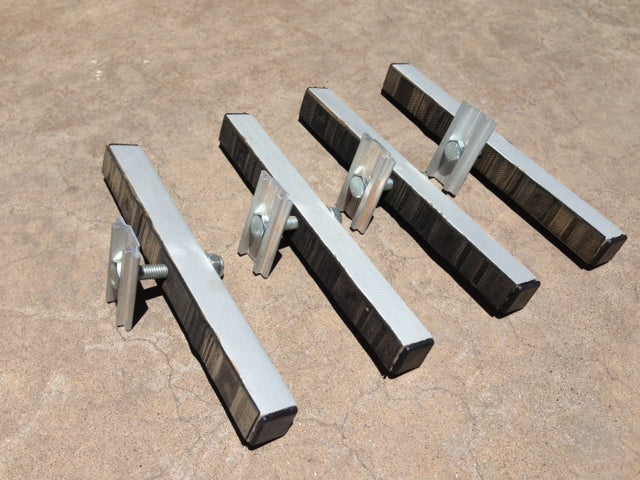

This set comes with (4) aluminum square bars with a single-sided non-skid rubber surface. They are designed to fasten perpendicular to the K9 Roof Rack slats, which run front to back, and will seat sandwiched between those and the tent, setting the tent ~1.5" above roof rack line. Installation takes less than a minute per bar.

8"L x 1"W x 1"H

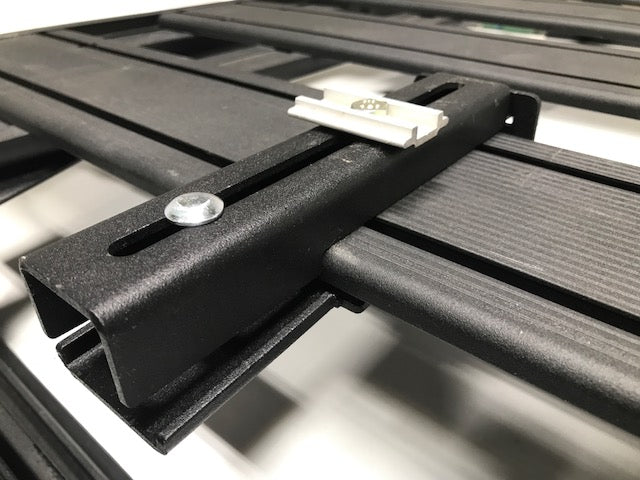

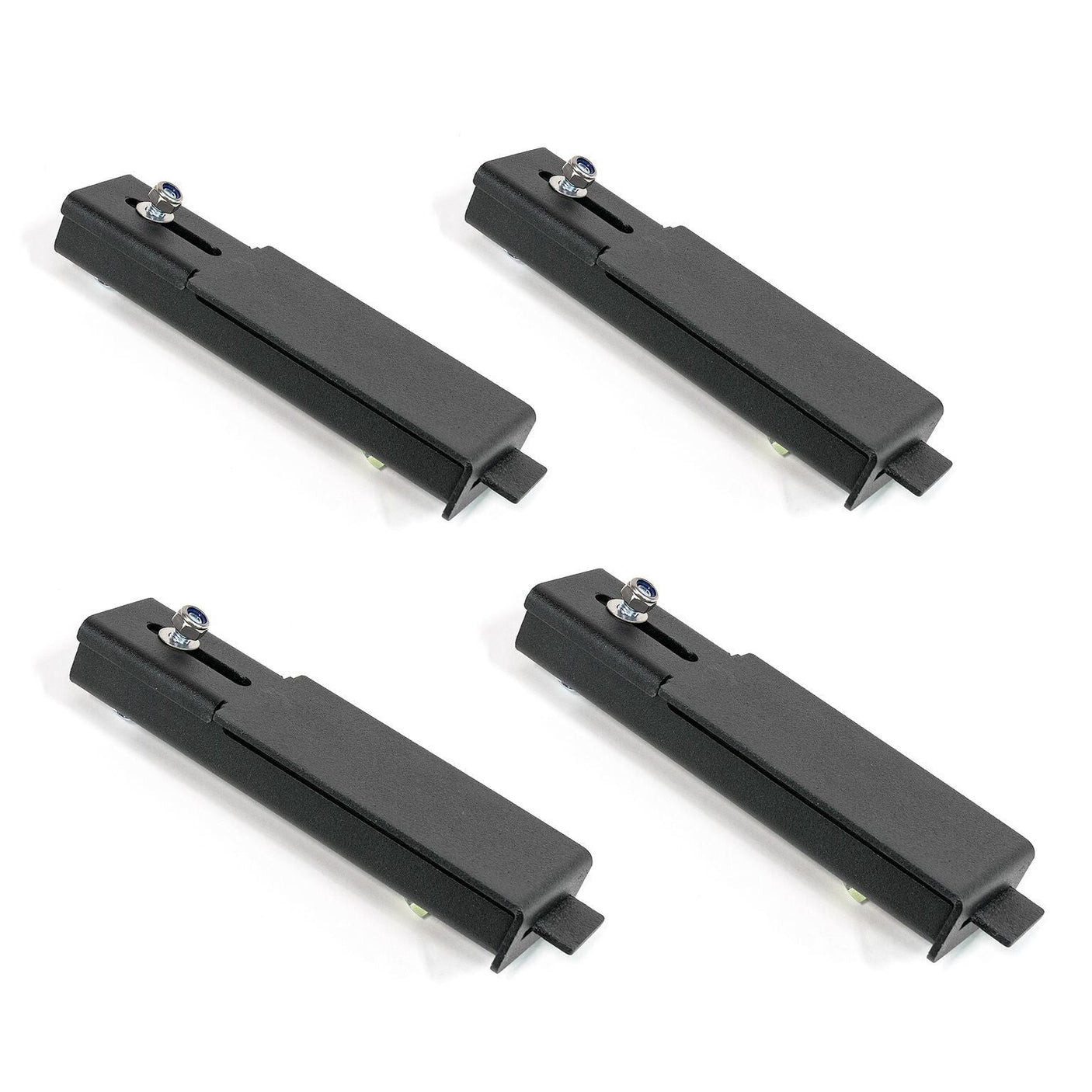

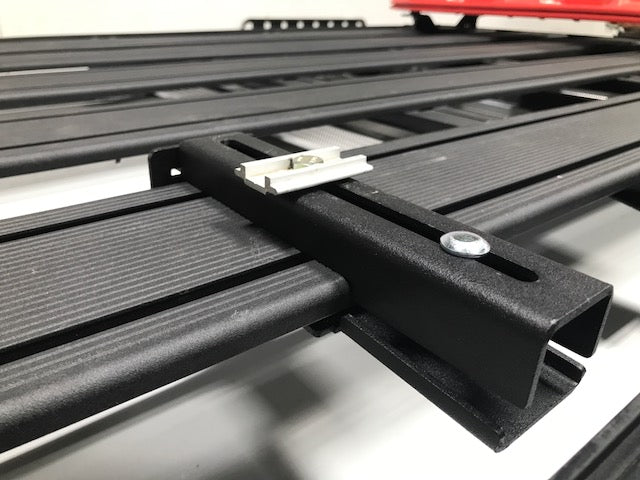

Hard Shell

Despite that this set was specifically designed for the Stealth Hard Shell Roof Top Tent, it can work with all Eezi-Awn tents!

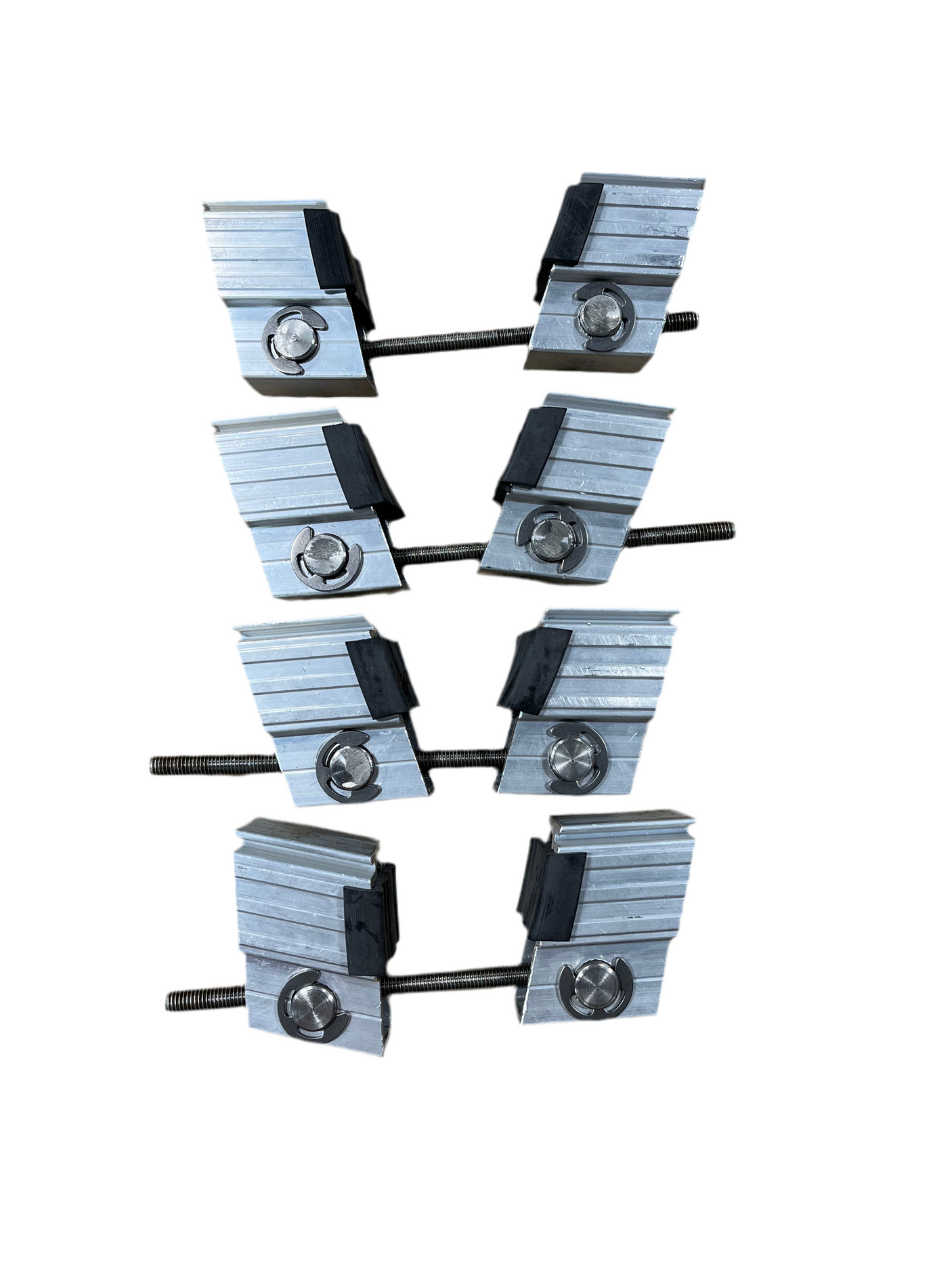

This set comes with (4) 2-piece aluminum clamps. They are designed to fasten perpendicular to the K9 Roof Rack slats, which run front to back, and will set the tent almost flush with your rack.

These mounts also provide a broader adjustable base for a tent that does not align with the K9 Roof Rack slats.

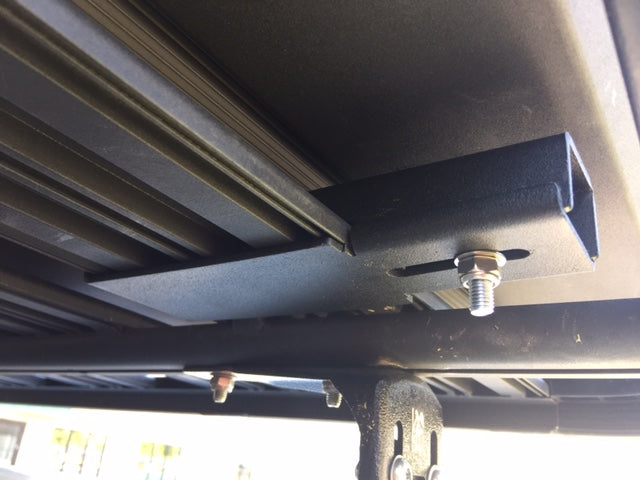

Installation is as simpe as tightening three screws per clamp. One side of the clamp connects to the included Installation Kit hardware with a screw; this assembly then slides into the extrusions running length-wise on the base, setting the clamp flush against the tent. The second clamp piece is connected to the original with a screw, creating an interior enclosure and allowing the two pieces to pivot open and closed while you position it on the rack. The third screw locks the clamp into position on the K9 Roof Rack.
