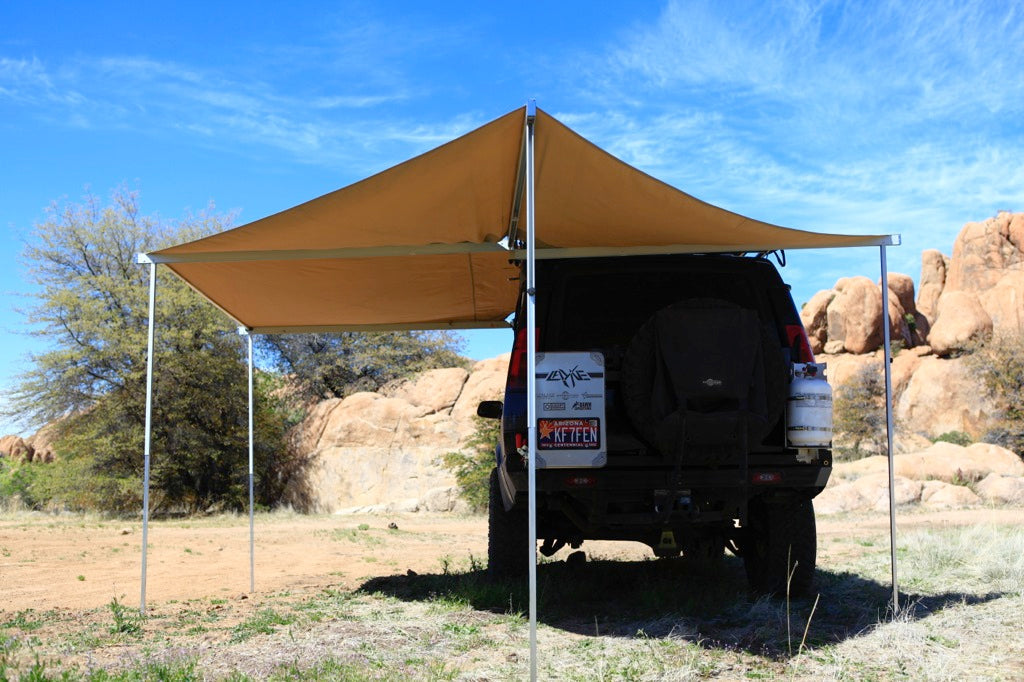

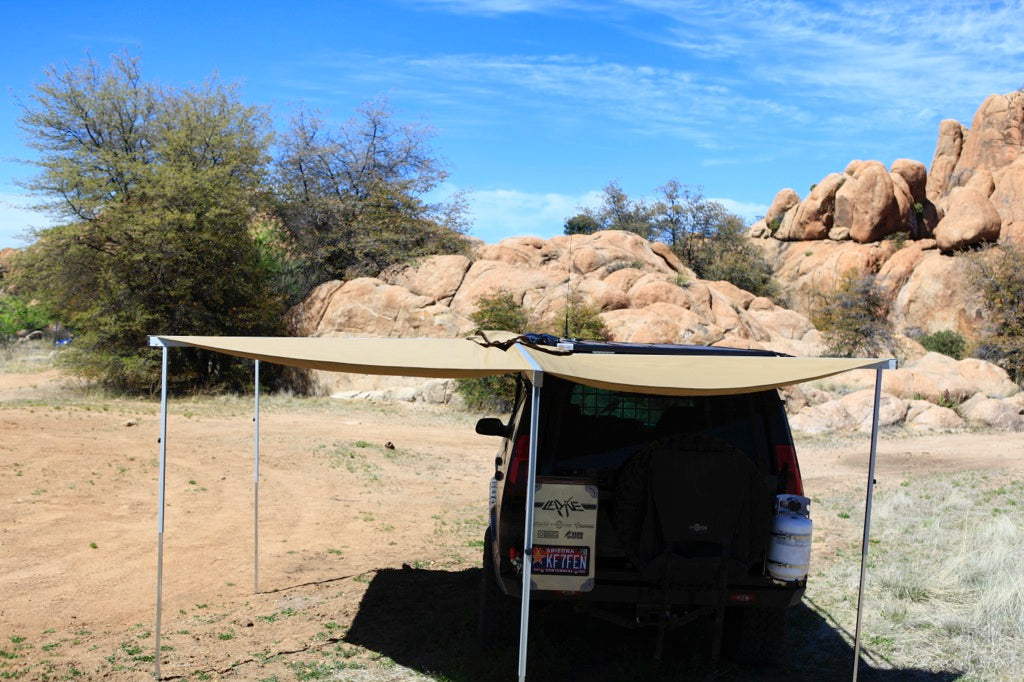

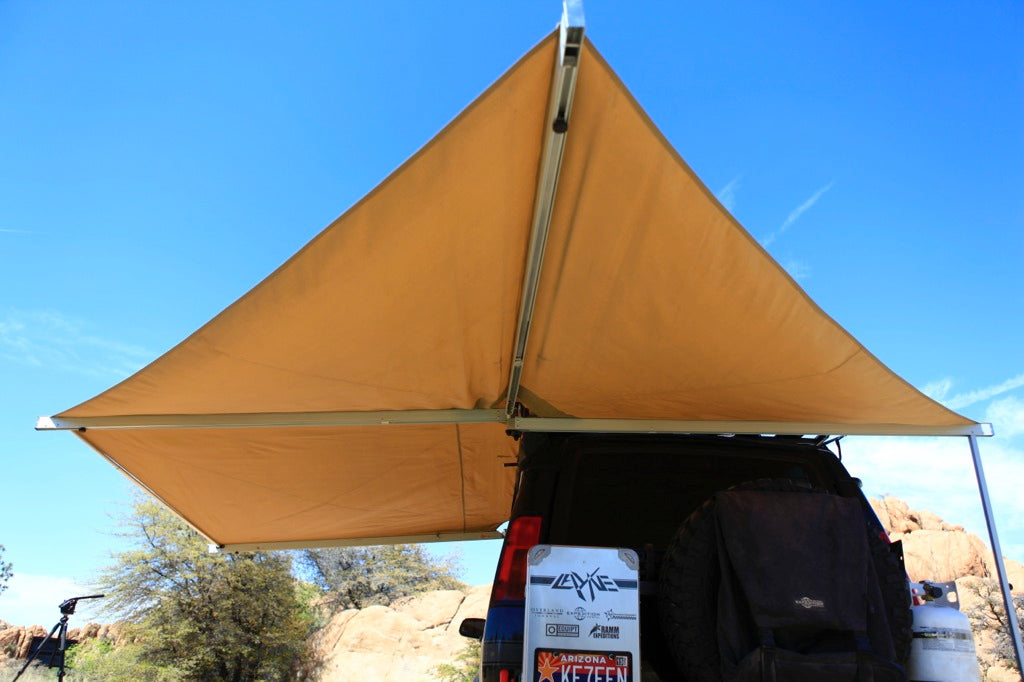

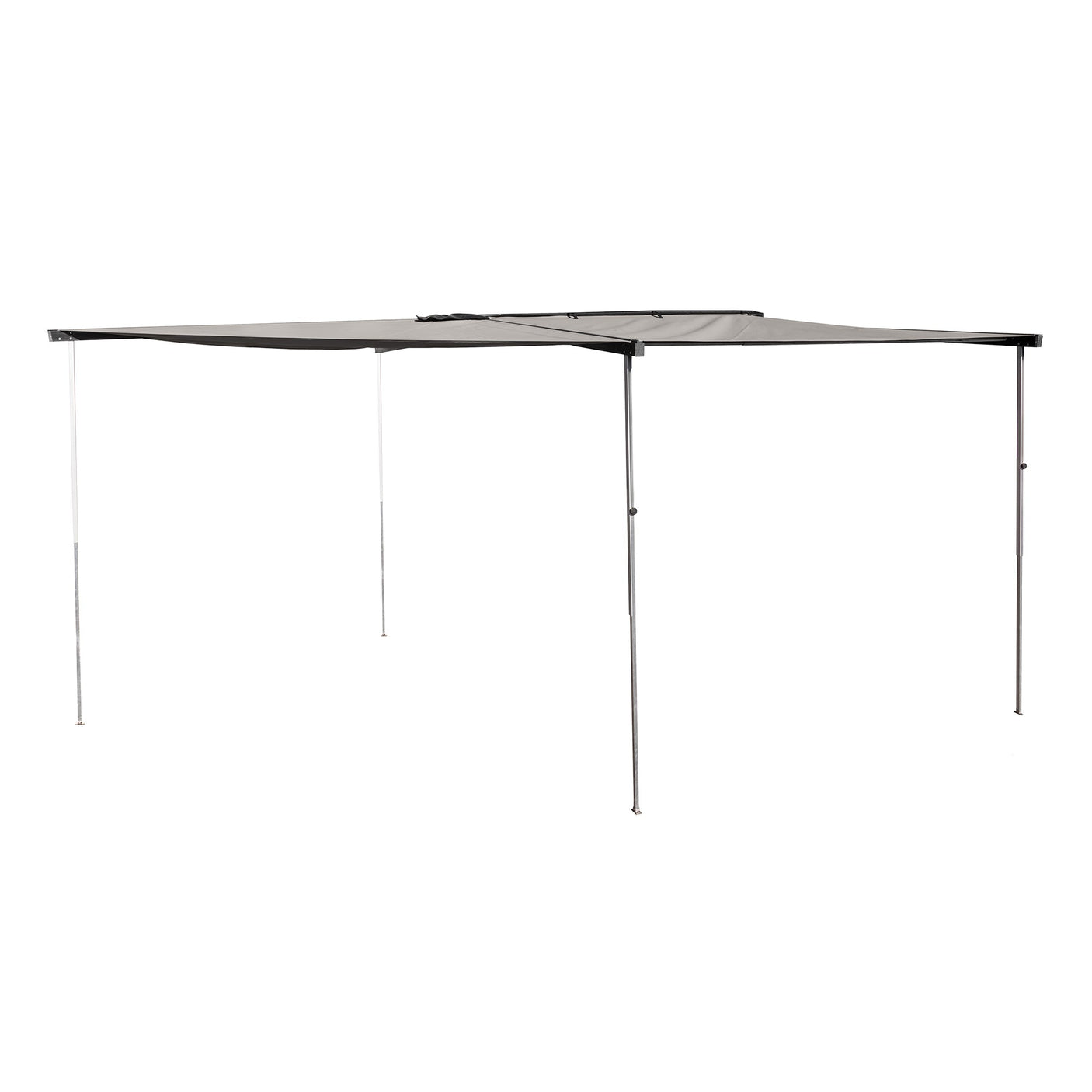

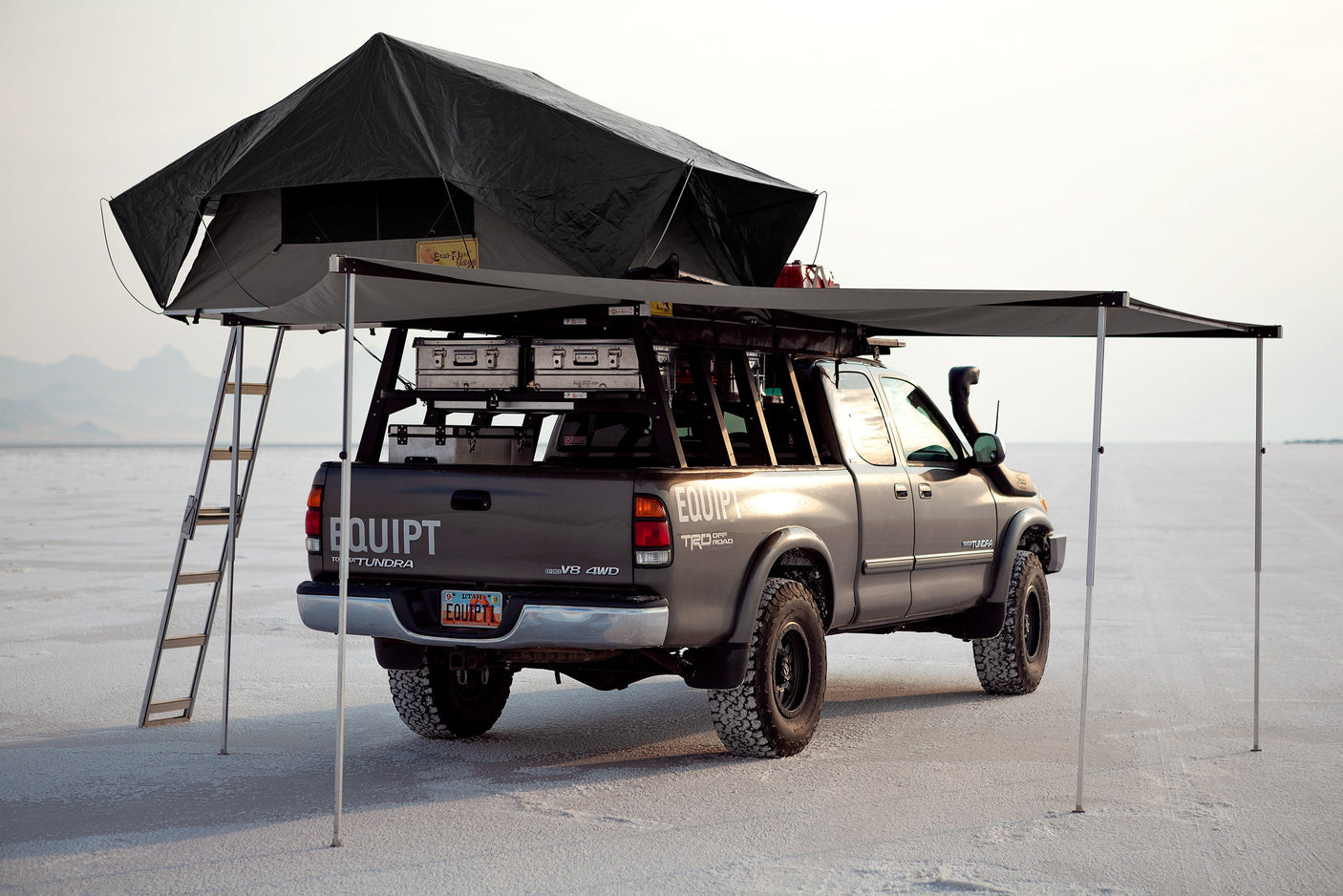

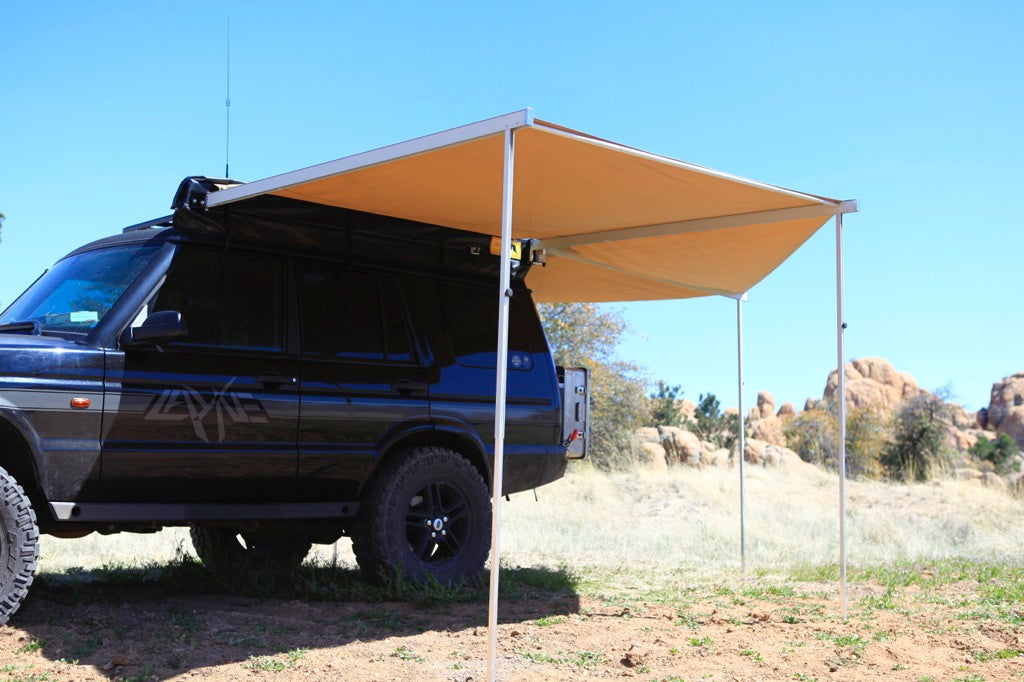

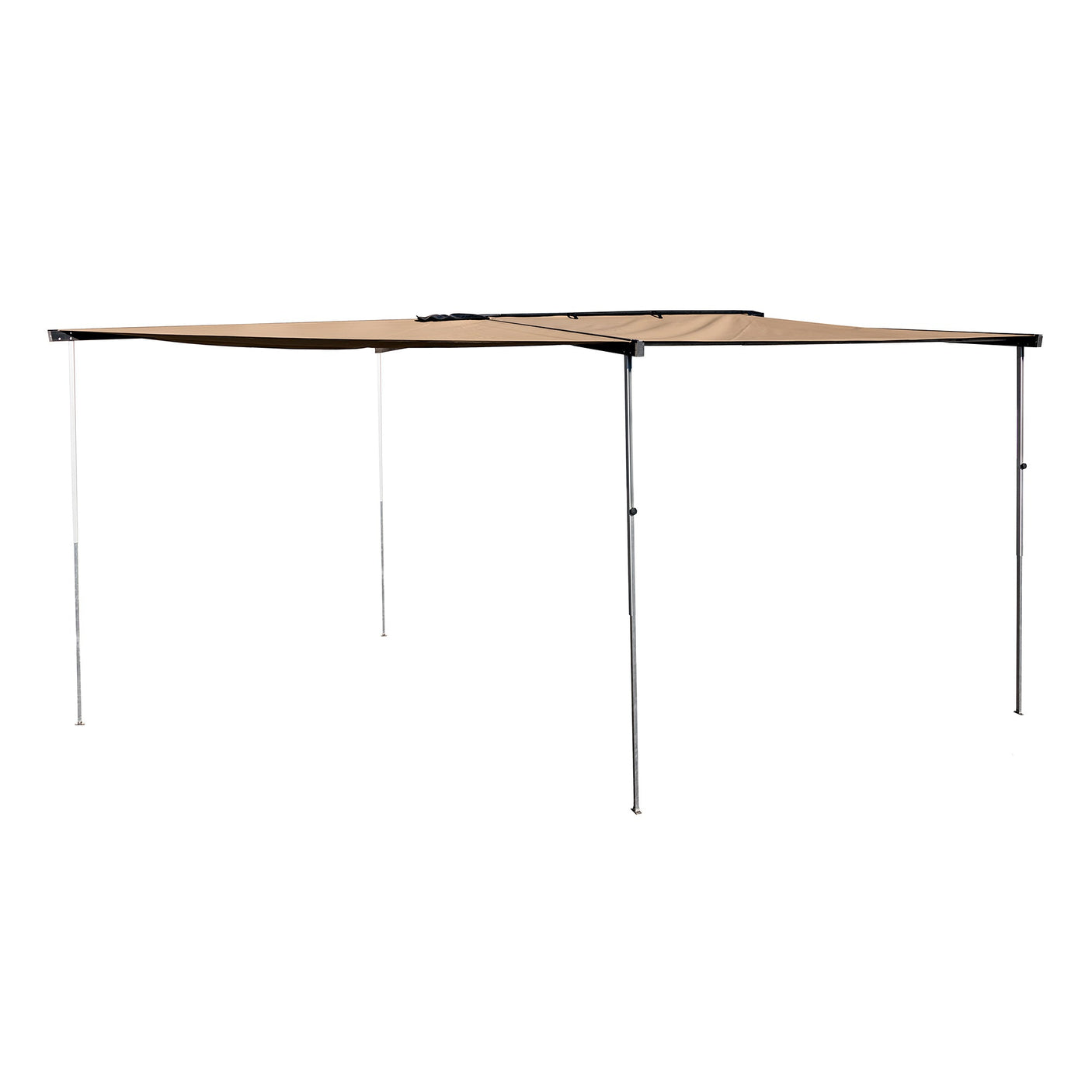

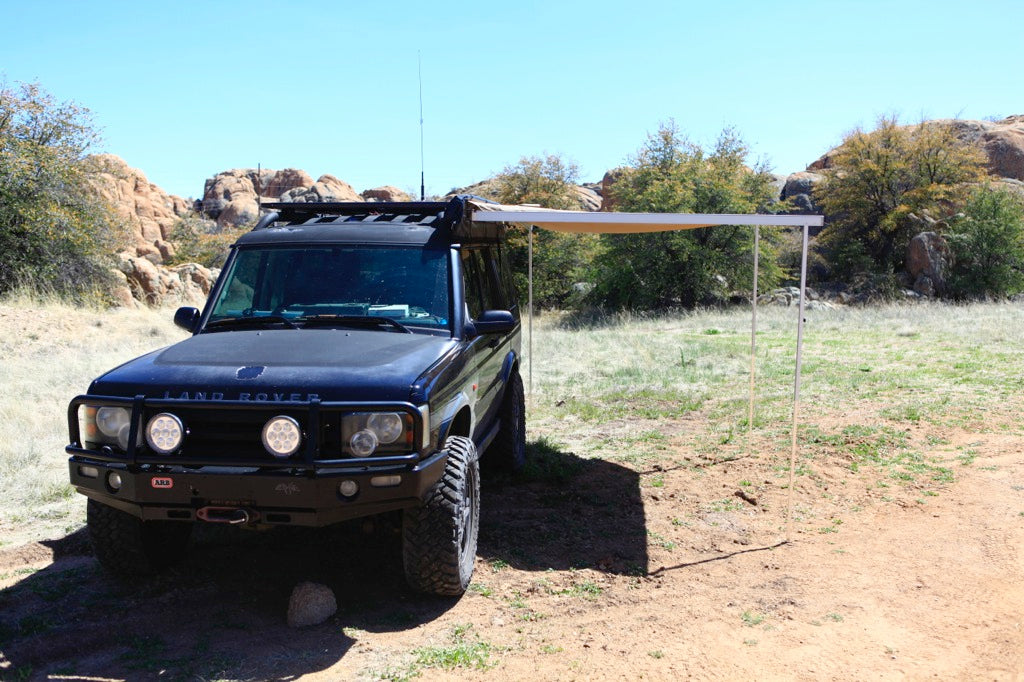

The Eezi-Awn Manta 270 Awning is the largest bag awning in Eezi-Awn's line, delivering over 100 ft² of 270° freestanding coverage around the back and side of your vehicle. Two larger triangular panels and one square center panel create a wrap-around footprint that extends further from the vehicle than the Bat 270 — covering more ground for larger groups and extended base camps. Built from 260 gram waterproof ripstop canvas with a 700 gram UV-resistant PVC cover, and made at Eezi-Awn's Johannesburg facility. Available in Grey or Beige for left (driver) or right (passenger) side mounting.

SPECIFICATIONS

• Coverage: 100 ft² (9.25 m²)
• Weight: 50 lbs (23 kg)

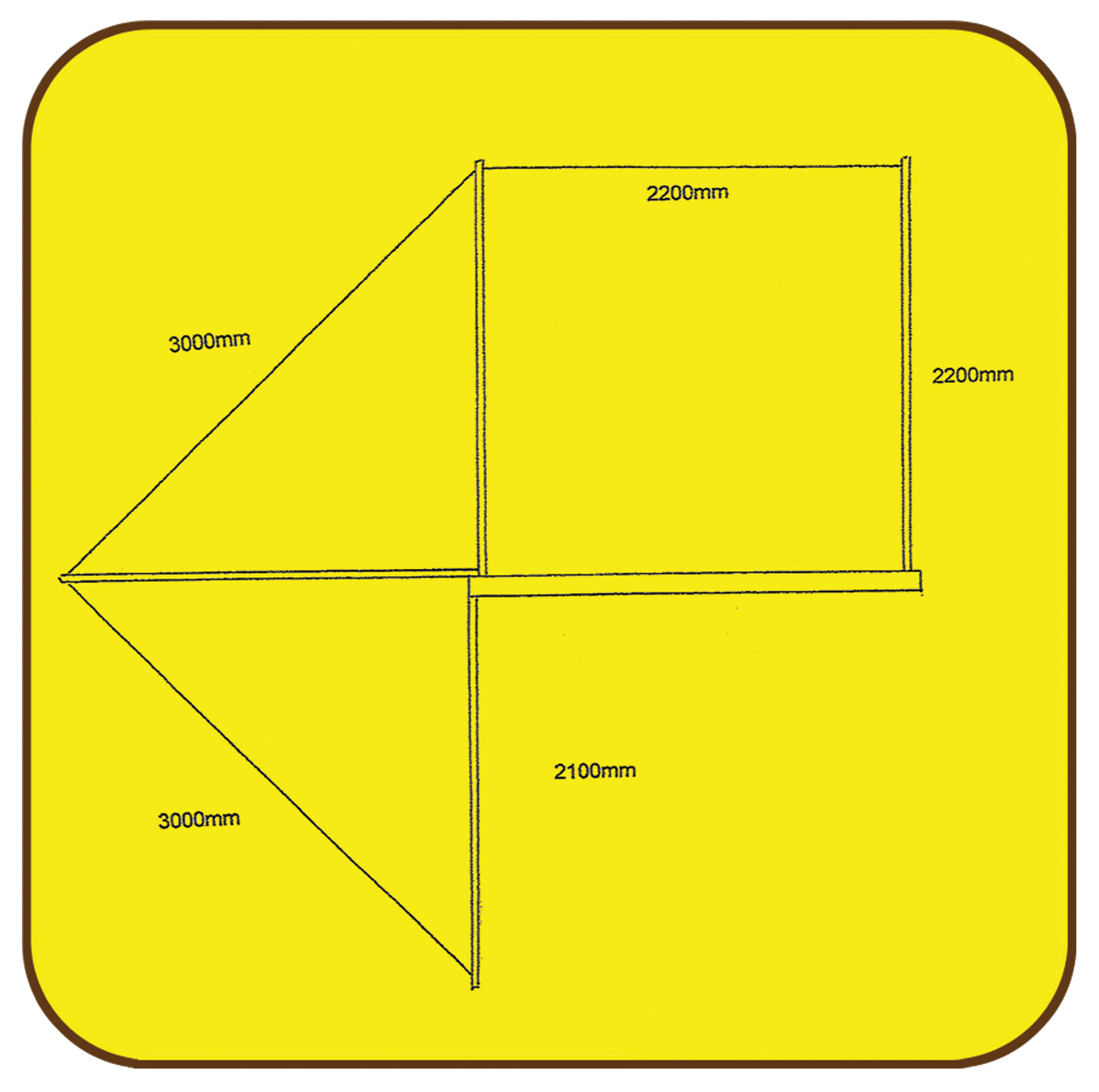

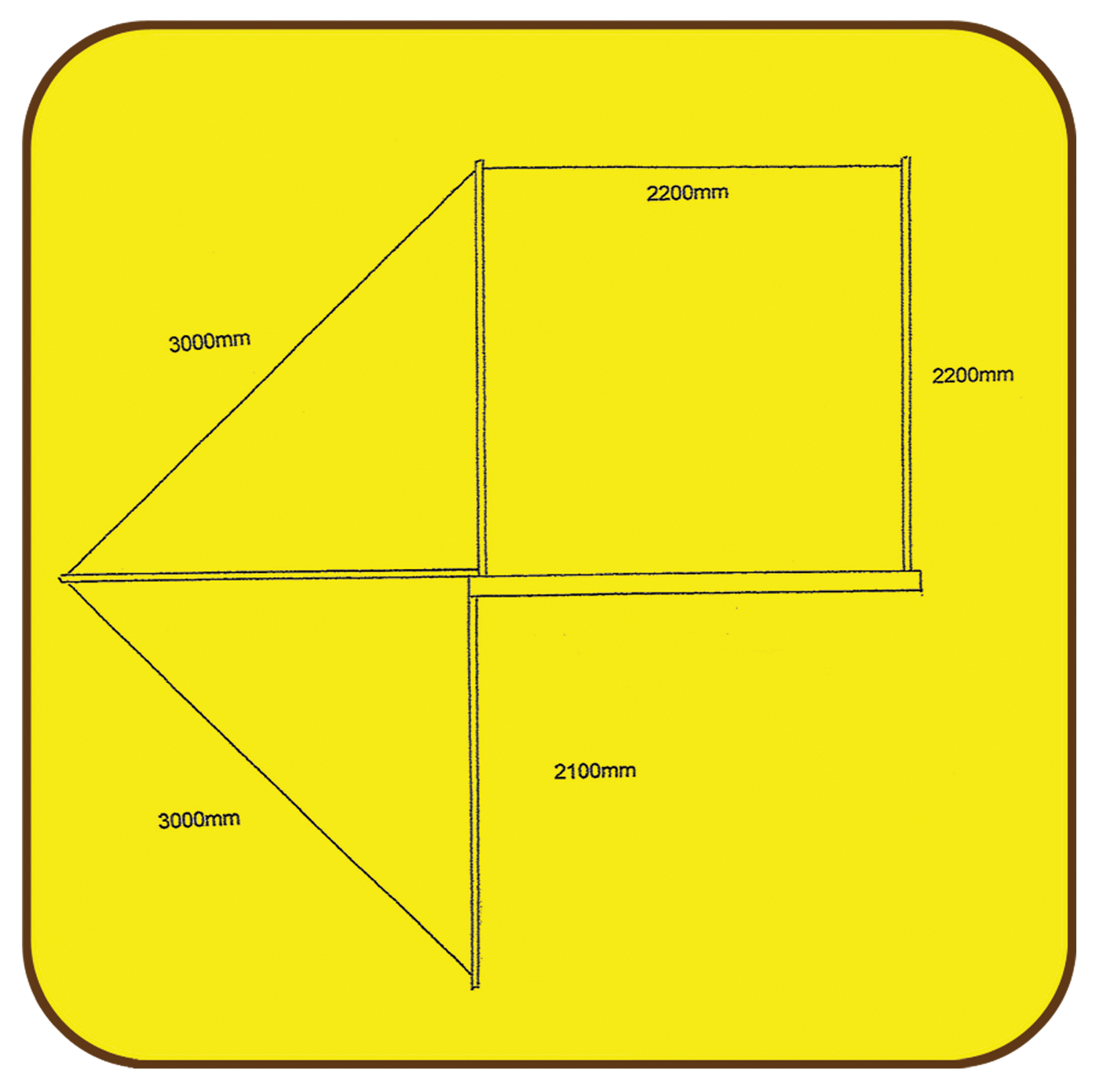

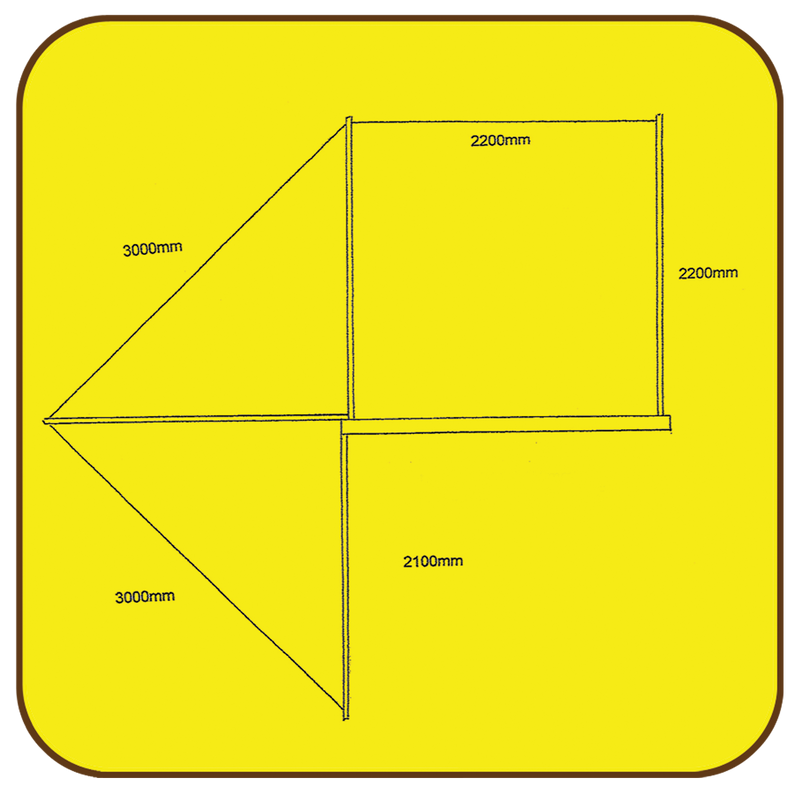

• Open Dimensions: (2) Triangular Panels — 120" × 82" × 82" (3000mm × 2100mm × 2100mm); (1) Square Panel — 86" × 86" (2200mm × 2200mm)

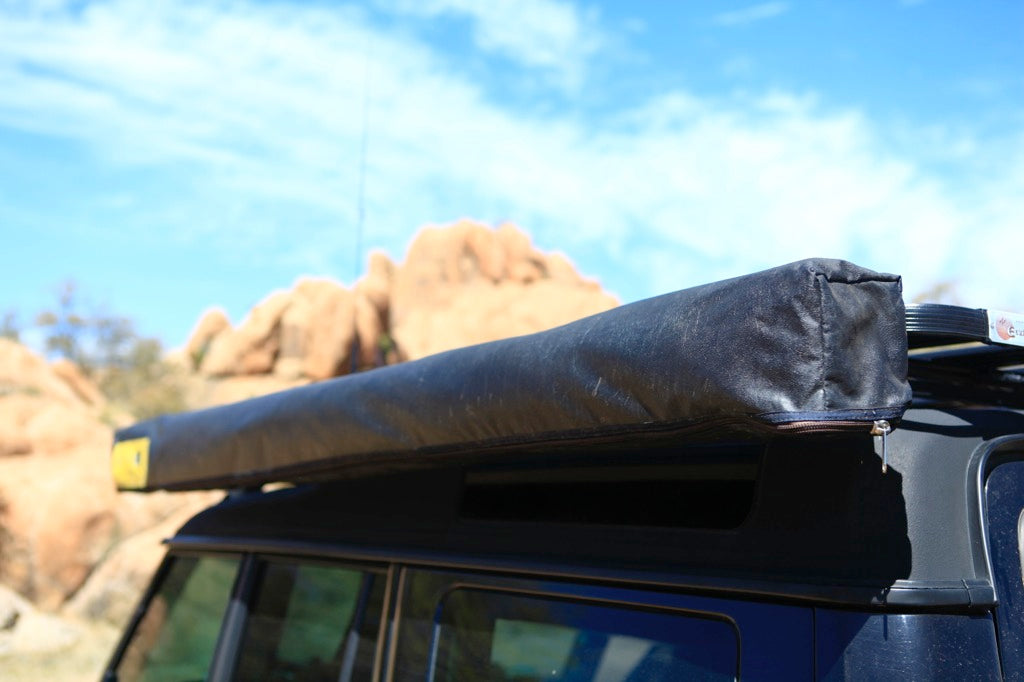

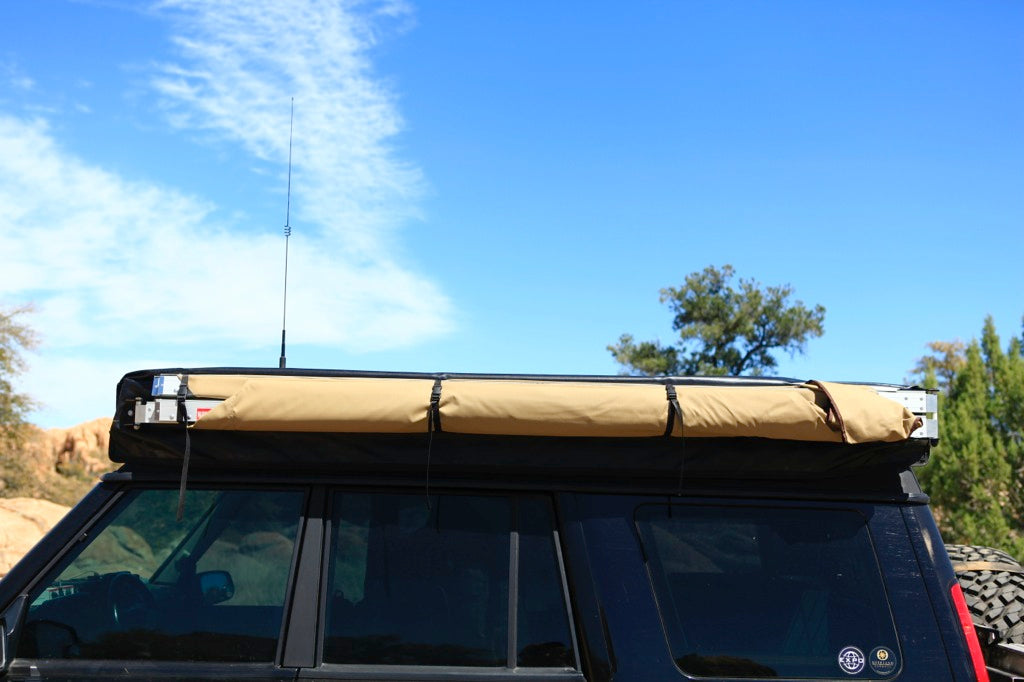

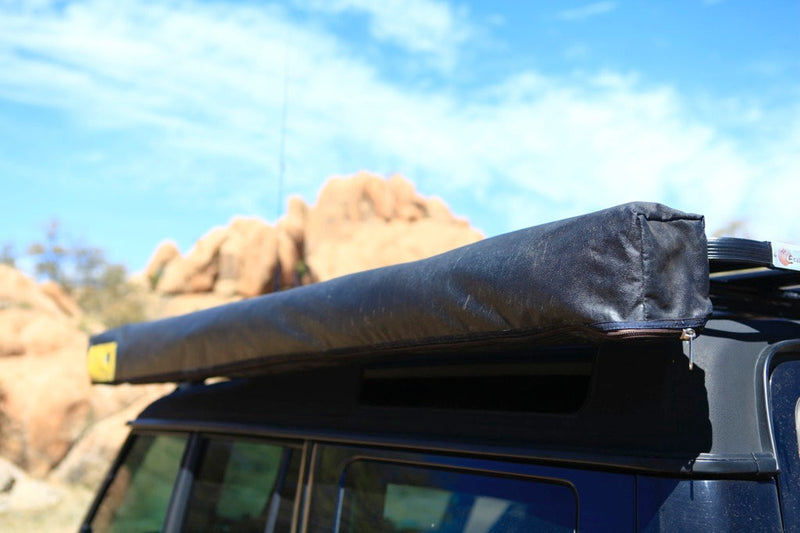

• Closed Dimensions: 95" L × 4" W × 5.25" H (2400mm × 100mm × 150mm)
• Leg Height (Fully Extended): 92" (2300mm)
• Orientation: Left (Driver Side) or Right (Passenger Side)
• Awning Material: 260 gram Waterproof Ripstop Canvas

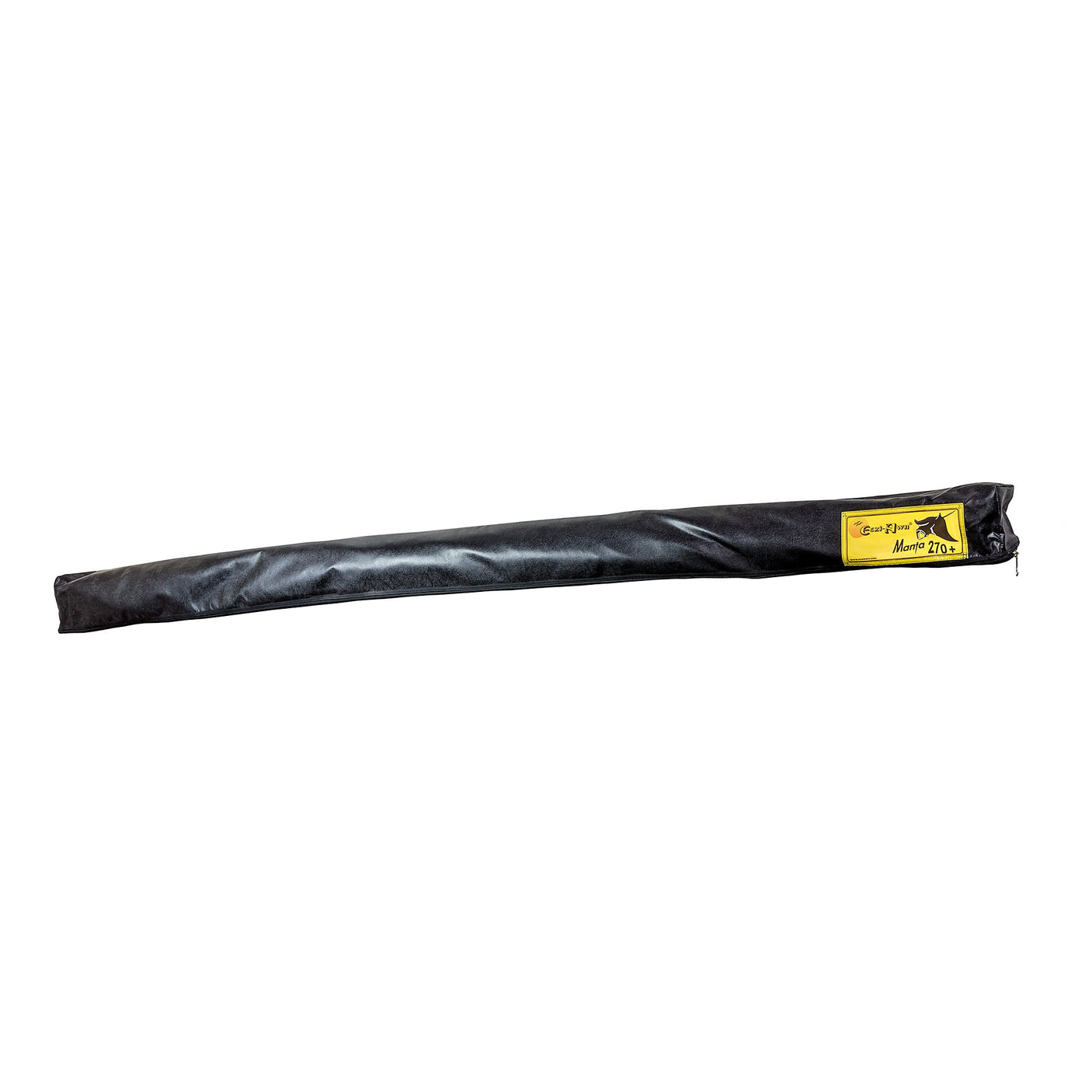

• Cover Material: Black, 700 gram UV-Resistant Heavy Duty PVC
• Color Options: Grey or Beige
• Origin: Johannesburg, South Africa

Note: Freestanding in no wind conditions. Staking down at the base of legs in an X pattern is strongly recommended at all times.

KEY FEATURES

• Largest Coverage in the Eezi-Awn Line: At 100 ft², the Manta 270 creates more covered ground than any other Eezi-Awn bag awning — the two extended triangular panels and square center section push coverage further from the vehicle than the Bat 270's geometry.

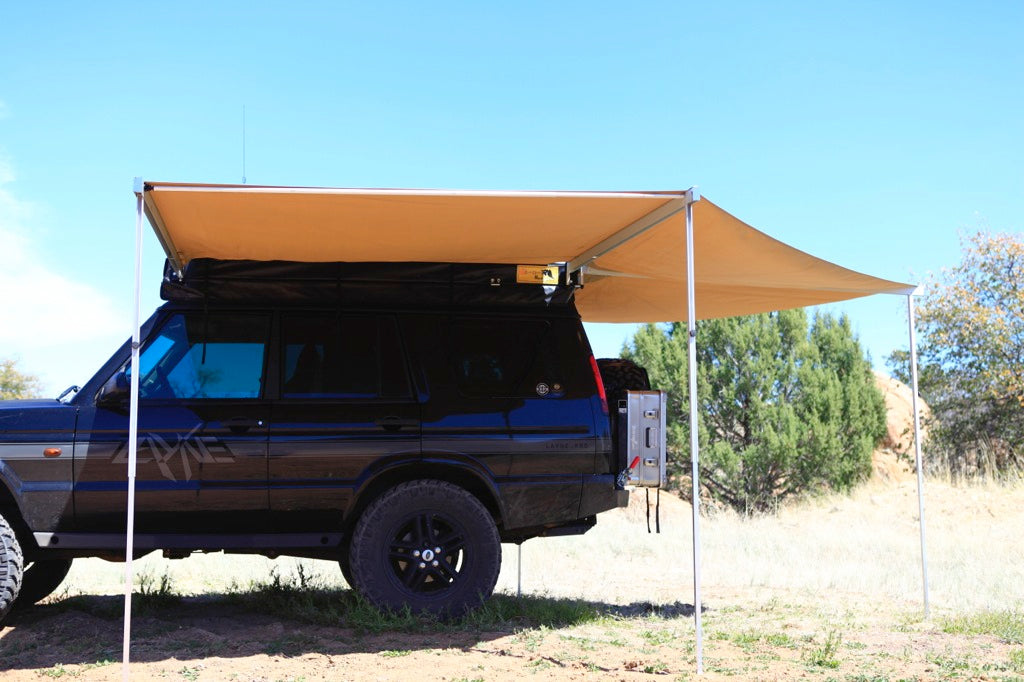

• 270° Wrap-Around Footprint: Panels deploy from the side and around the rear of the vehicle in a geometry purpose-built for group camp setups — cooking, seating, and gear areas all under cover simultaneously.
• Solo One-Minute Deployment: Despite its larger footprint, the Manta 270 deploys and stows by one person in under 60 seconds using the same self-contained rafter arm system as the Bat 270.
• 260 Gram Waterproof Ripstop Canvas: The same canopy material spec used across the Bat, Dragonfly, Swift, and Lite — waterproof, UV-resistant, and built for repeated expedition use.

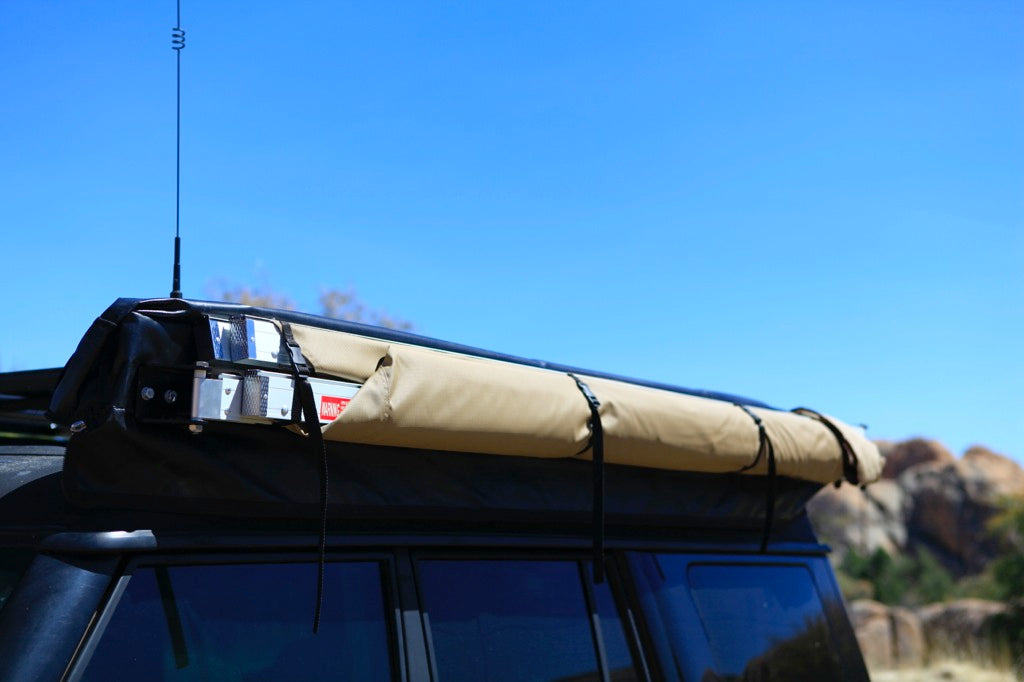

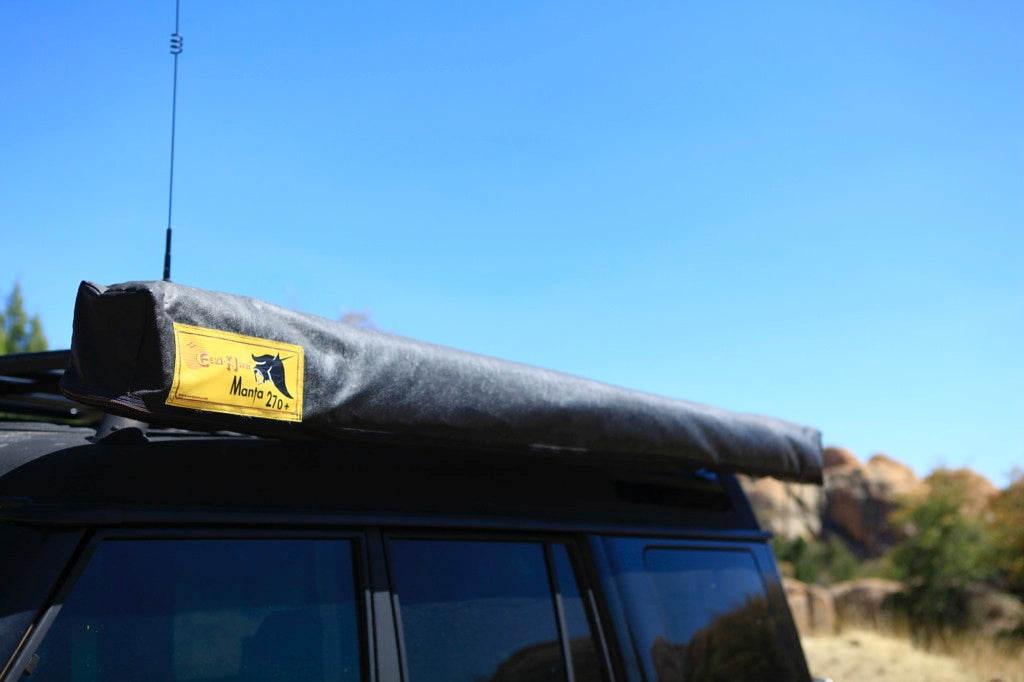

• 700 Gram UV-Resistant PVC Cover: Heavyweight tonneau-grade bag protects the awning during travel — meaningful on vehicles that accumulate serious trail miles between uses.
• Wall Set Compatible: The Manta 270 Wall Set (sold separately) encloses the full 100 ft² footprint into the largest standing-height enclosed shelter in the Eezi-Awn awning line — one door and two windows.

IDEAL FOR

• Groups of two to four on extended trips where 100 ft² of covered space is used as a primary living area — cooking, dining, and gear management all happen under the Manta simultaneously.
• Multi-day base camps where the additional panel length beyond the Bat 270 meaningfully improves the usable footprint for chairs, tables, and storage.
• Overlanders running the Manta Wall Set who want the maximum enclosed shelter footprint achievable from a single vehicle-mounted awning system.
• Builds where the vehicle is large enough to support the Manta's closed length — the 95" bag length requires an appropriate roof rack or mounting point.

IN THE BOX

• Manta 270 Awning (canopy, PVC cover, rafter arms, and adjustable legs)

Additional mounting hardware may be required depending on your roof rack. The Manta 270 Wall Set is available separately.

COMPATIBILITY

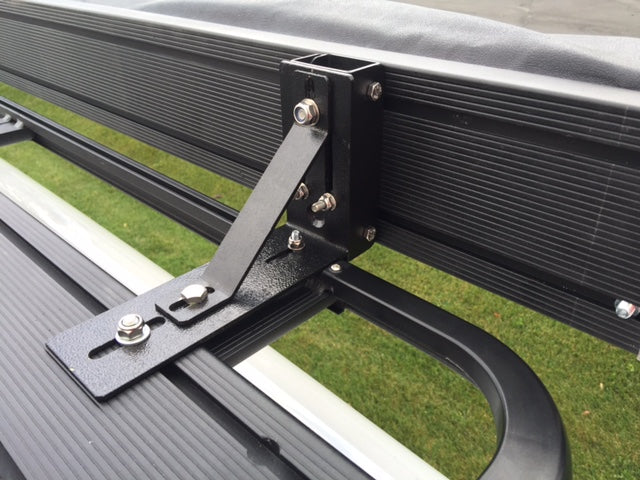

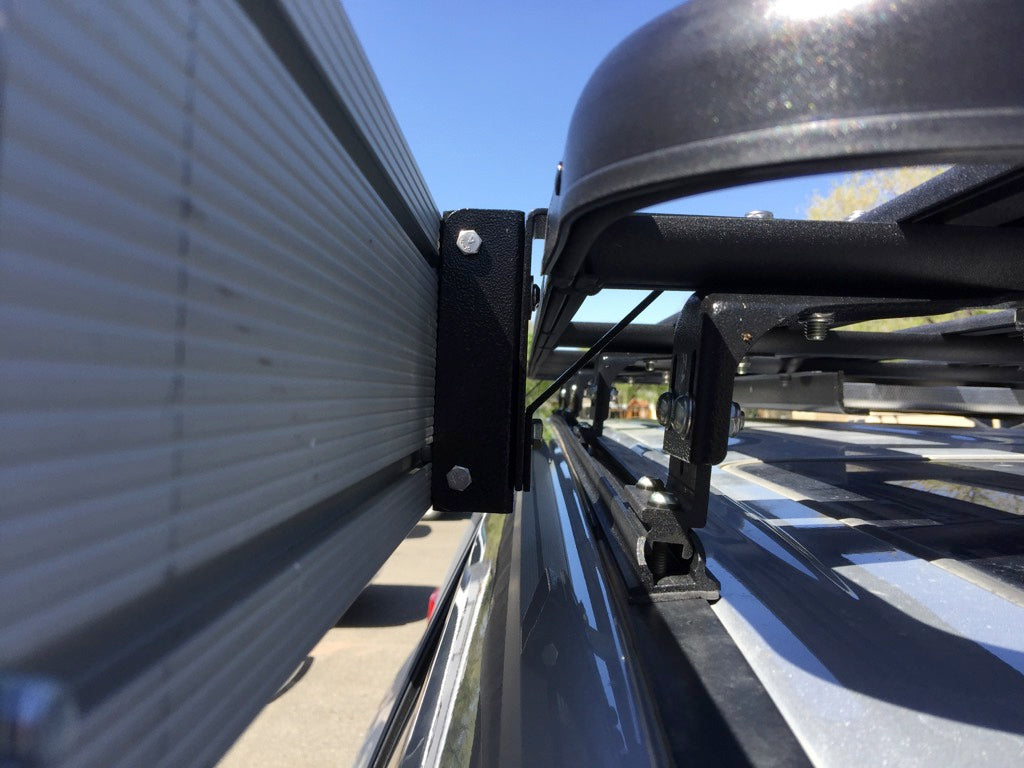

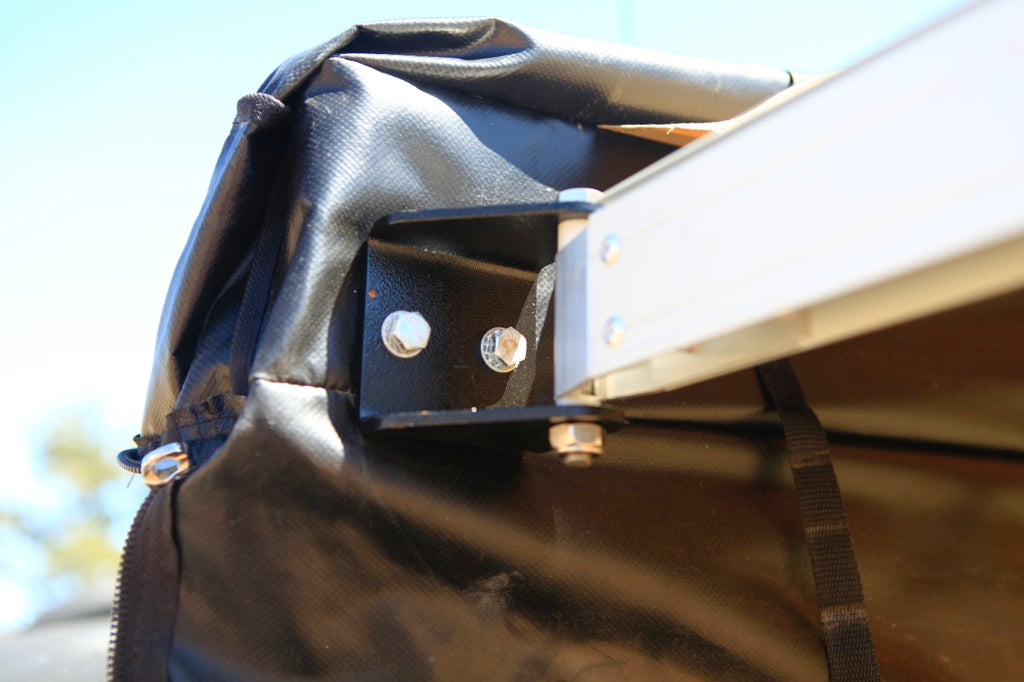

 Bat/Manta/Swift/Lite/Dragonfly Awning Mount (sold separately). It is natively compatible with the Eezi-Awn K9 Roof Rack. Orientation (Left/Driver or Right/Passenger) must be selected at purchase. The Manta 270 Wall Set is available separately.
