Eezi Awn
Dragonfly Mini 180 Awning

Hand-built in Johannesburg, the Eezi-Awn Dragonfly Mini 180 Awning delivers full 180° wrap-around coverage in a shorter, lighter package purpose-built for modern mid-size vehicles. It uses the same panel geometry and 260g waterproof UV ripstop canvas as Eezi-Awn’s full-size Dragonfly 180, scaled to fit platforms where a 97" (2464mm) awning would overhang or complicate mounting.

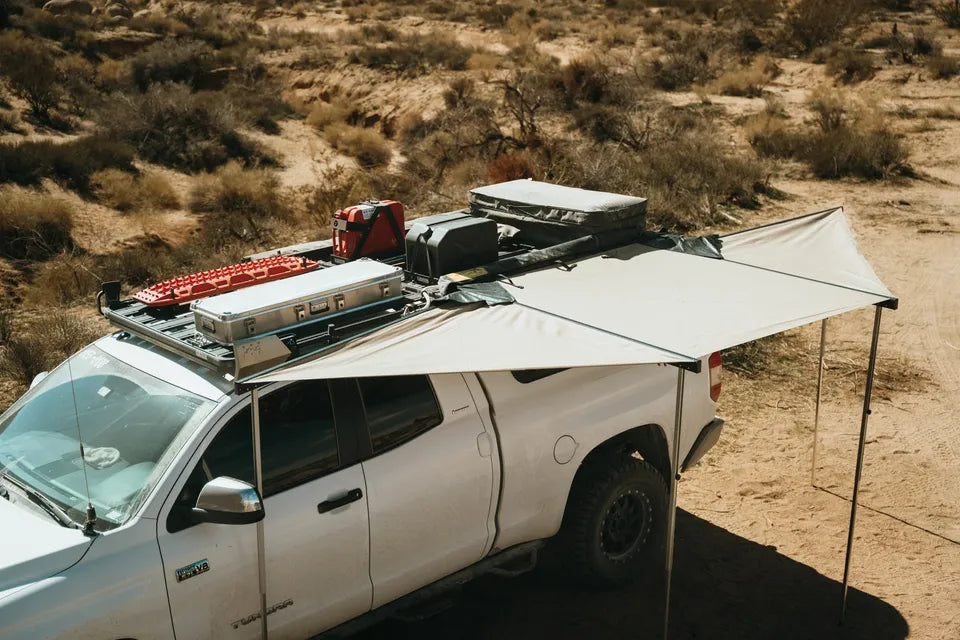

The Mini 180 provides 5.8m² (62.35 ft²) of side and rear shelter from a single mounting point, with two triangular panels and one rectangular panel creating a defined work and living area at camp. A self-contained aluminum framework with twist-lock deployment brings the awning from stowed to tensioned in under a minute, with integrated adjustable legs that extend to 2330mm (92") for variable vehicle heights and uneven ground.

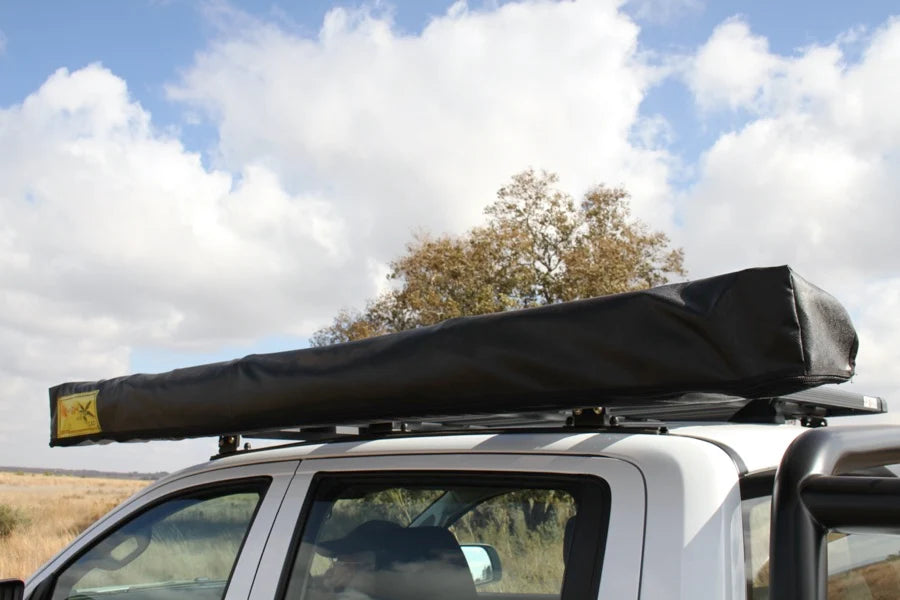

The canopy is protected in transit by a 700g UV-resistant PVC travel cover in Matte Black, the same tonneau-grade specification used across the Dragonfly line. Orientation is selectable for left or right side mounting, and the awning is designed to bolt directly to the Eezi-Awn K9 Roof Rack or to most quality aftermarket racks using the Eezi-Awn Bat/Manta/Swift/Lite/Dragonfly Awning Mount (sold separately). This makes the Mini 180 a clean fit within a broader Roof Architecture that may also include a rooftop tent, lighting, and recovery tools.

In the field, the Dragonfly Mini 180 is well-suited to two-person Loadouts where you want reliable shade and weather protection without the footprint or weight of a 270° awning. It is particularly effective on 4Runners, Tacomas, Broncos, and similar platforms where rear doors, swing-outs, or rooftop tents can conflict with a full 270° wrap. For stability, we strongly recommend staking the legs in an X pattern any time the awning is deployed, regardless of wind conditions.

Specifications
Coverage: 5.8m² (62.35 ft²)
Weight: 21kg (45 lbs)
Open Dimensions:
(2) Triangular panels: 2400mm × 1700mm × 1700mm (95" × 67" × 67")
(1) Rectangular panel: 1700mm × 1700mm (67" × 67")
Closed Dimensions: 1980mm L × 150mm W × 200mm H (78" L × 7" W × 8" H)
Mounting Extrusion: 1800mm L × 125mm H (71" L × 5" H)
Leg Height (fully extended): 2330mm (92")
Awning Material: 260g waterproof UV ripstop canvas
Travel Cover: Matte Black 700g UV-resistant heavy-duty PVC
Color Options: Slate or Desert Sand
Mounting Orientation: Left-hand or right-hand (select at purchase)
Origin: Manufactured in Johannesburg, South Africa
