The Eezi-Awn Dragonfly 180 Awning is a freestanding 180° bag awning that delivers 97.5 ft² of wrap-around coverage to the side and rear of your vehicle — the largest coverage area of any Eezi-Awn bag awning at 180°. The self-contained aluminum framework locks into position with a simple twist and deploys in under a minute. Built from 260 gram waterproof UV ripstop canvas with a 700 gram UV-resistant PVC cover, and made at Eezi-Awn's Johannesburg facility. Available in Grey or Beige for left or right side mounting.

SPECIFICATIONS

• Coverage: 97.5 ft² (9.05 m²)
• Weight: 55 lbs (25 kg)

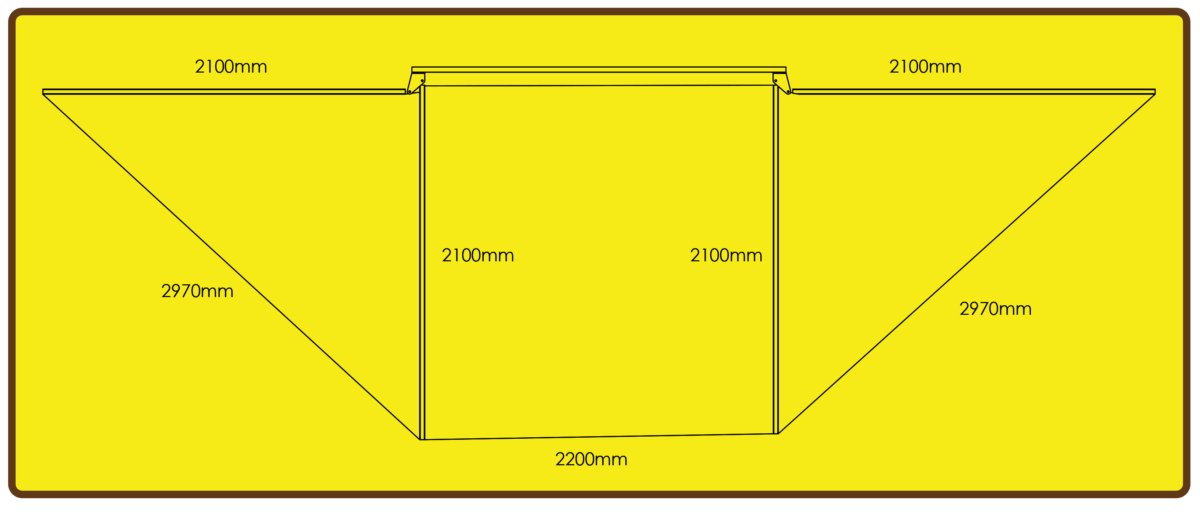

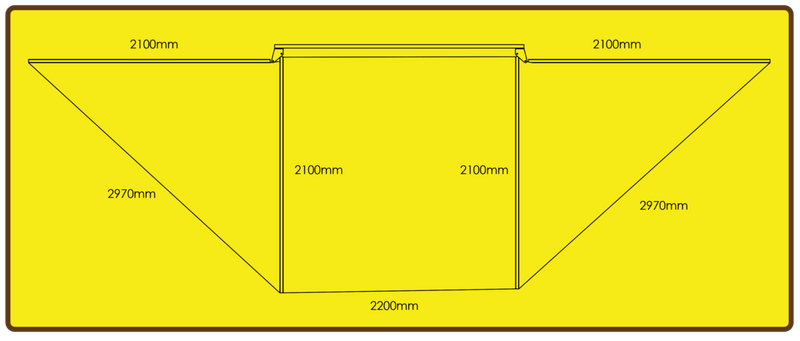

• Open Dimensions: (2) Triangular Panels — 117" × 83" × 83" (2970mm × 2100mm × 2100mm); (1) Rectangle Panel — 83" × 86" (2100mm × 2200mm)
• Closed Dimensions: 97" L × 7" W × 8" H (2465mm × 150mm × 200mm)
• Mounting Extrusion: 90" L × 5" H (2285mm × 125mm)
• Leg Height (Fully Extended): 92" (2330mm)
• Awning Material: 260 gram Waterproof UV Ripstop Canvas
• Cover Material: Black, 700 gram UV-Resistant Heavy Duty PVC
• Color Options: Grey or Beige
• Origin: Johannesburg, South Africa

Note: Freestanding in no wind conditions. Staking down at the base of legs in an X pattern is strongly recommended at all times.

KEY FEATURES

• 180° Wrap-Around Coverage: Two triangular panels and one rectangle panel create a half-wrap footprint around the side and rear of the vehicle — covering the cooking zone and camp area from a single mount point without the vehicle orientation constraints of a 270° awning.
• Largest 180° Footprint in the Line: At 97.5 ft², the Dragonfly 180 covers more ground than any other Eezi-Awn 180° awning — nearly matching the Manta 270's coverage with a simpler deployment geometry.
• Twist-Lock Self-Contained Framework: The aluminum frame rolls out and locks in one motion — same mechanism as the Lite Awning but scaled up to the full Dragonfly footprint. No secondary parts or assembly steps.
• Freestanding with Adjustable Legs: Integrated legs extend to 92" (2330mm) and are stake-compatible — the Dragonfly stands independently on any terrain without leaning against the vehicle.
• 260 Gram Waterproof UV Ripstop Canvas: Same construction as the Bat 270 and Manta 270 — waterproof, UV-resistant, and built for extended use across varied climates.
• 700 Gram PVC Cover: Heavyweight tonneau-grade bag protects the rolled canopy during travel.

IDEAL FOR

• Overlanders who want near-270° coverage without committing to a 270° awning — the Dragonfly 180's 97.5 ft² rivals the Bat 270 from a 180° geometry.
• Vehicles where side and rear coverage is the priority but a 270° wrap would interfere with rear door access or campsite layout.
• Multi-day base camps for two to four people where the full 180° footprint creates a defined cooking and living space behind the vehicle.
• Builds running a K9 Roof Rack or compatible rack with a vertical mounting surface.

IN THE BOX

• Dragonfly 180 Awning (canopy, PVC cover, rafter arms, and adjustable legs)

Additional mounting hardware may be required depending on your roof rack. See the Eezi-Awn Bat/Manta/Swift/Lite/Dragonfly Awning Mount for compatible options.

COMPATIBILITY

The Dragonfly 180 mounts to a vertical surface.  Bat/Manta/Swift/Lite/Dragonfly Awning Mount (sold separately). Orientation (Left or Right) must be selected at purchase.
