Stage Series 42" White Light Bar
Features
• Advanced TIR optics provide high efficiency and focus
• High-intensity automotive-type LEDs with pure white color
• Available in Combo beam pattern
• Slim 42mm housing for low-profile fitment
• Durable matte powdercoated extrusion

This lightbar is light strapping the sun to your hood!

* Please note: If you can see the ad, the item is available unless marked "Sold" or "Pending". If you ask “is this available”, you may be ignored and/or blocked.
Please indicate in your first response, where you are located and when you can pick the item(s) up. If you make a lower offer, it will be considered but may be countered or not accepted.

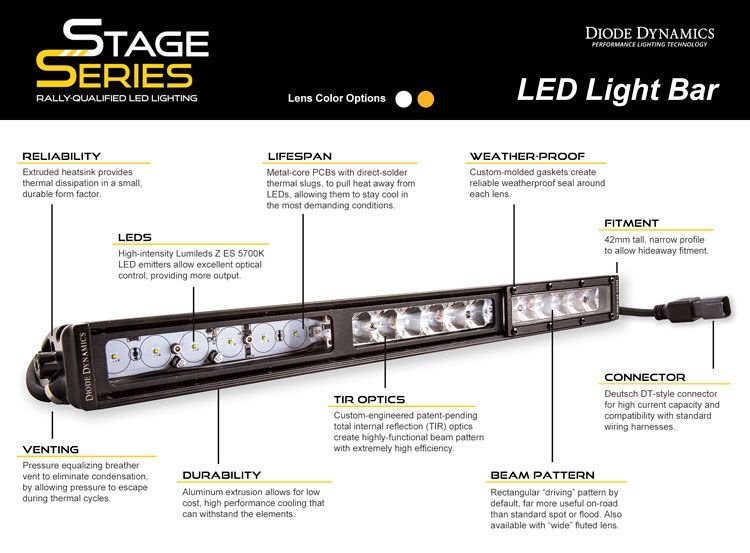

Inspired by the needs of a professional rally driver, this light bar was designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package.

Compact.
The lightbar is based on a narrow-profile extruded housing, to allow fitment in small and tight areas. At less than 42mm tall, they'll fit in many places a traditional dual-row light bar won't, while cutting total weight as well. The heatsink design also drastically reduces wind noise, and does not whistle in the wind like many generic housings.

Focused.

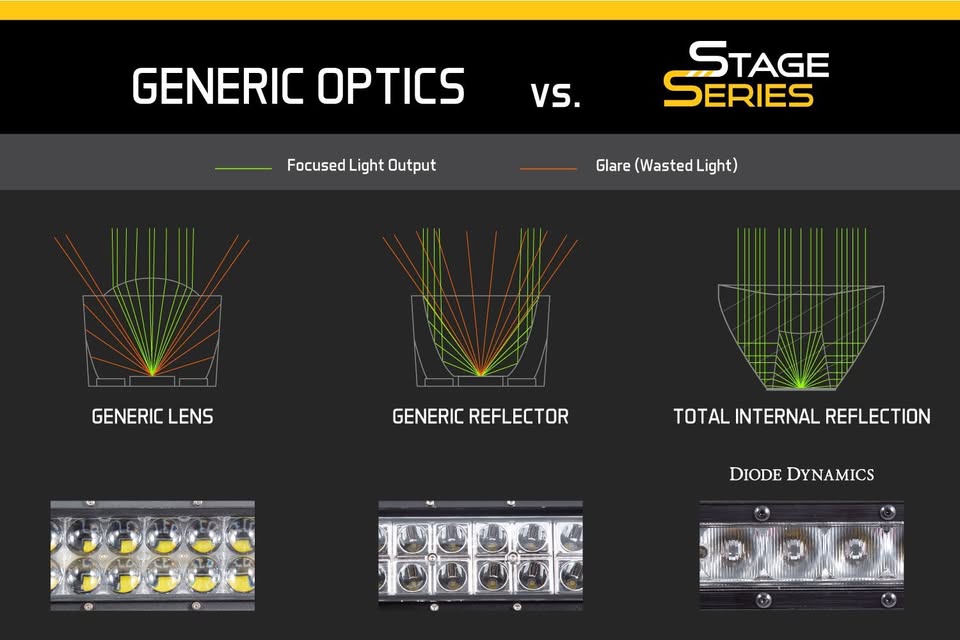

The compact size doesn't mean they're short on power! Thanks to the high-intensity Lumileds LED chips, coupled with our U.S. PATENT PENDING total internal reflection (TIR) optic, the total intensity of the Stage Series is far higher than a standard, generic light bar using basic optics or reflectors. Standard optics lose light internally, and to glare, spreading a little bit of light in every direction. Instead, the TIR optic in the Stage Series collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

A Youtube video to learn more:

Functional Pattern.

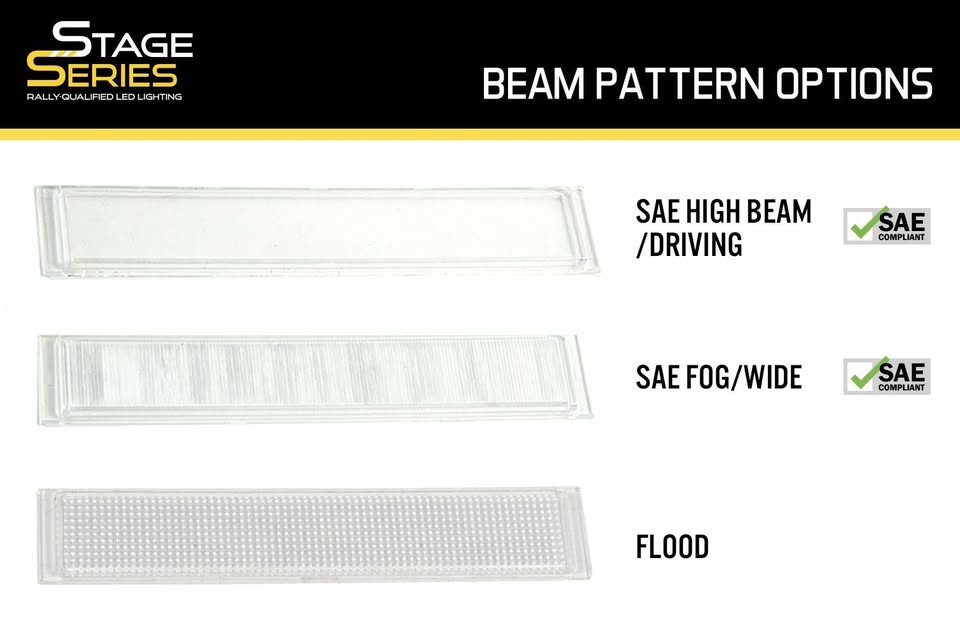

All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!
The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating area around it in a full 80Wx50H degree spread. The Stage Series 42" Combo Light Bar features five driving lenses in the middle with two flood lenses on the outer edges.

Change it up.
Each lightbar is based on 6-inch segments. Each segment is sealed with an individual lens and a double-wall seal. This makes them more weather tight than a large, single seal, and it also allows you to change up the outer lens to suit your needs. With just a few screws, you can replace the outer lens with a new one to change the beam pattern or color. Replacement lenses are included.

Simple connections.
All Stage Series LED lighting products use a standard DT type Deutsch-style connector, and come with a 6-inch pigtail, with bare leads. You can wire yourself, use an off-the-shelf Deutsch wire harness, or select an optional Diode Dynamics wire harness. If you choose to use a Diode Dynamics wire harness on a 24V system, you will need to replace the relay on the harness with a 24V relay.

Proven Reliability.

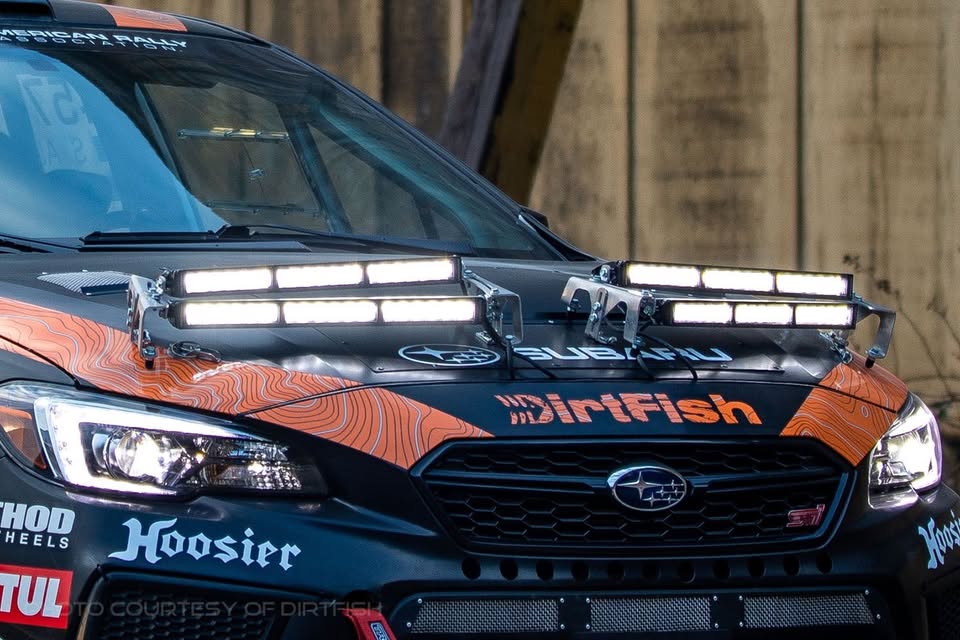

Stage Series lighting has been tested for long-term operation from -40 to 185 degrees F, vibration, moisture intrusion, and corrosion. All of these tests are completed to SAE/DOT standards, just like factory components. They've also been put to the test on-road, and are in-use by dozens of rally and endurance racing teams for nighttime stages and laps.

Experience.
After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. They directly assemble and engineer their own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology.

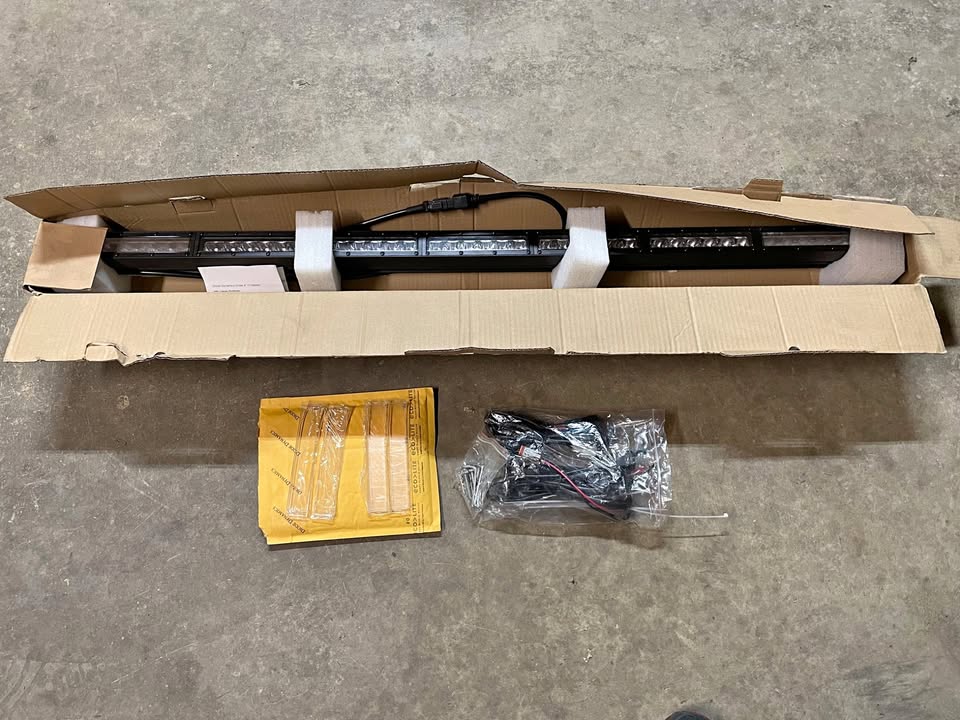

In the Box:
• One (1) LED light bar
• One (1) wire pigtail
• Two (2) replacement clear lenses
• Two (2) replacement corner lenses
• Universal bracket set (of 2)
Quantity: One (1)
Hardware:
• Two (2) M6 Hex Screws, for main mounting point
• Two (2) M5 Hex Screws, for rear mounting point

Fitment
With the included universal bracket set, this product can be installed on any make or model.
Color Temp (CCT): 6000K
Beam Angle: Combo (Driving and Flood)
Power (watts): 224
Operating Voltage: 9-24V
Current (amps @ 14V): 16
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES
Connector(s): Deutsch DT Input
Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
Cooling: Passive, heatsink
Intrusion Ratings: IP68 Waterproof

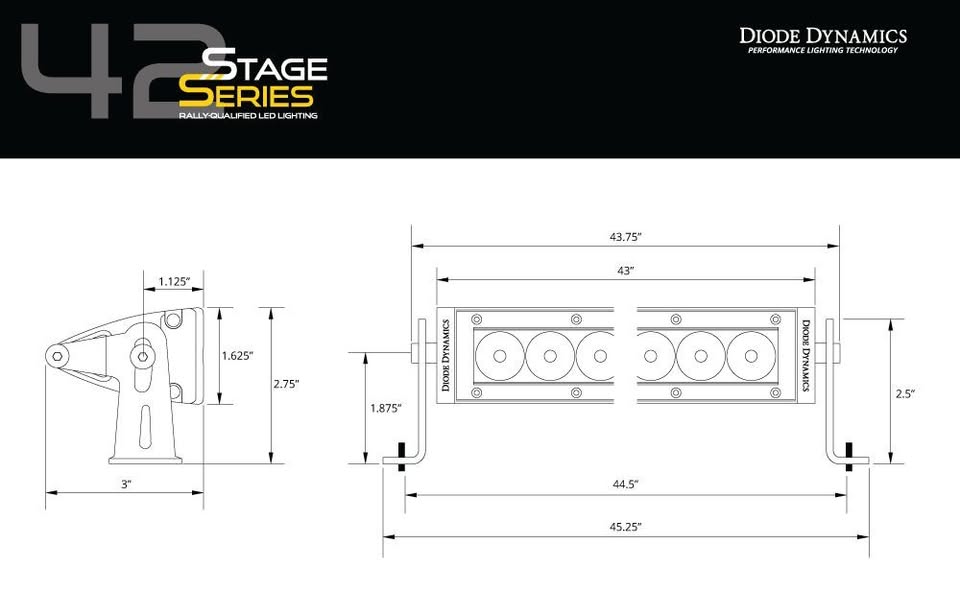

Product Dimensions (in): 43x3x1.63

~~~~~~~~~~~~~~~~~~~~~~~~~~
