Description

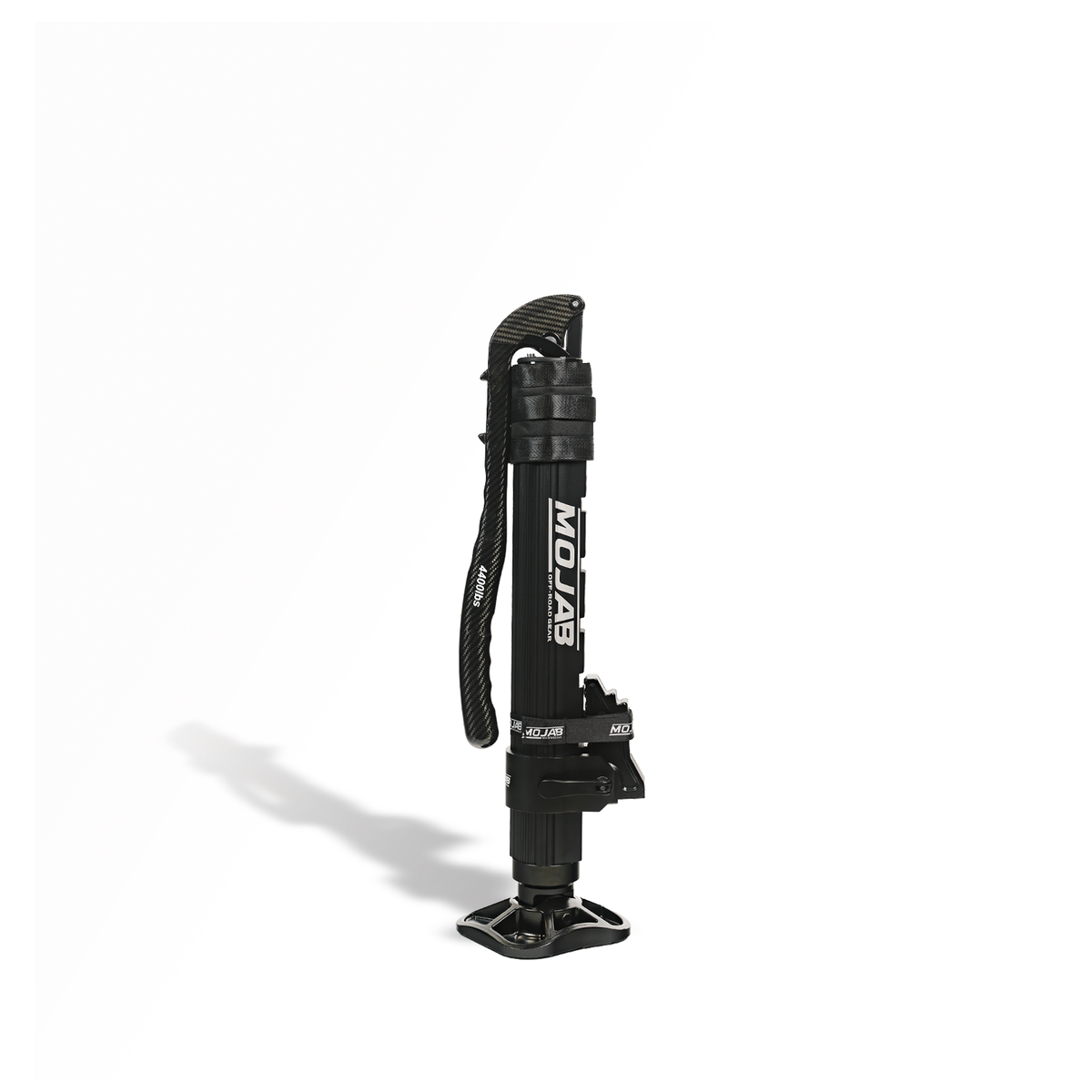

CarbonPro Compact Hydraulic Jack MLH 40''

Click here to download the manual

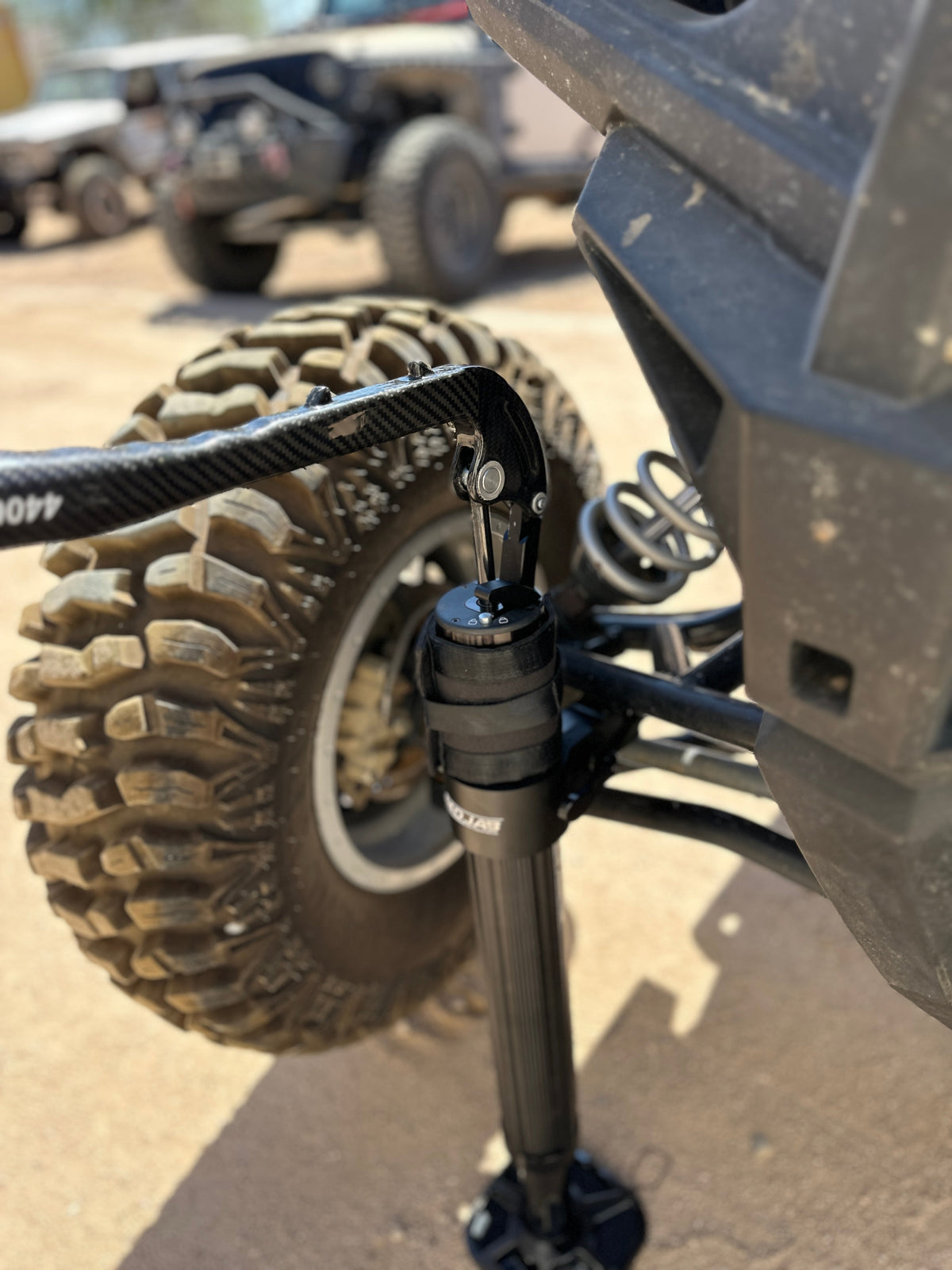

Lightweight real carbon fiber handle construction
Lockable air bleeder valve
Fast and slow lowering functions
Max. Lifting Height: 32.25''
Travel: 13.37''
Lifting Range: 6'' - 32.25''
Compressed Height: 27.1''
Extended Height: 40.8''
Weight: 19lb
Max Lifting Capacity: 4,400 lbs
Fluid: Hydraulic Mineral Oil
Fluid Capacity: 0.8quart/800ml

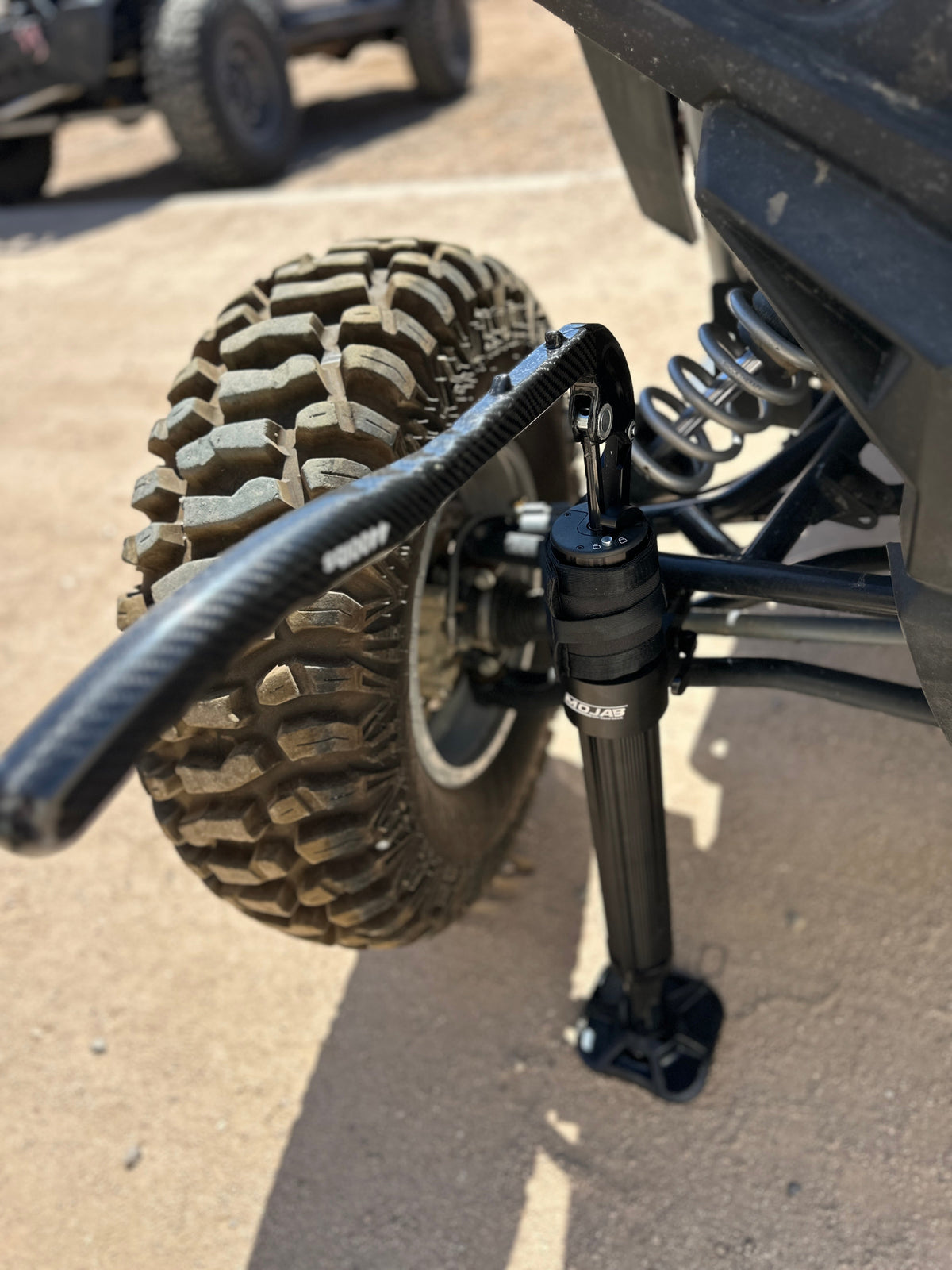

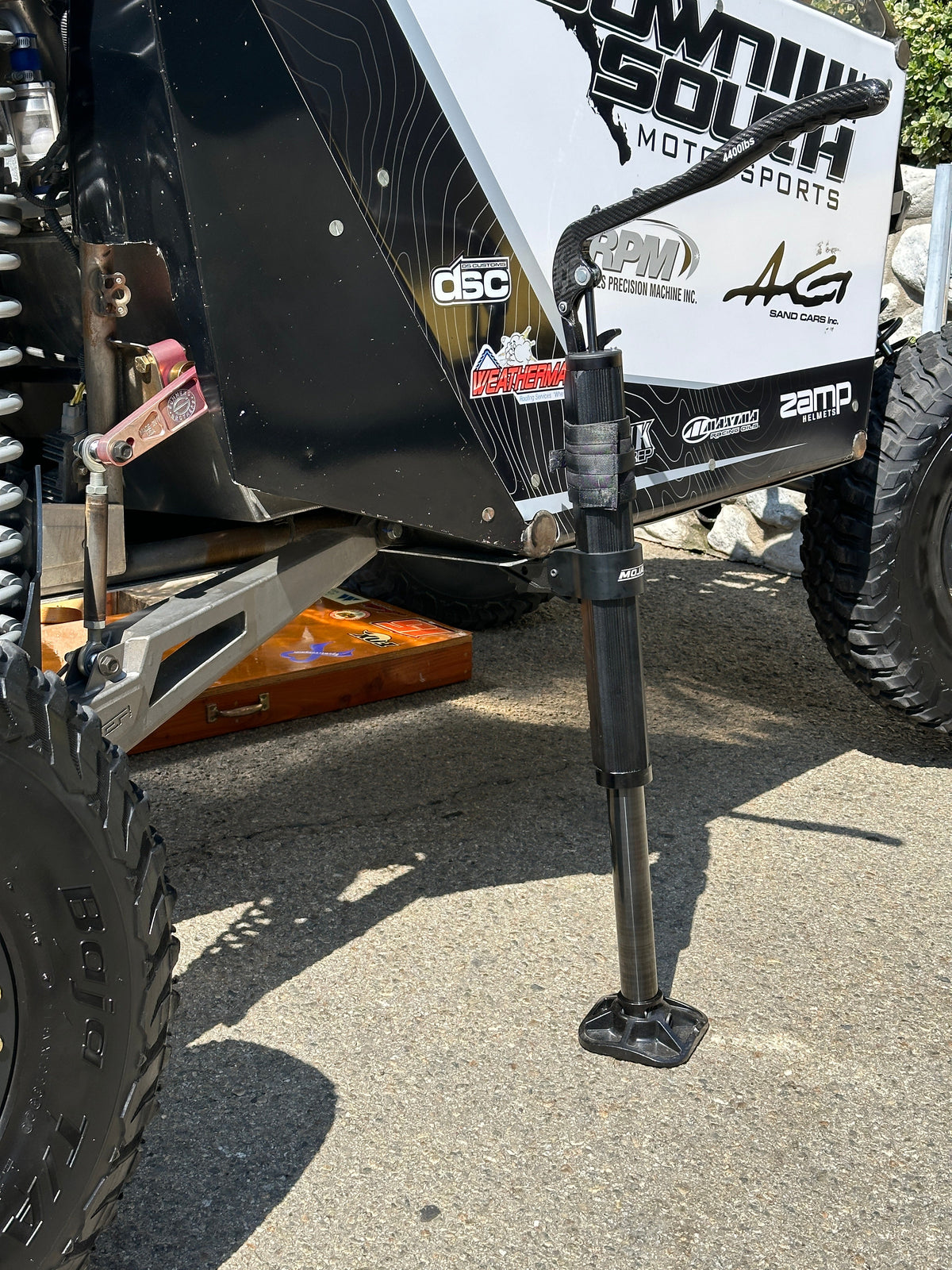

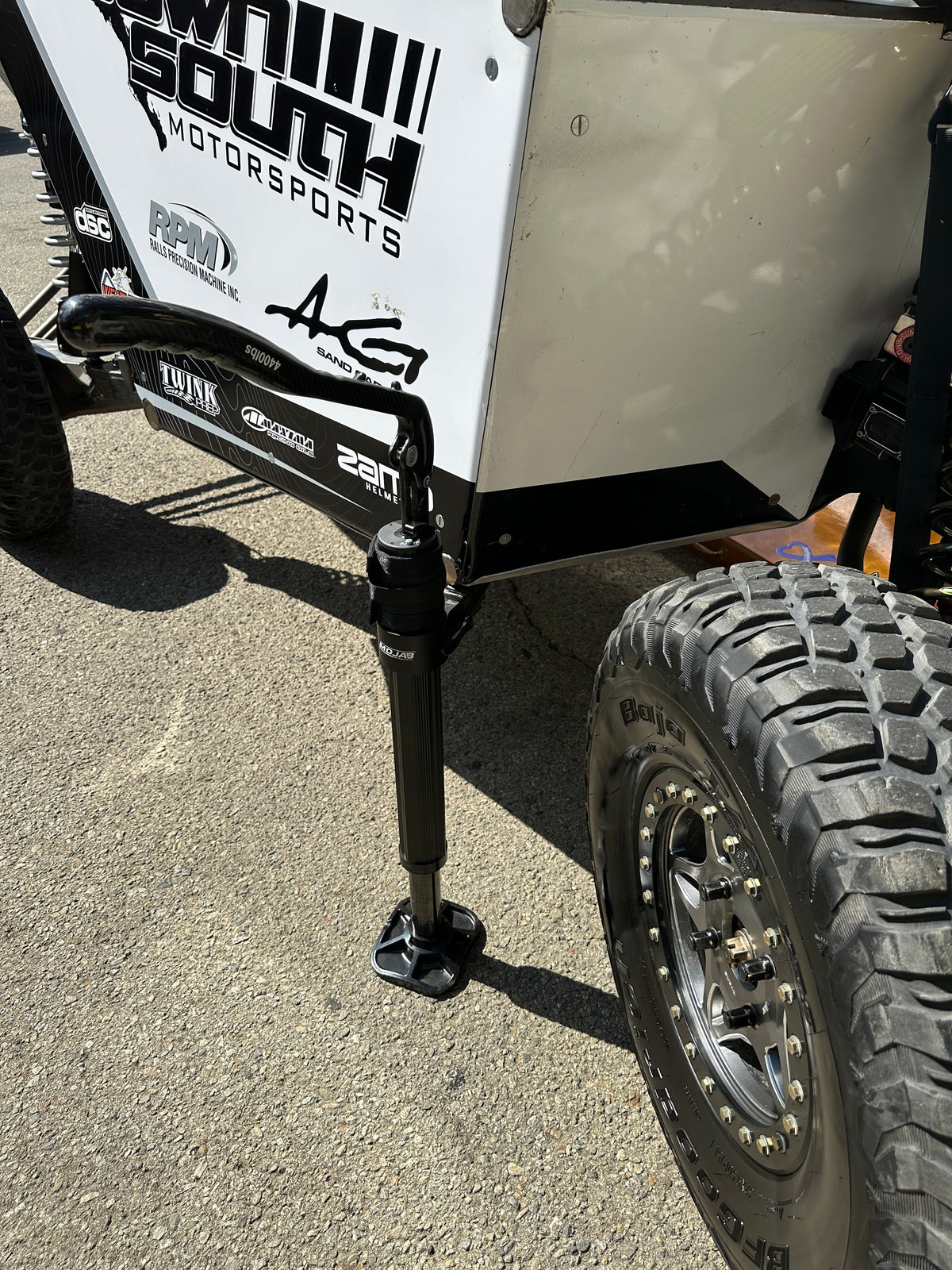

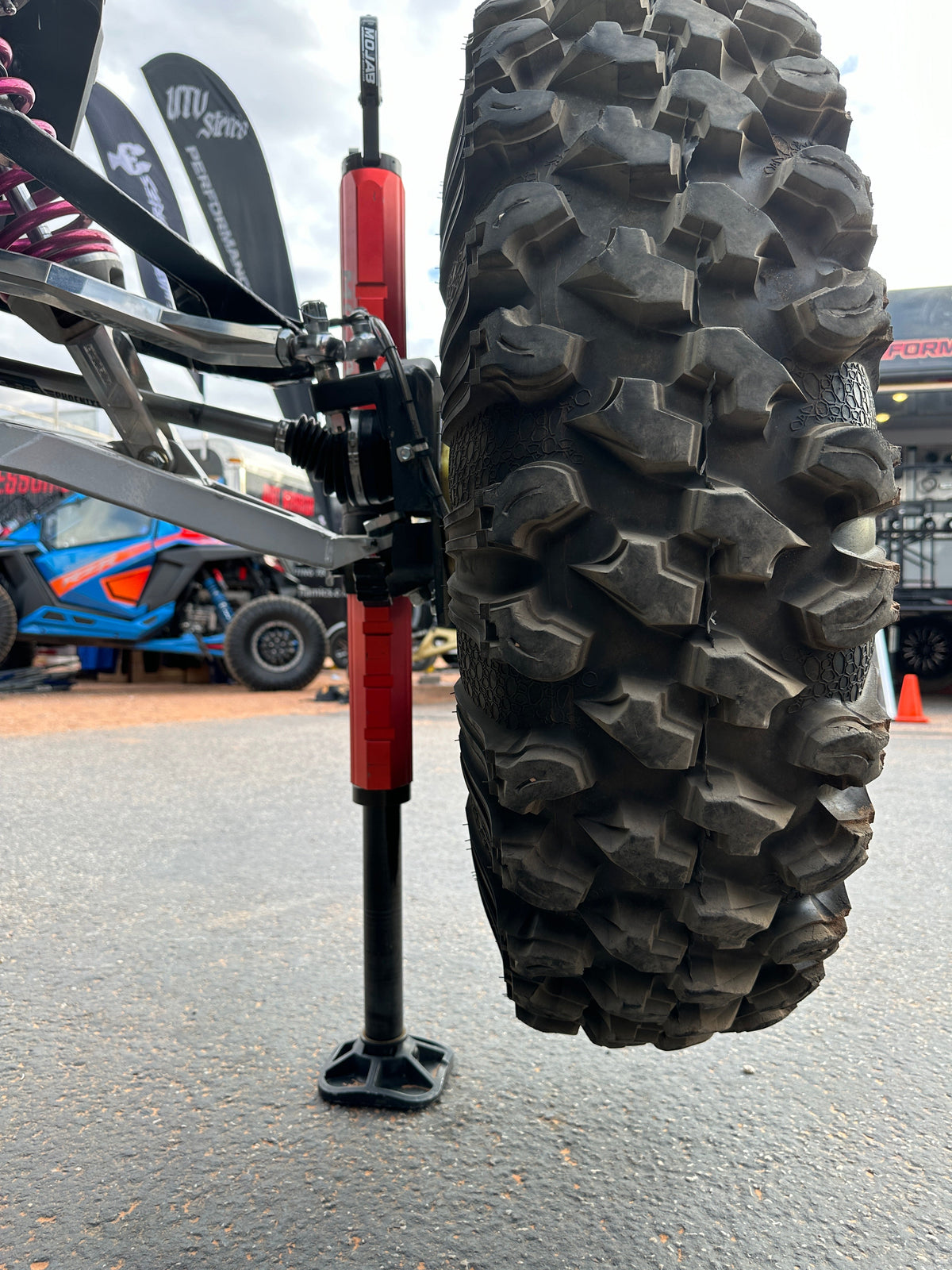

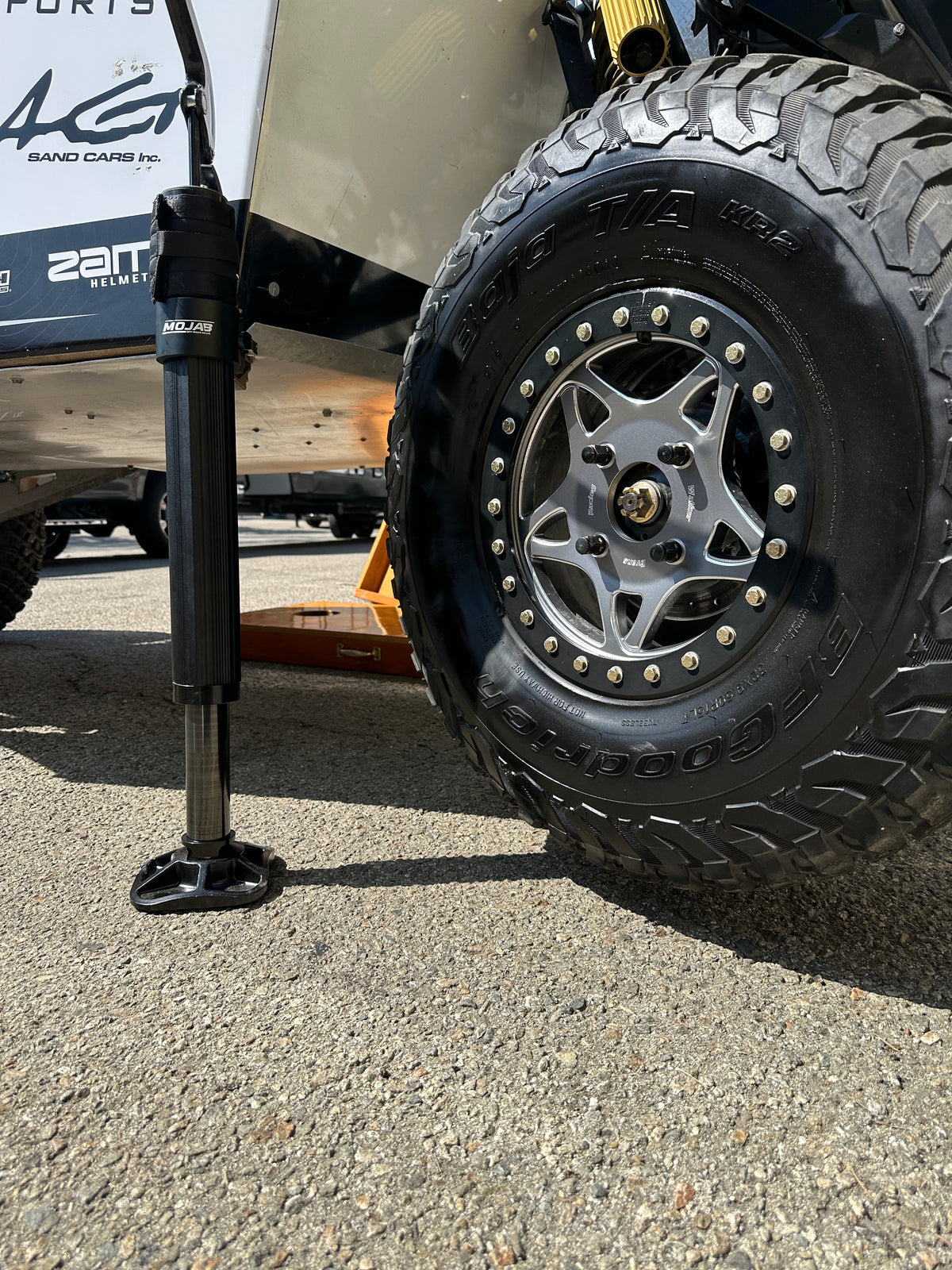

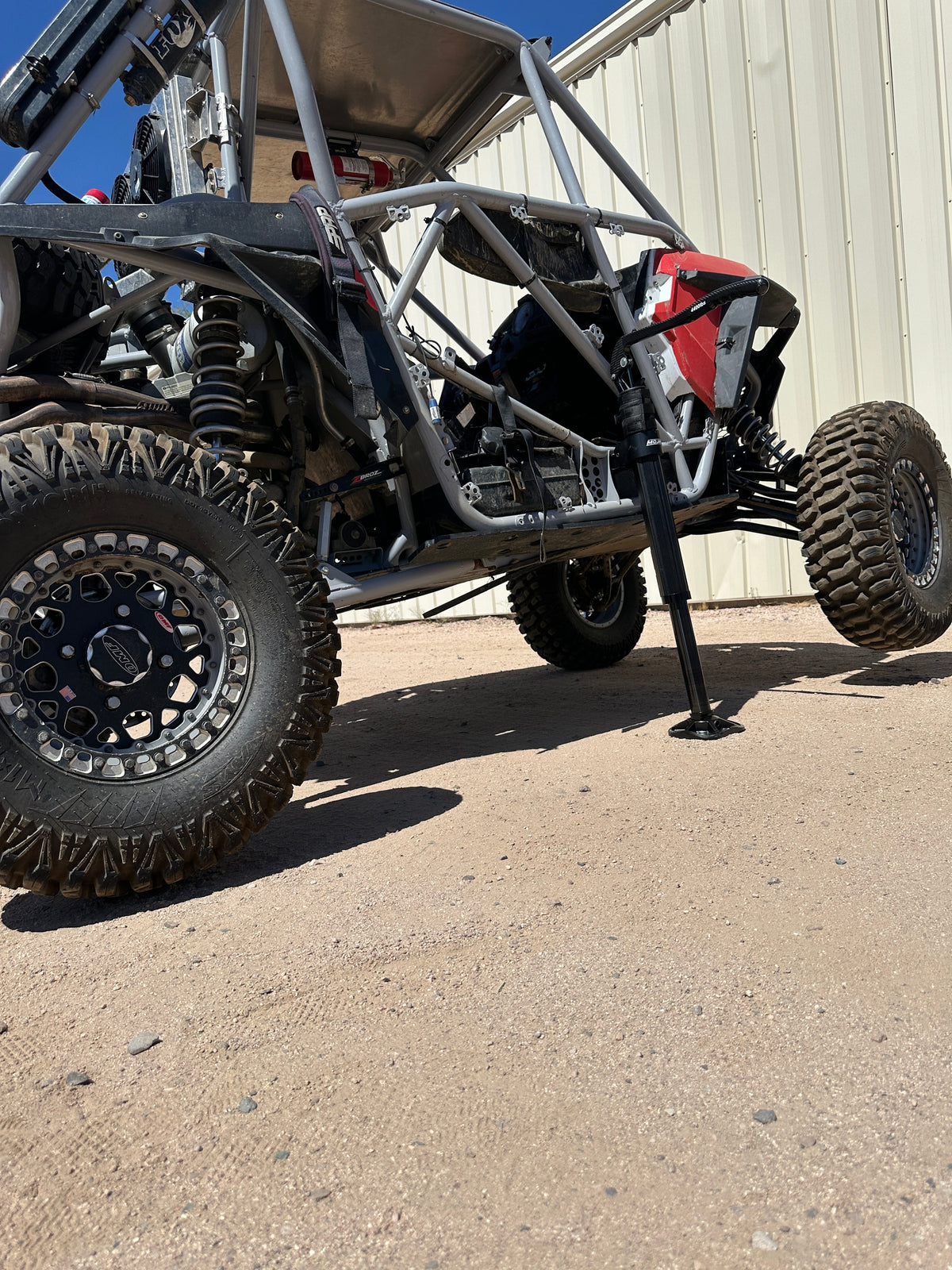

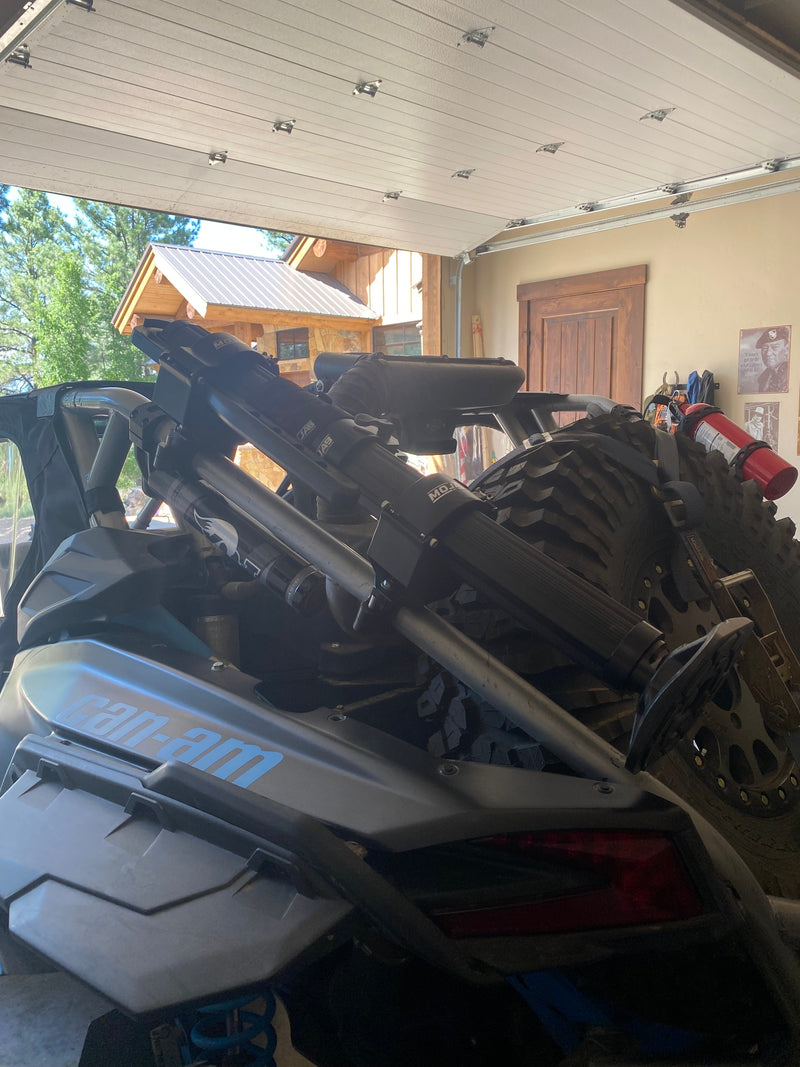

The Carbon Pro Compact jack is designed for maximum versatility, this lightweight Hydraulic Jack is perfect for side-by-side and full size rigs running up to 37'' tires, including Jeep, Toyota,Ford Bronco, buggy and more . compact yet, powerful, this 8'' shorter version of Original Carbon Pro jack delivers the same unmatched reliability and performance in a size perfectly suited for off-road adventurer.

Experience effortless lifting with the Ultimate Hydraulic Jack. Powered by hydraulic technology, this jack enables smooth and efficient operation with minimal human force required. Say goodbye to strenuous lifting and let the hydraulic system do the work for you. With a simple pump of the handle, you can effortlessly raise heavy loads with ease. The hydraulic mechanism ensures precise control and stability, allowing you to perform the jack with confidence and ease. Whether you're lifting vehicles, machinery, or other heavy objects, the hydraulic power of this jack guarantees a hassle-free lifting experience. Upgrade to the Ultimate Hydraulic Jack and enjoy the convenience and efficiency of hydraulic lifting.

Note: The Carbon Pro Compact Jack features a silver air bleeder valve located just underneath the black lowering lever. This valve has two positions: Lock and Unlock.

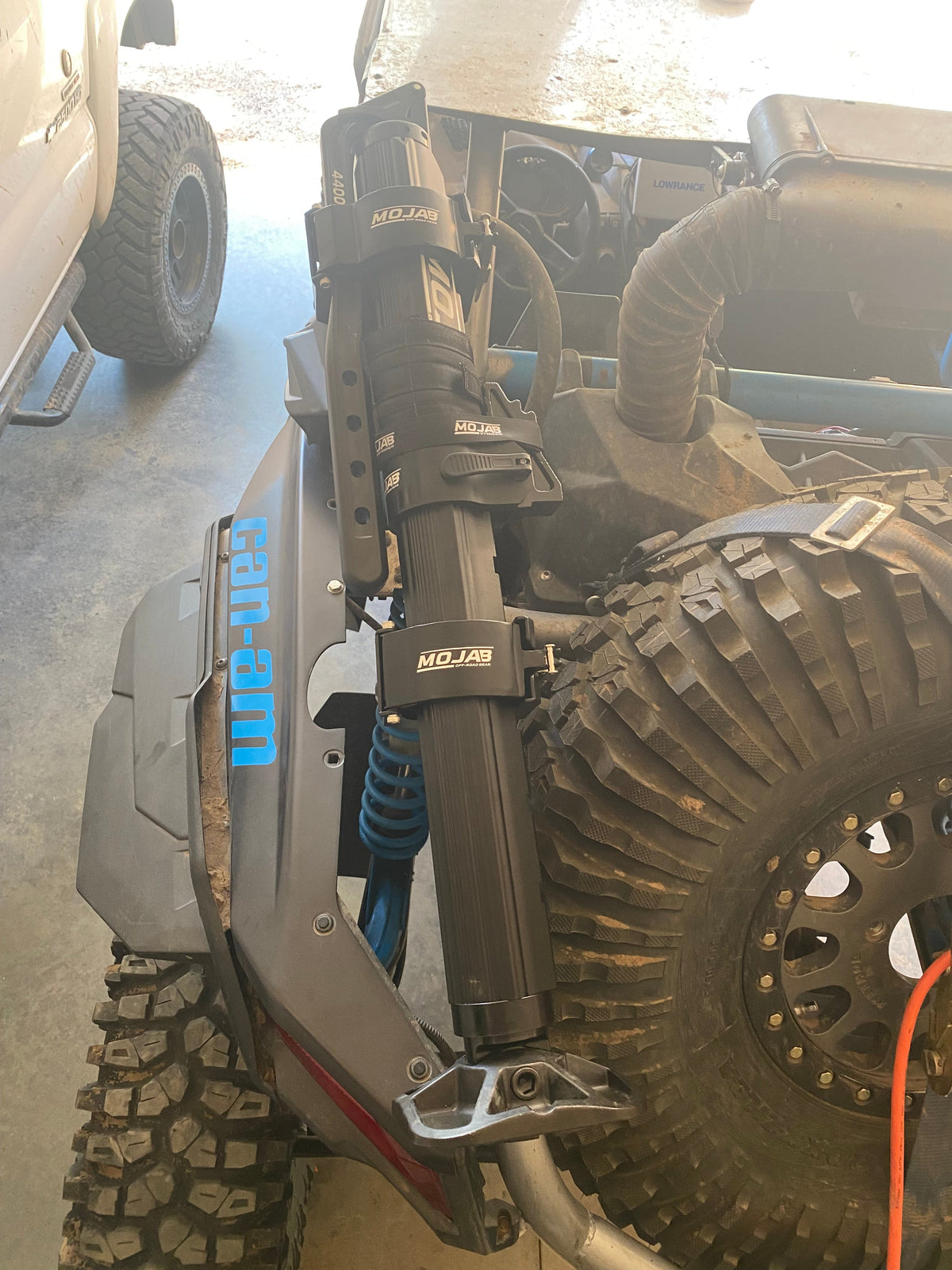

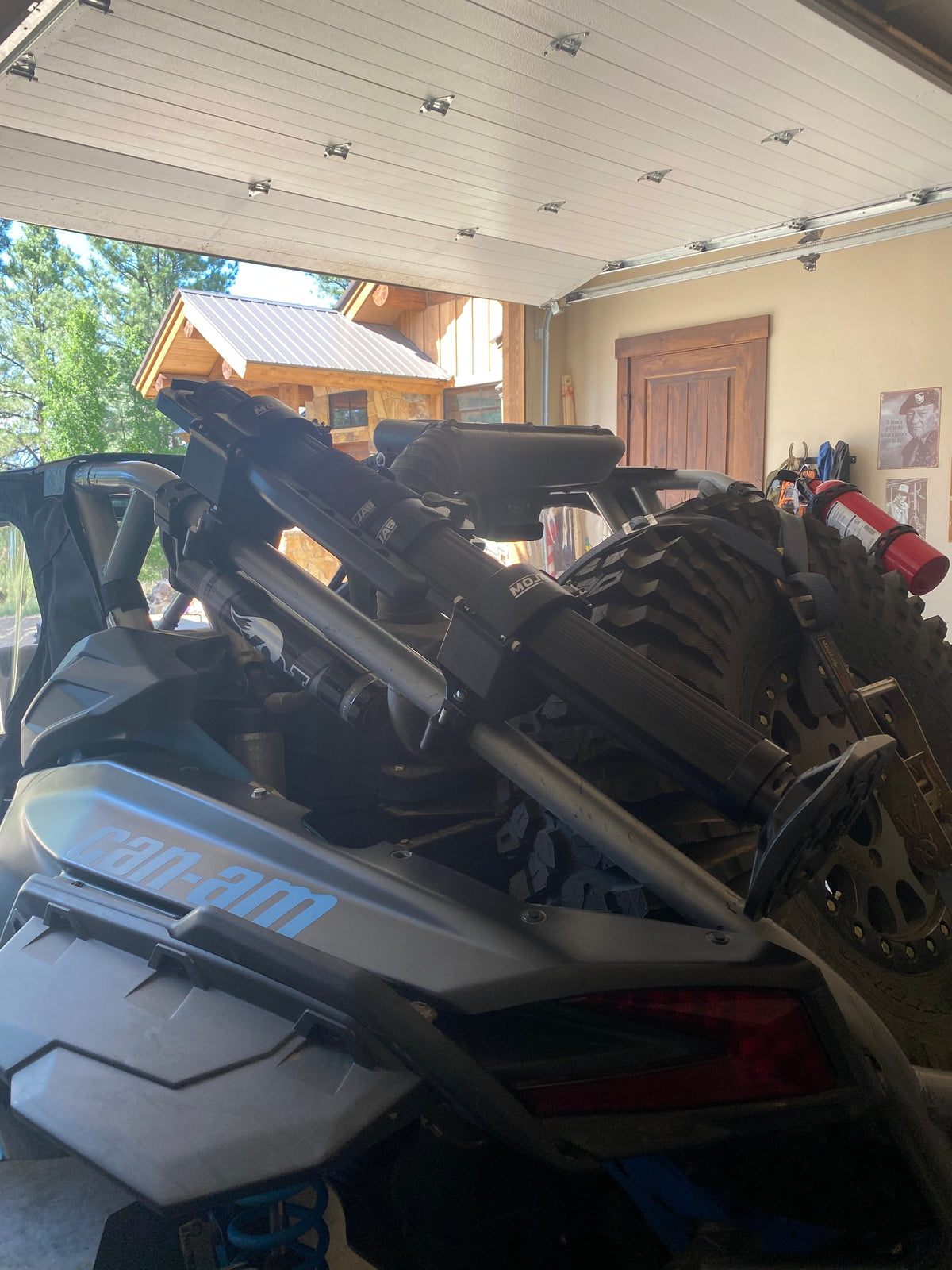

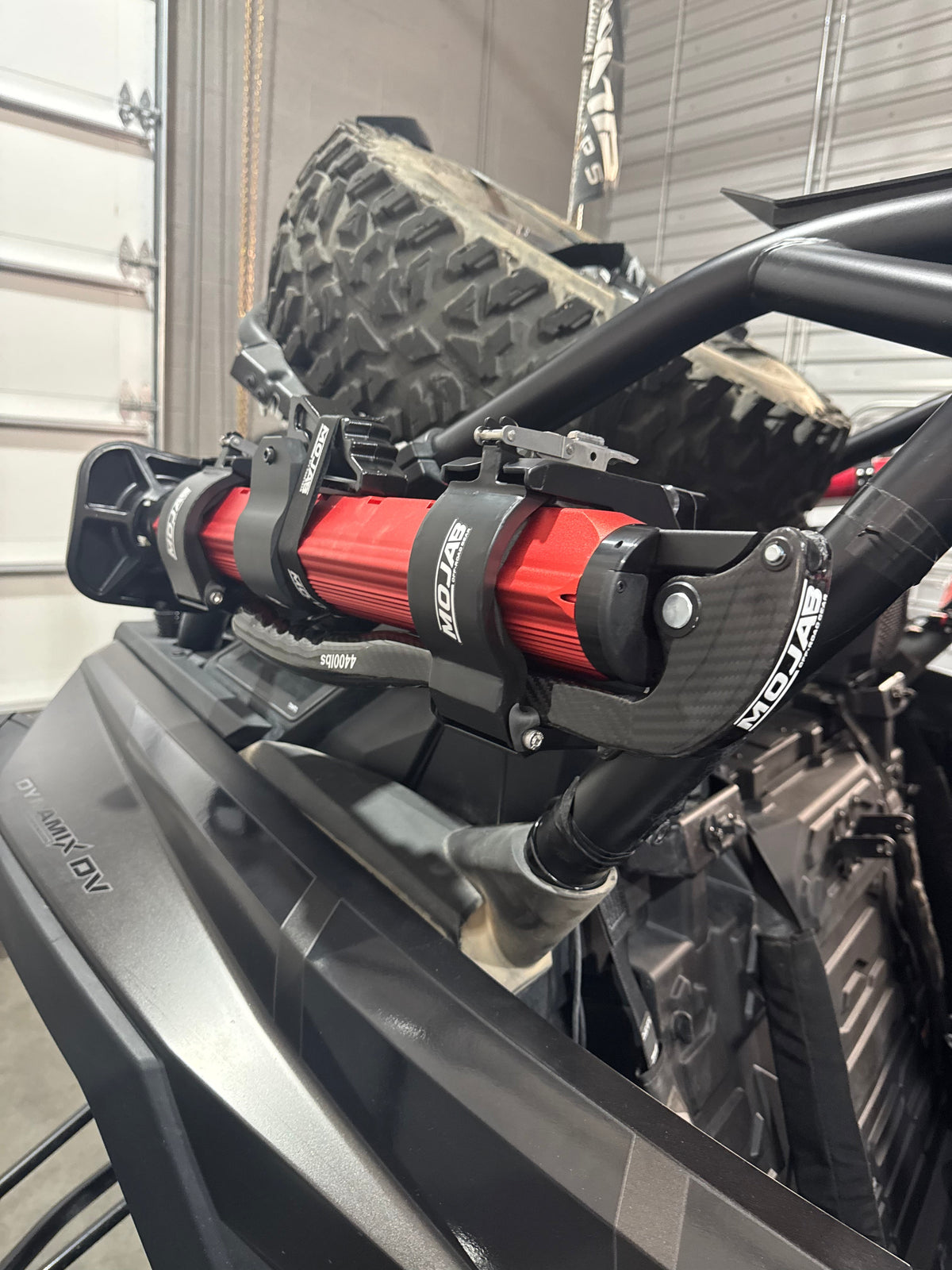

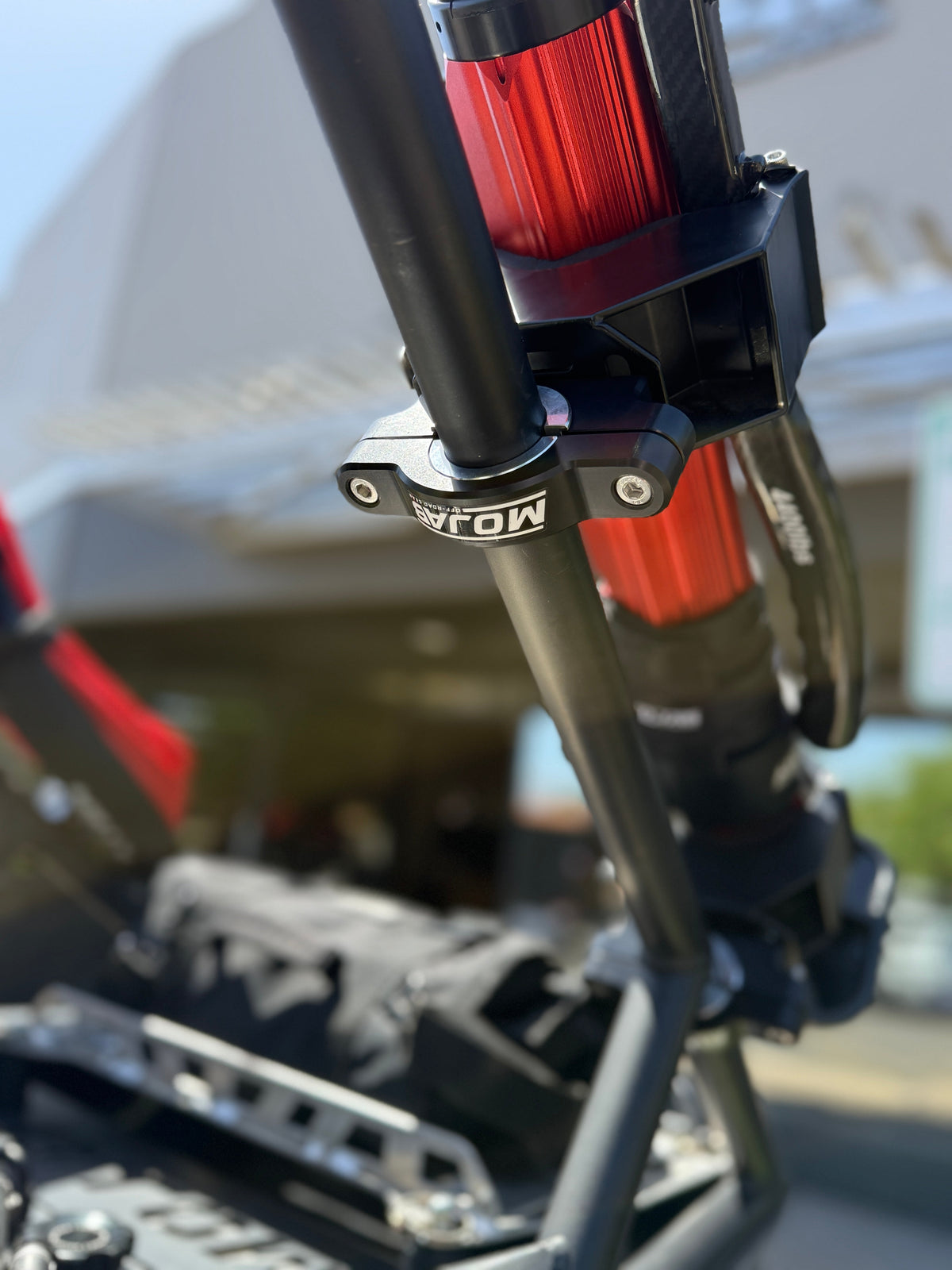

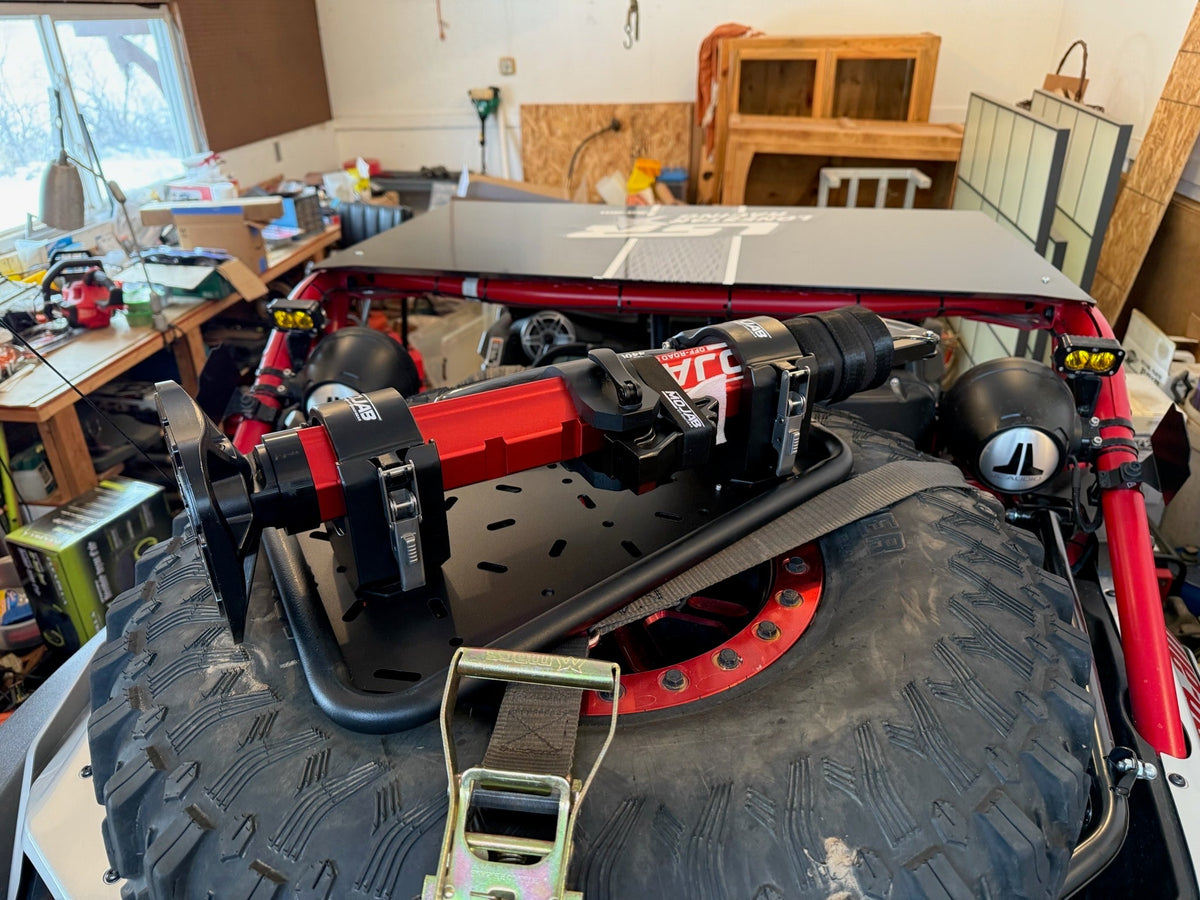

While the jack is mounted and in the stored position: Keep the valve in the Lock position.

When you start using the jack: Turn the valve to the Unlock position.

Fully compress the jack after use and store it in a dry place, away from moisture and water, to prevent the steel piston from rusting.

Coating Disclaimer:

Please note that the finish on the jack is not UV-resistant and may fade or discolor if exposed to direct sunlight for extended periods. The coating is not covered under warranty, as it is considered a cosmetic finish.For best results and to preserve the appearance of your jack, we recommend storing it in a shaded or covered area when not in use. Prolonged exposure to sun and harsh outdoor conditions may accelerate wear on the surface coating.

Air Bleeding Process:

The primary function of this valve is to bleed air from the system. To do this, turn the valve counterclockwise to unlock it, then push the valve down when there is no pressure behind the handle until you hear the air release. It's recommended to bleed the air out of the system every 7 to 8 cranks to allow the jack to equalize properly

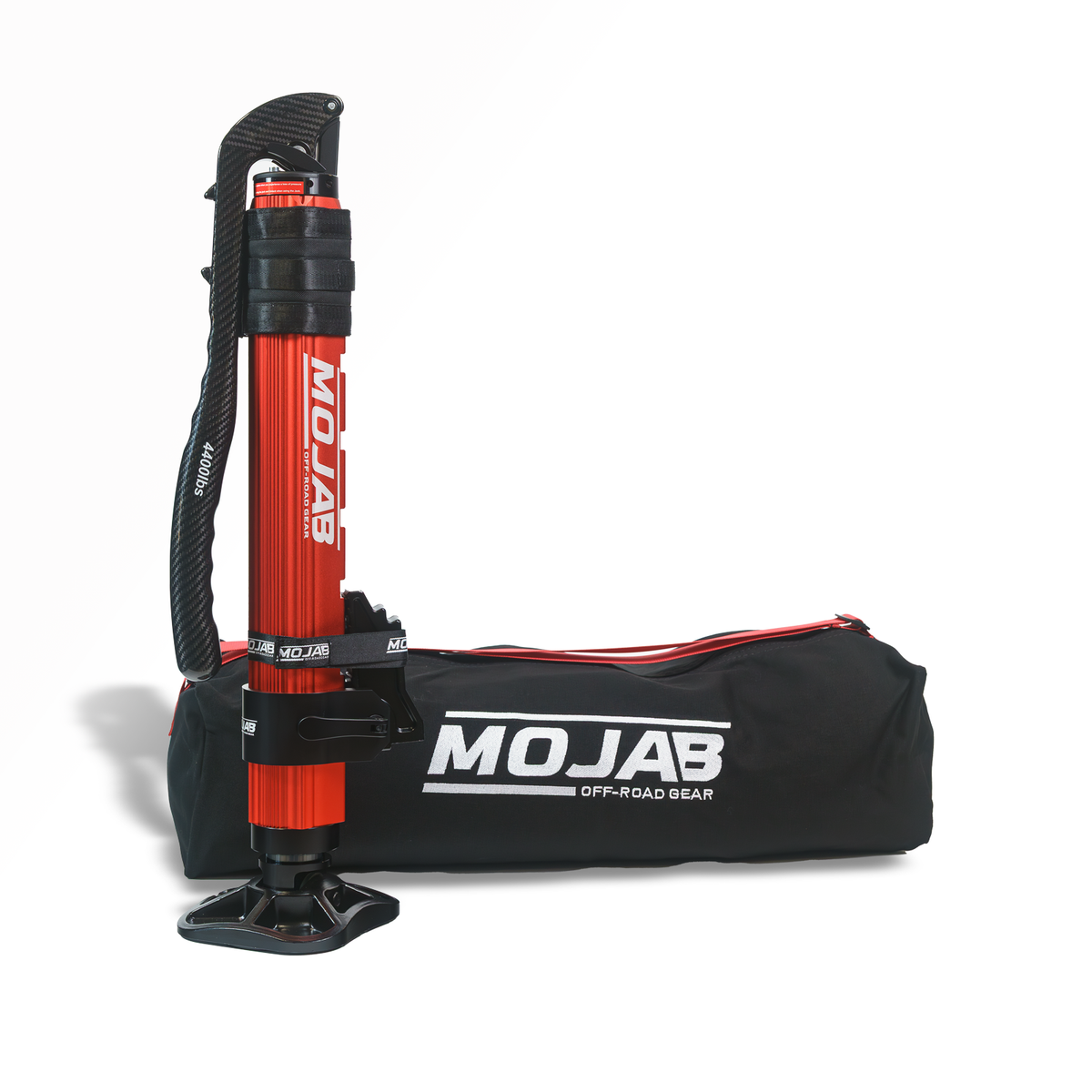

This kit includes the following:
