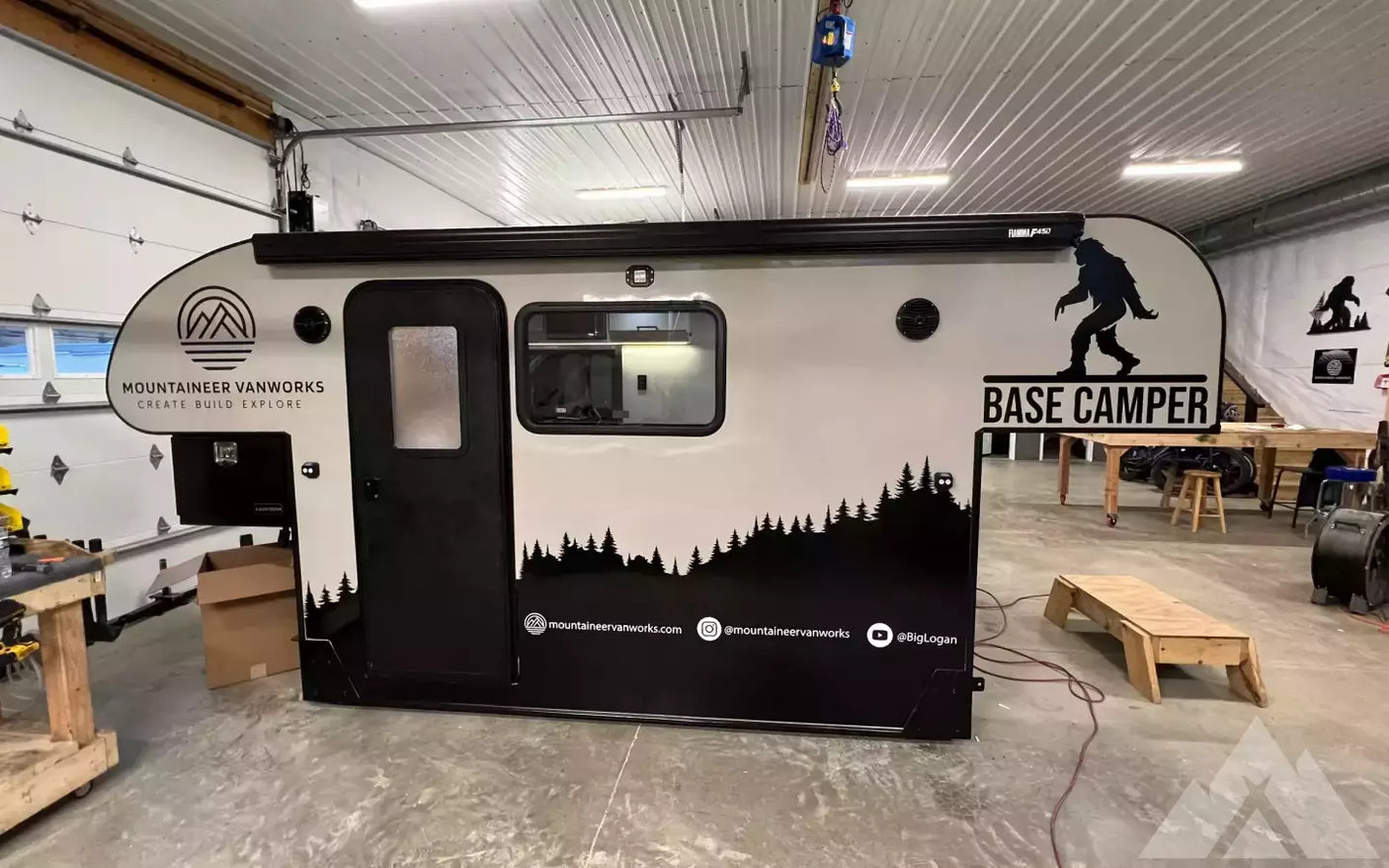

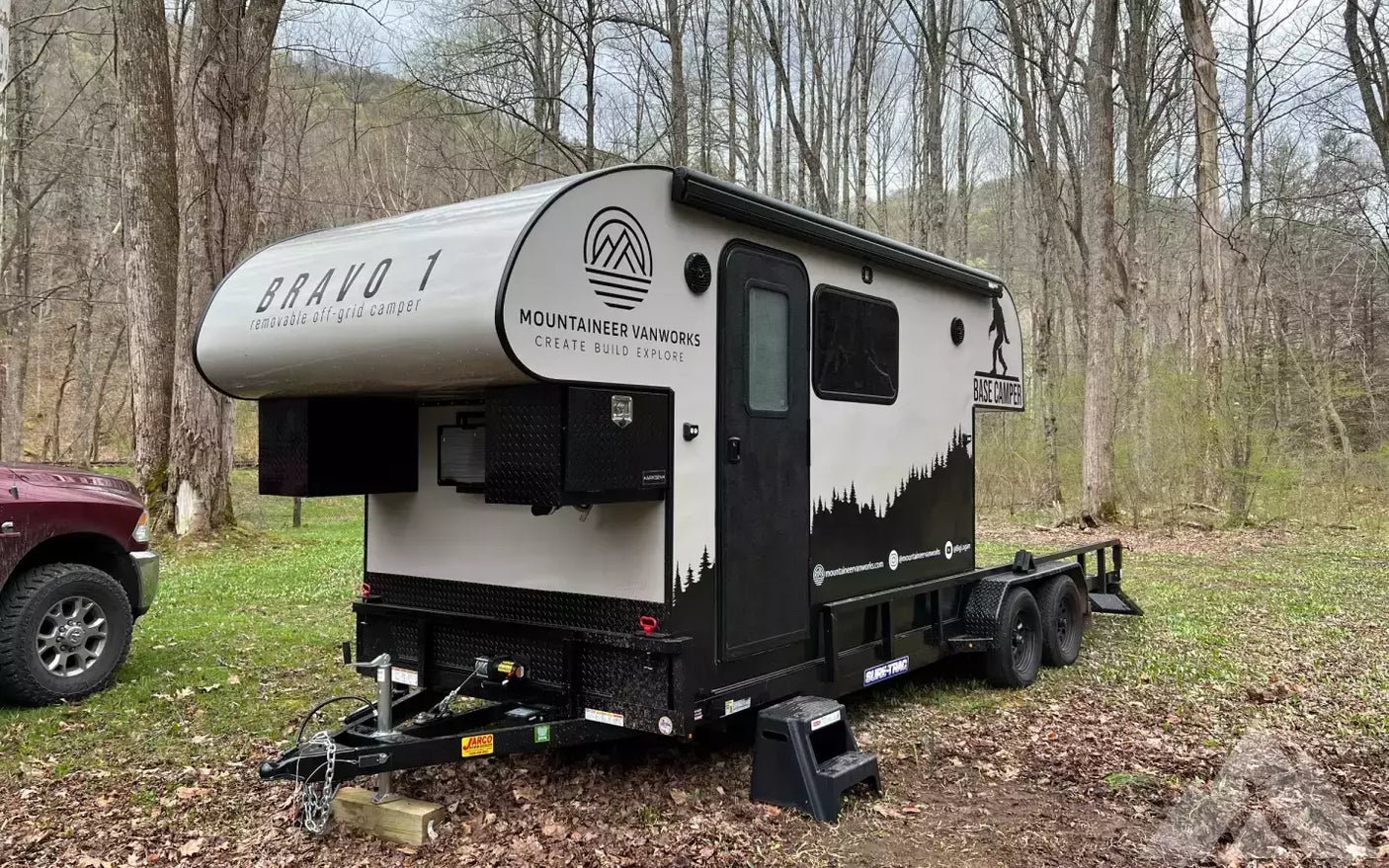

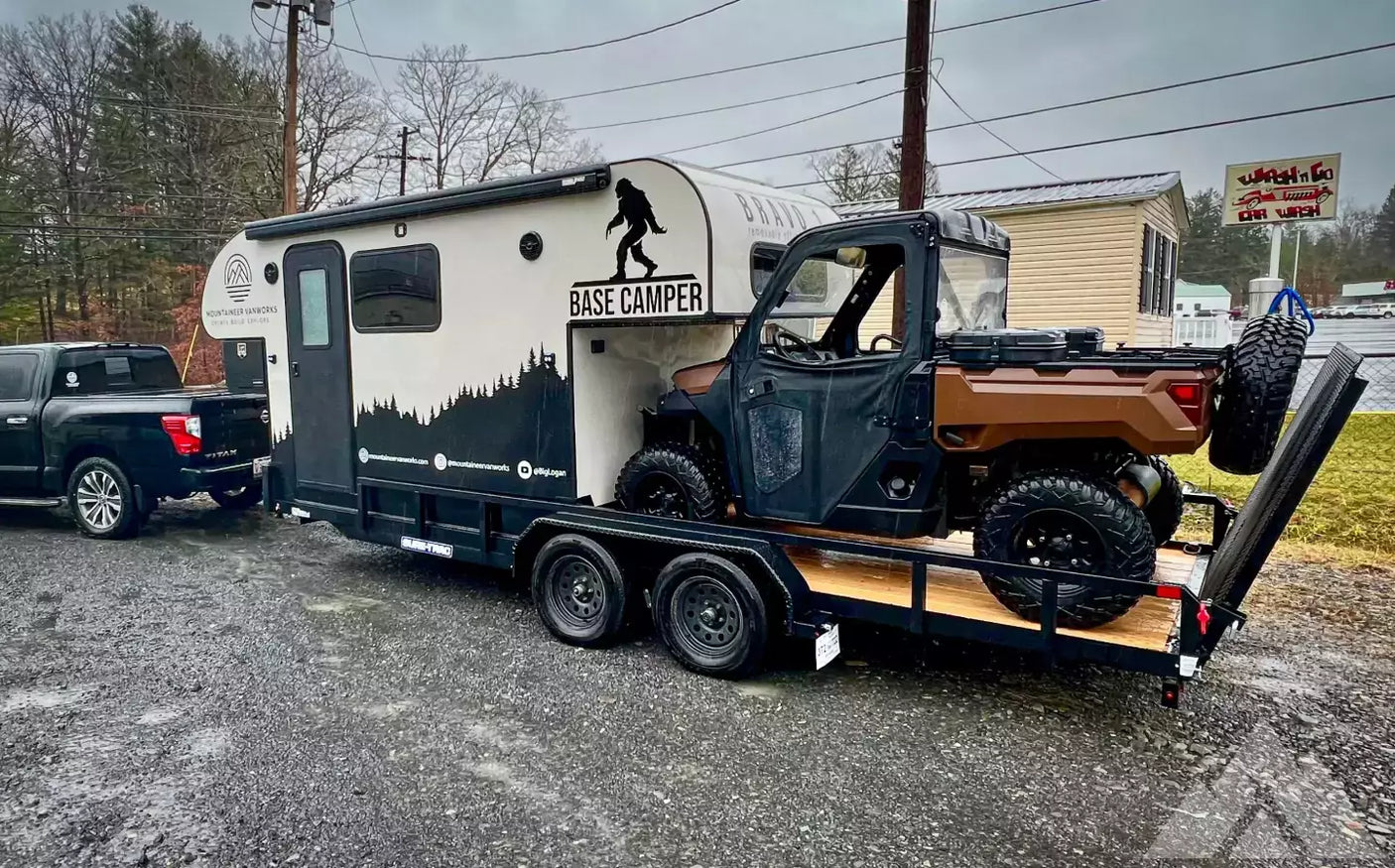

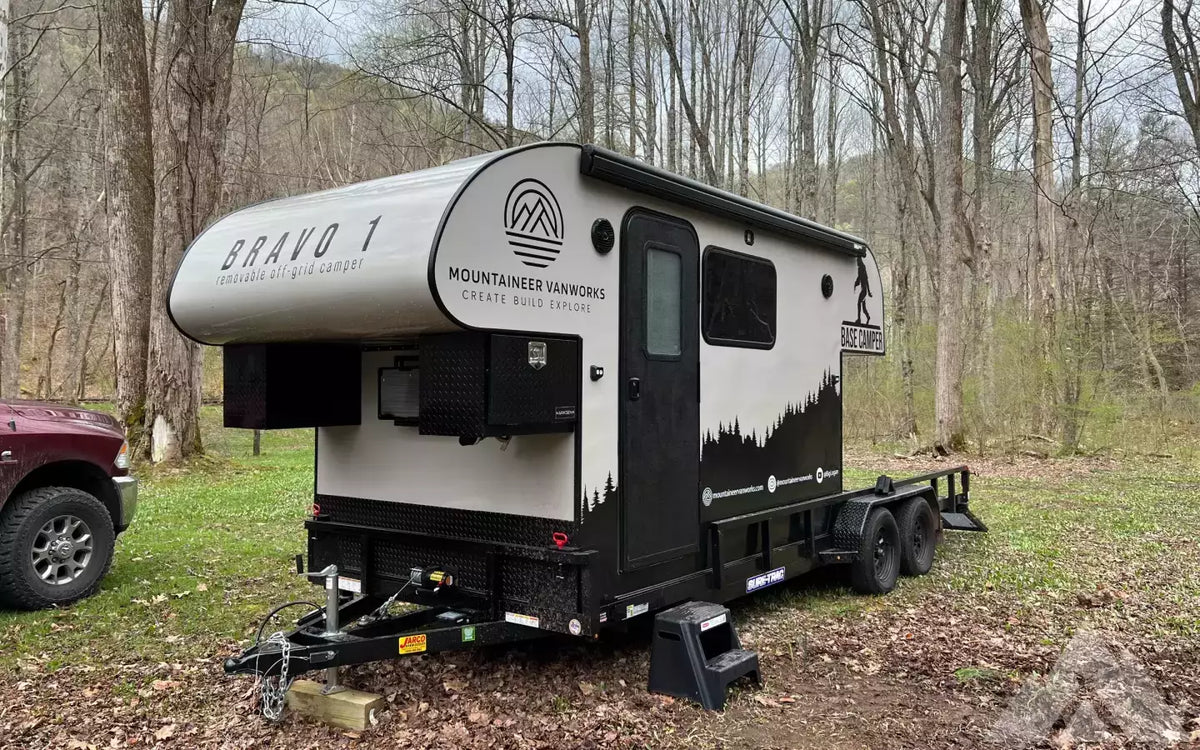

BRAVO 1 - OFF-GRID REMOVABLE TOY HAULER

Introducing the BaseCamper Off-Grid Toy Hauler by Mountaineer Vanworks – your ticket to unbridled adventure! This rugged, all-in-one solution is the ultimate off-road companion. It's a toy hauler, camper, and gear storage rolled into one, designed for thrill-seekers who crave the wild. With off-grid capabilities and smart amenities, it's your basecamp for freedom. Unleash the explorer in you with the BaseCamper!

PROMO VIDEO: https://youtu.be/oF7zuEqRltE?si=a04A23Q5ulLGwDum
IN-DEPTH TOUR VIDEO: https://youtu.be/Sc1yTxnhNmU

TECHNICAL SPECIFICATIONS

• Camper Dry Weight – 2667#
• Trailer Curb Weight – 2410#
• Camper Foot Print – 10’ 3”
• Camper Total Length – 16’ 3”
• Camper Exterior Width – 81”
• Camper Interior Width  - 74”

EXTERIOR FEATURES

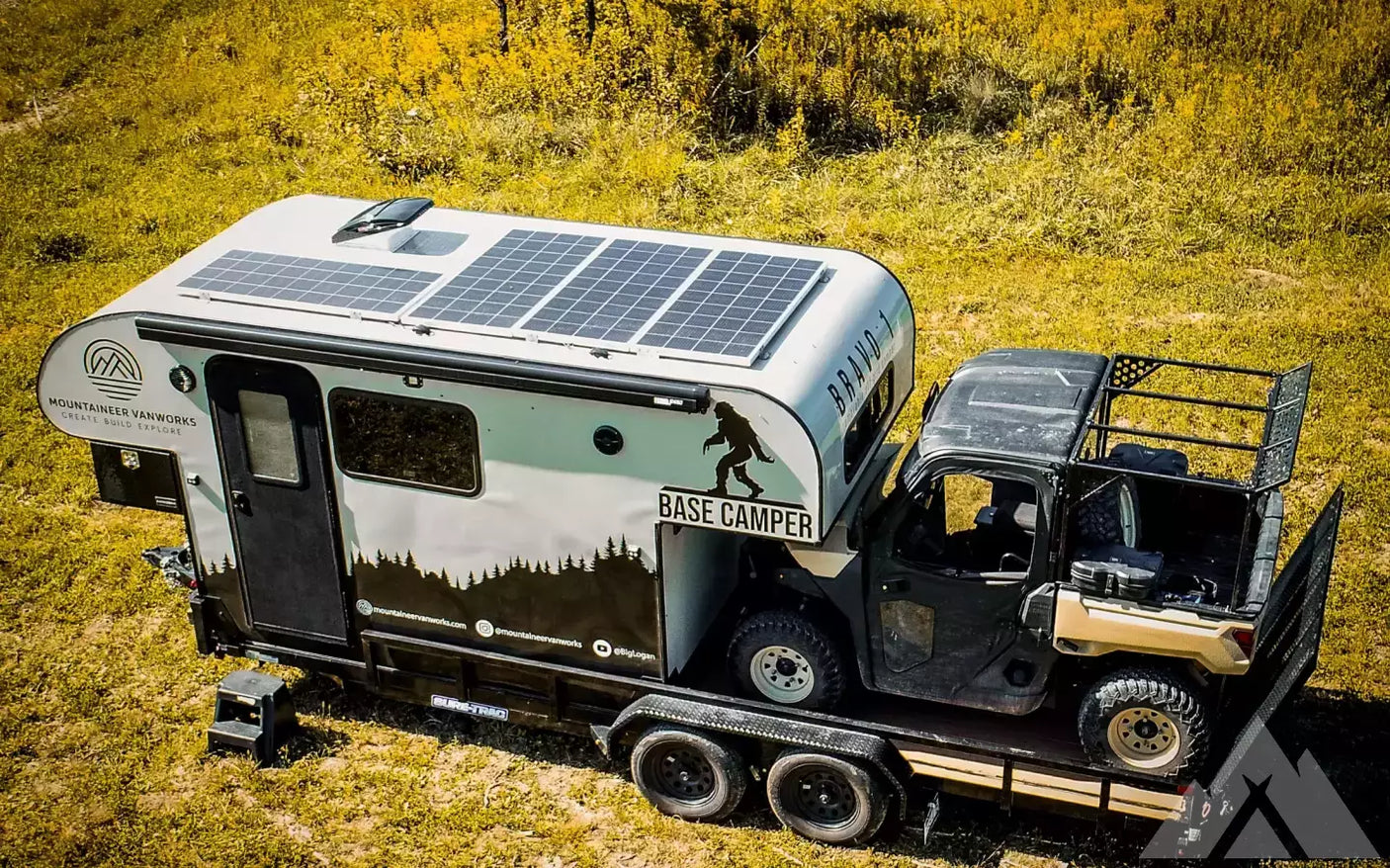

• Sure-Trac 7’x20’ 7K Tandem Axle “Tube Top” Trailer
• Removable / Deployable Camper Pod via Dual Winches
• Fully Self-Contained Utilities & Power Systems
• 12 EA. (3 per corner) Airless 10” Utility Wheels w/ Bearings
• Aluminum Diamond Plate Forward / Rear Impact Guards
• 12” x 1/8” THK Steel Corner Gussets
• 6” Camper Chassis with Reflectix Underlayment / Insulation
• Filon Fiberglass Wrap & Aluminum Edge Trimming

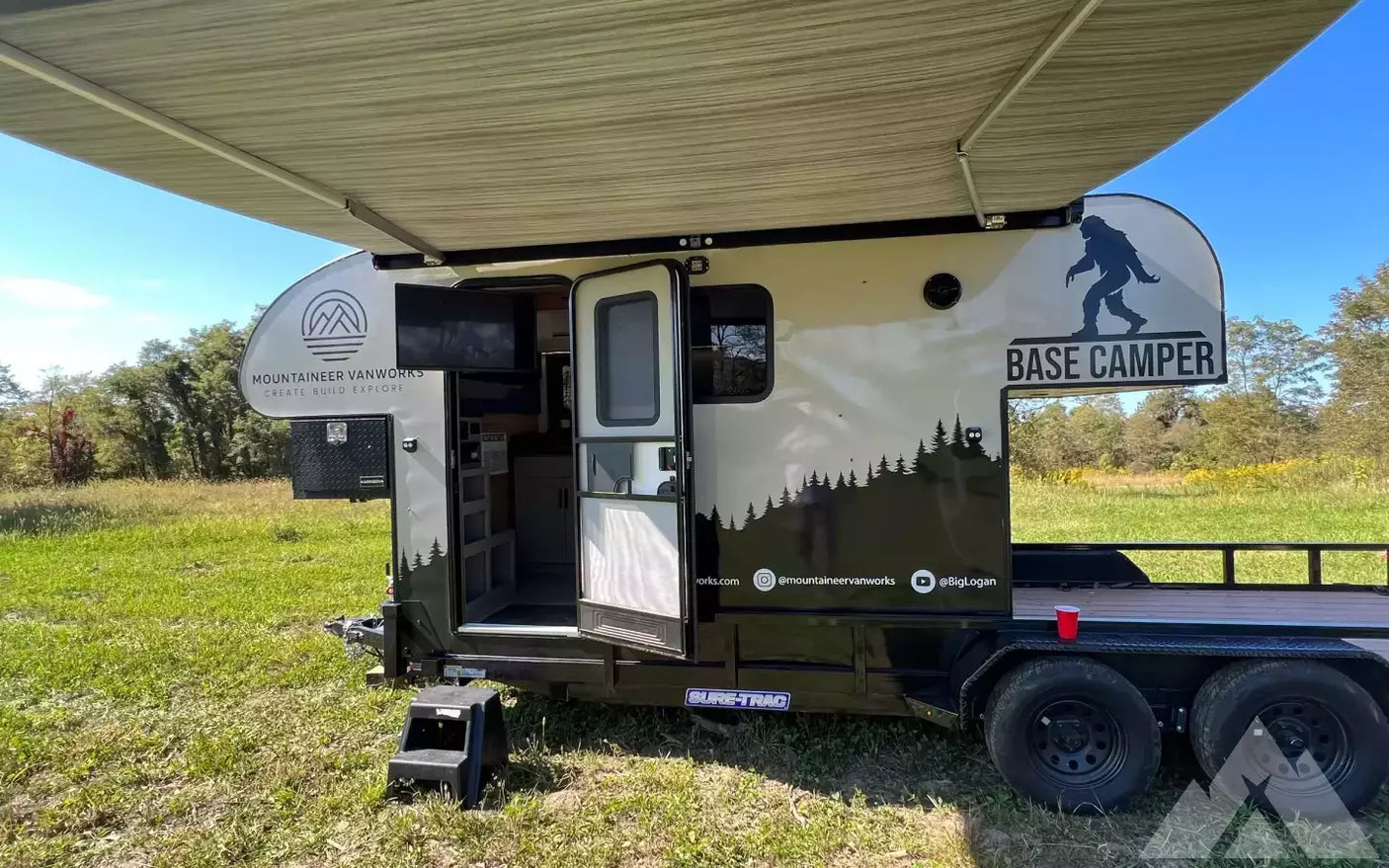

• Fiamma F45S 12’ Manual Awning
• Dual Lockable Aluminum Dry Boxes
• 8KW Diesel Cabin Heater
• Exterior Zoned LED Lighting and Audio
• Exterior Shower Box

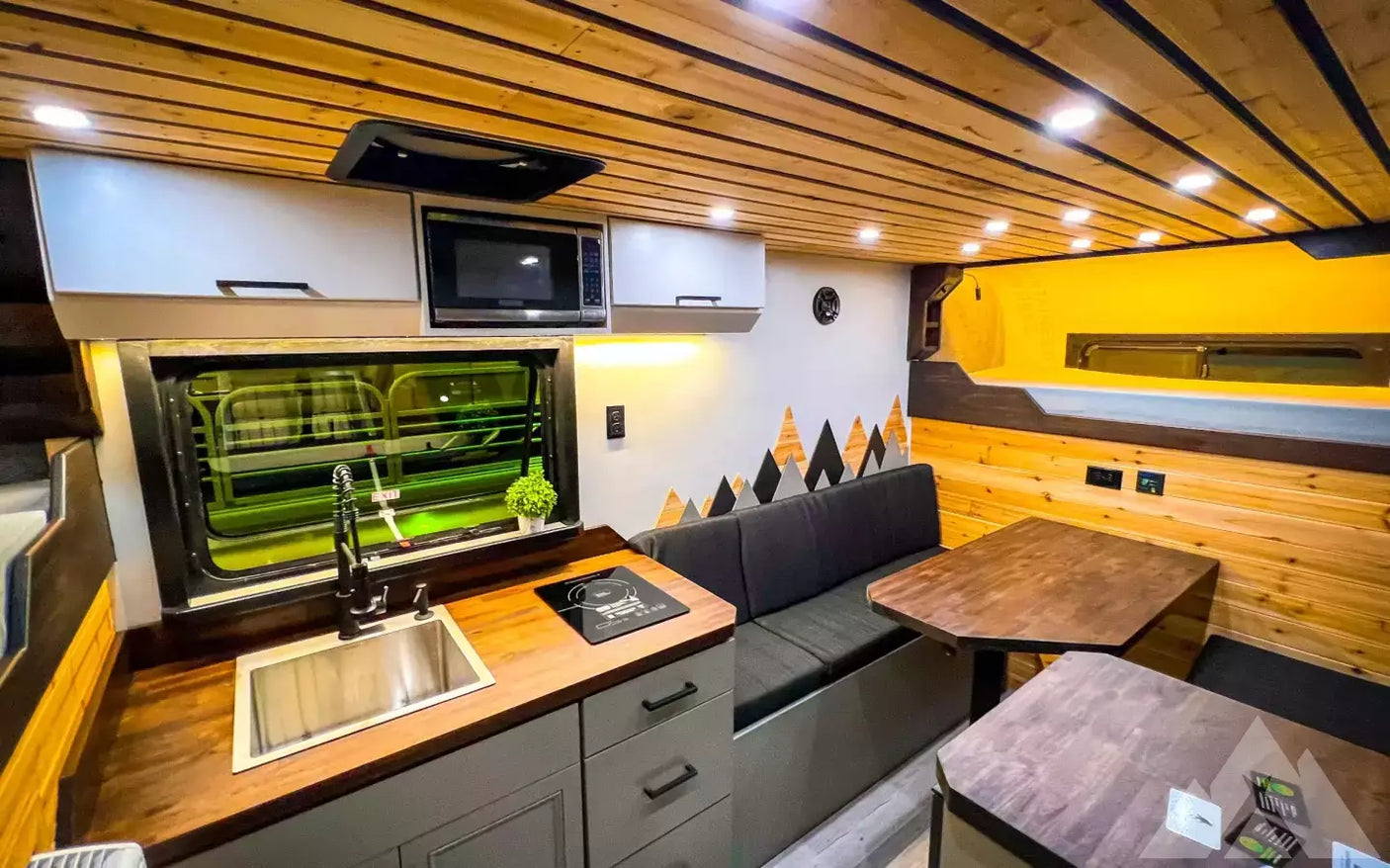

INTERIOR FEATURES


• 2 Stationary (Forward / Rear) 6’x3’ Beds
• Additional 3^rd Bed Conversion Via Commune / Dining Table

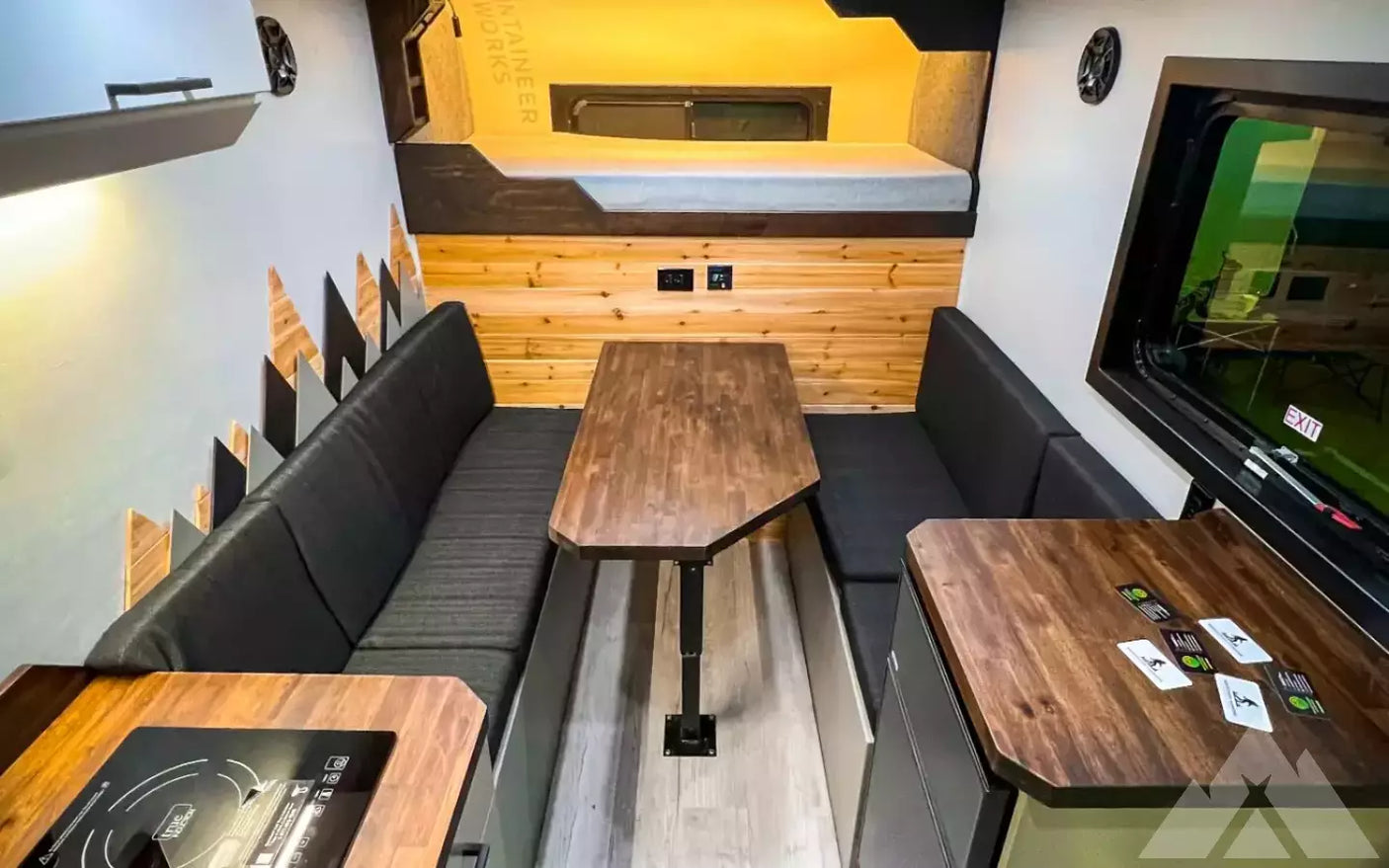

• 6’ and 5’ Dining Area Benches (5 Adult Capacity)

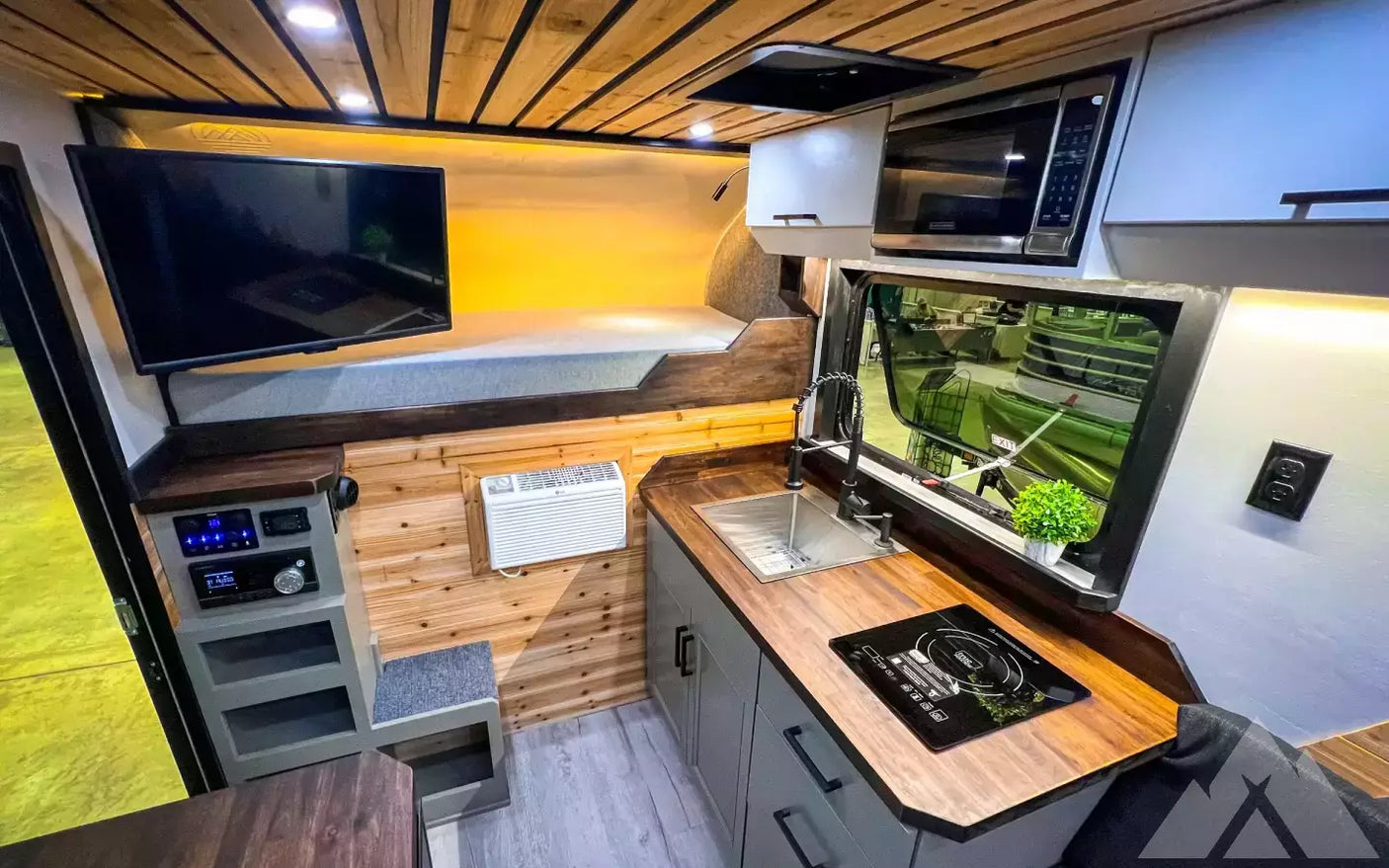

• 32” TV Connected to Furrion DV1230 Media Hub / Zoned Audio
• Handbuilt Cabinetry / Storage Cubbies
• Lightweight Cedar Planked Ceiling / Shiplap Accent Walls
• DC High Efficiency Fridge Freezer
• 5,000 BTU Window AC Unit w/ Remote
• 8KW Cabin Heater with Digital Thermostat
• 700W Stainless Microwave
• Stainless Steel Sink
• Single Burner Induction Cooktop
• Bosch 2.5 Gallon Electric Water Heater
• 40 Gallon Fresh Water Tank / 7.5 Gallon Gray Tank
• Laveo Dry Flush - Vacuum Sealed Toilet
• MaxxAir Deluxe Roof Vent Fan (4-Speeds)

ELECTRICAL SPECIFICATIONS

• 800 Watts Rooftop Solar Array
• 412 Ah Lithium Battery Bank w/ Built-In Bluetooth Monitors
• 3500W Pure Sine Inverter (Produces 120VAC from 12VDC)
• 50A Solar Charge Controller w/ Built-In Bluetooth Monitor
• 500A Master Shutoff Switch
• 75A Converter Charger w/ 30A Shore Power Inlet (Produces 12VDC from 120VAC)
• AC / DC Distribution Panel with 120VAC HOM-D Breakers and 12VDC Fuses
