Description

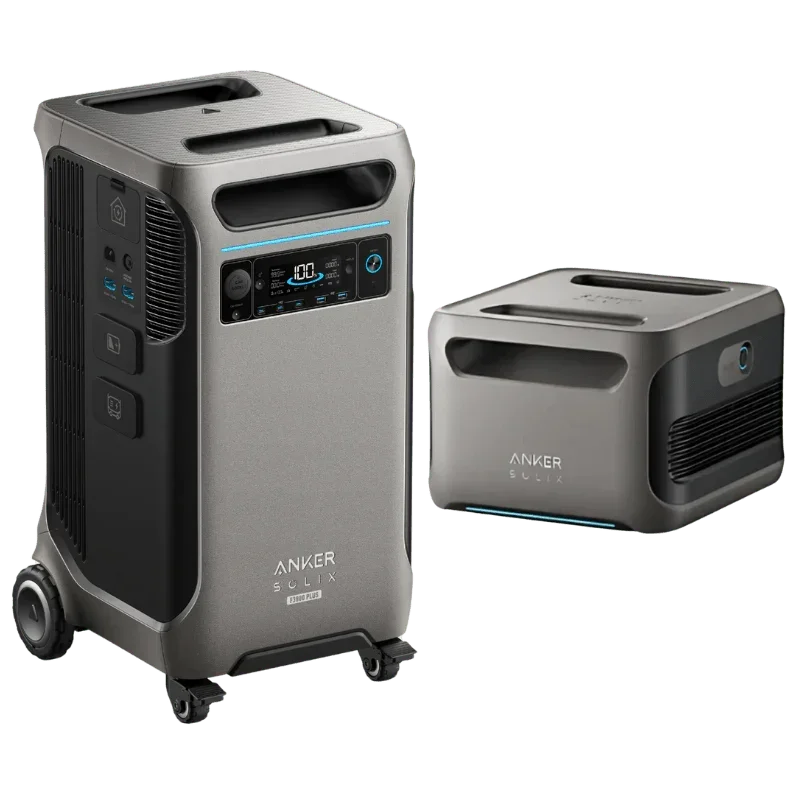

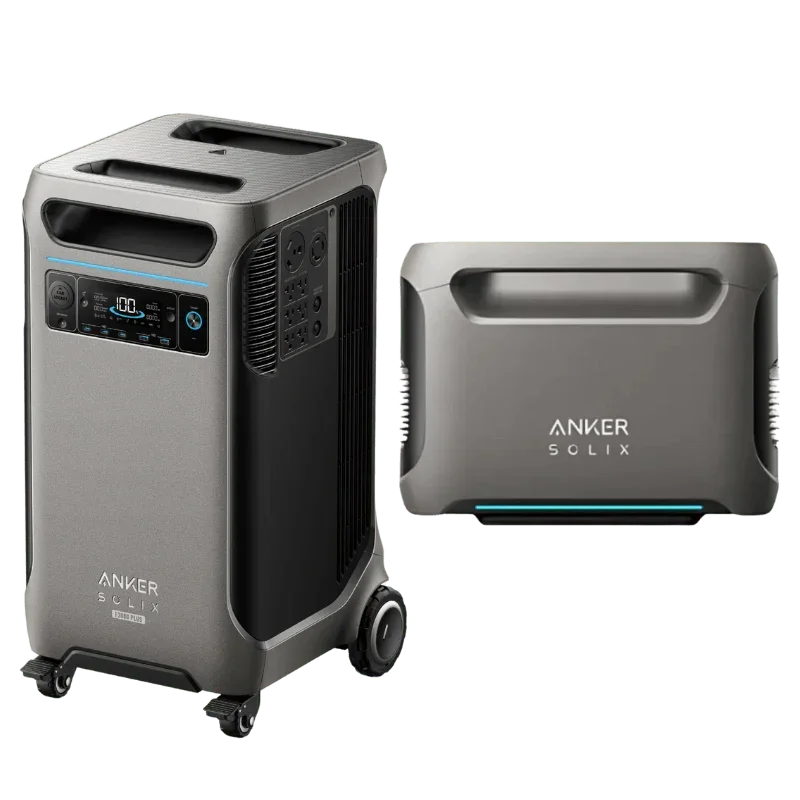

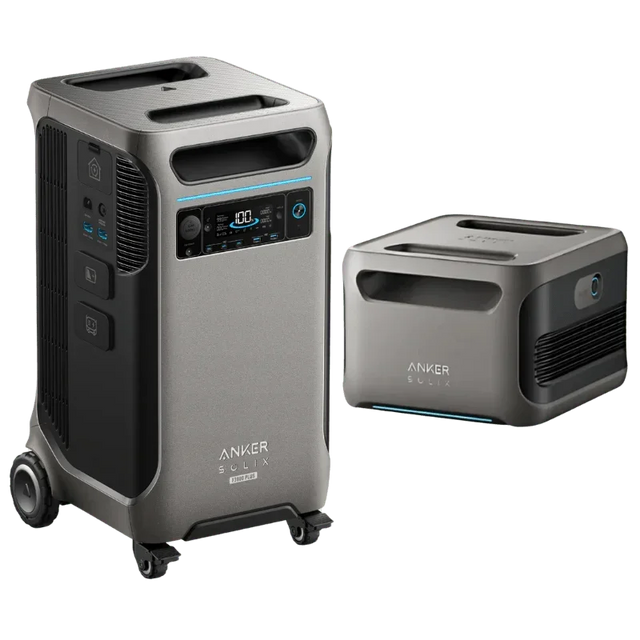

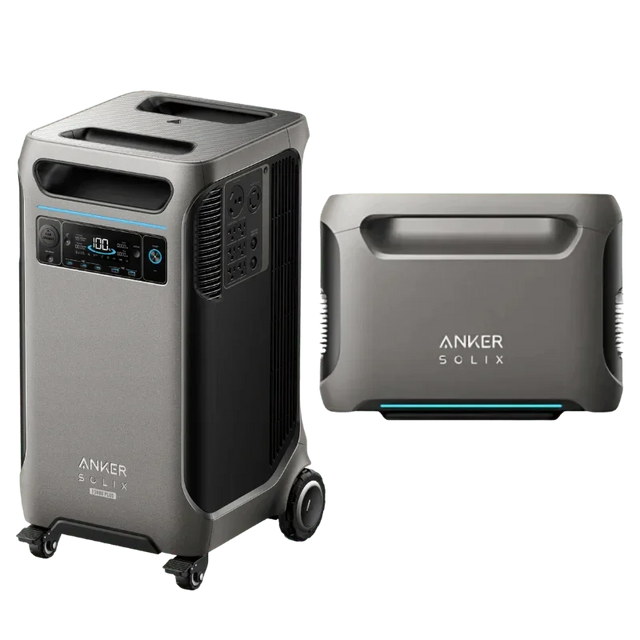

Anker SOLIX F3800 Plus Portable Power Station + Extra Battery
The Anker SOLIX F3800 Plus with Extra Battery is a high-capacity, expandable, and EV-compatible power solution designed for whole-home backup, off-grid adventures, and industrial-grade reliability. Featuring a robust 6,000W AC output, 120V/240V split-phase capability, and compatibility with high-voltage solar input, this power station redefines mobile and residential energy independence. Paired with the Extra Battery, it expands to a massive 7.68kWh capacity, with the potential to scale up to 53.8kWh. Whether you’re preparing for outages, powering a jobsite, or embracing solar freedom, the F3800 Plus delivers the most advanced portable energy system Anker has ever built.
Anker SOLIX F3800 Plus Portable Power Station + Extra Battery Features
- 6,000W Continuous Output (12,000W Surge) – Powers heavy-duty appliances, including refrigerators, air conditioners, and sump pumps.

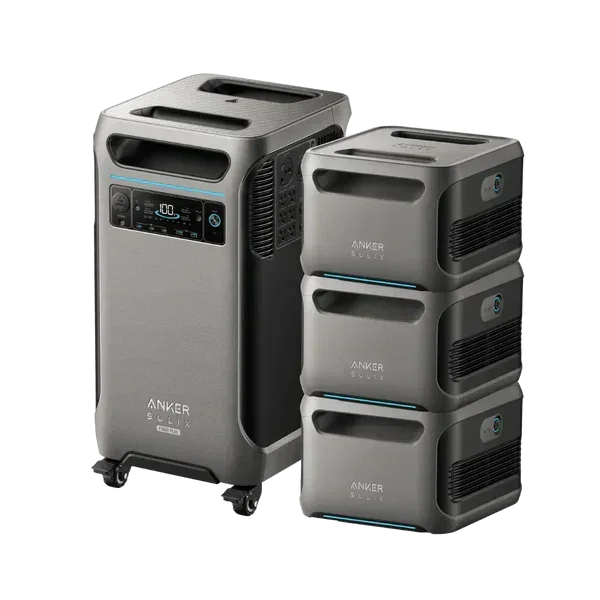

- Expandable Battery Capacity – Start with 3,840Wh and expand up to 53.8kWh with additional BP3800 expansion batteries.
- Fast Solar & AC Charging – Supports 3,200W solar input, 6,000W generator charging, and 1,800W AC input for rapid recharging.
- Seamless Backup Power – Auto-switching backup mode ensures uninterrupted power when connected to a Home Power Panel.
- 120V/240V Dual-Voltage Output – Supports essential home circuits, well pumps, and 240V appliances like electric dryers.
- High-Efficiency LiFePO₄ Battery – Delivers 10+ years of reliable performance with 3,000+ cycles at 80% depth of discharge.
- Gas Generator Compatible – Works with all 240V generators, reducing reliance on grid power.
- Reduce Energy Costs with AC Coupling – Store solar energy during the day and use it at night to lower electricity bills.
- Modular & Scalable Power – Connect multiple units for up to 12,000W output and whole-home energy solutions.
Anker SOLIX F3800 Plus Portable Power Station + Extra Battery Applications
- Whole-Home Emergency Backup – Keeps refrigerators, lighting, HVAC, and medical devices running during outages.
- Jobsite Power Supply – Delivers enough energy for power tools, compressors, and heavy equipment in remote locations.
- Off-Grid Cabins & RVs – A true powerhouse for vanlife or remote living where grid power isn’t an option.
- Electric Vehicle Top-Off – Provides critical miles for EVs during emergencies or while traveling off-grid.
- Solar-Powered Energy Storage – Charges quickly using rooftop or portable solar panels—sustainable and silent.
- Events and Festivals – Quietly powers food trucks, stage gear, and AV equipment without noise or fumes.
What's Included
Everything you need is included with your product.
- (1) Anker SOLIX F3800 Plus Portable Power Station
- (1) Anker SOLIX BP3800 Expansion Battery
- (1) AC Charging Cable
- (1) MC4 3-Port Solar Charging Connector
- (1) User Manual
Anker SOLIX F3800 Plus Portable Power Station Specifications
BATTERY
| Specifications | Details |
| Battery Type | LiFePO4 Cell |
| Cell Part Number | 32140FS-15000mAh |
| Charging Cycle | 3000+ (to 80%) |
| Cell Capacity | 51.2Vdc 75Ah/3840Wh |
INPUT
| Specifications | Details |
| AC Input | 120V~ 15A Max (< 3hrs) / 12A Max (continuous), 60Hz, L+N+PE |
| AC Input Power (Charging) | 1800W Max |
| AC Input Power (Bypass Mode) | 1440W Max |
| Solar Panel Input 1 | 11-165V - 17A Max (1600W Max Each) |
| Solar Panel Input 2 | 11-165V - 17A Max (1600W Max Each) |
| DC Input Port | 60V Max, 120A Max |
OUTPUT
| Specifications | Details |
| Car Charger Output | 12V - 10A |
| Home Panel Power Port | 6000W Max (AC Input), 6000W Max (AC Output), 120V/240V, L1+L2+N+PE |
| AC Output Power (Total) | 6000W Max |
| AC Output 1 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output 2 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output (NEMA L14-30R) | 120V/240V~ 25A Max, 60Hz, 6000W Max |
| USB-A Output | 5V - 2.4A (12W Max Per Port) |
| USB-C Output | 5V - 3A / 9V - 3A / 15V - 3A / 20V - 3A / 20V - 5A (100W Max Per Port) |
UPS
| Specifications | Details |
| UPS | 20ms |
ENVIROMENTAL OPERATION
| Specifications | Details |
| Discharging Temperature | -4°F-104°F / -20°C-40°C |
| Charging Temperature | 32°F-104°F / 0°C-40°C |
DIMENSION
| Specifications | Details |
| Size | 27.6×15.3×15.6 in / 70.2×38.8×39.5 cm |
| Net Weight | 62kg / 136.7lb |
Anker SOLIX BP3800 Expansion Battery Specifications
| Specification | Details |
| Capacity | 51.2Vdc 75Ah / 3840Wh |
| Expansion Battery Port Input | 75A Max |
| Expansion Battery Port Output | 170A Max |
| Discharging Temperature | -4°F - 104°F | -20°C - 40°C |
| Charging Temperature | 32°F - 104°F | 0°C - 40°C |
| Dimensions | 15.5 × 14.0 × 10.3 in | 39.3 × 35.5 × 26.2 cm |
| Net Weight | 33 kg | 72 lb |
Frequently-Asked Questions
an I expand the battery capacity of the Anker SOLIX F3800 Plus?
Yes. You can expand the storage up to 53.8kWh by adding BP3800 Expansion Batteries.
Can I run my whole house on the F3800 Plus?
Yes, when connected to a Home Power Panel, it can provide essential circuit power for home appliances, HVAC systems, and sump pumps.
Does the BP3800 Expansion Battery have its own output ports?
No. The BP3800 Expansion Battery connects directly to the F3800 Plus, increasing its capacity but not adding separate AC/DC ports.
Can I charge the system with both solar and AC power at the same time?
Yes. The system supports dual charging methods, allowing for faster recharge times.
What appliances can I run on the F3800 Plus?
You can run fridges, AC units, space heaters, power tools, sump pumps, well pumps, and even electric stoves.
How does the system help reduce energy bills?
The AC Coupling feature allows the F3800 Plus to store excess solar energy and use it later, reducing electricity costs.
Is professional installation required?
No. The plug-and-play design allows for easy setup, but an electrician may be needed if integrating with a home power panel.
Can I use the F3800 Plus while charging?
Yes. The system supports pass-through charging, meaning you can use power while recharging via solar, AC, or generator.
Is the F3800 Plus safe to use indoors?
Yes. Unlike gas generators, it produces no fumes or noise, making it safe for indoor use.
Can I use the BP3800 Expansion Battery without an F3800 Plus?
No. The BP3800 requires an F3800 Plus unit to function. It cannot be used as a standalone battery.
How many BP3800 Expansion Batteries can I add?
You can add multiple BP3800 batteries to increase storage up to 53.8kWh.
