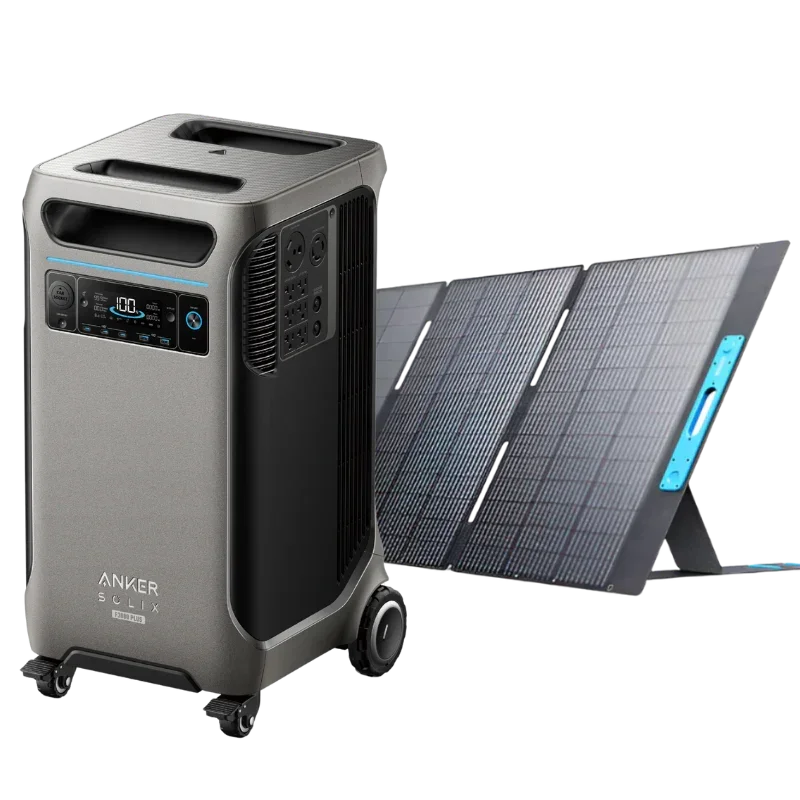

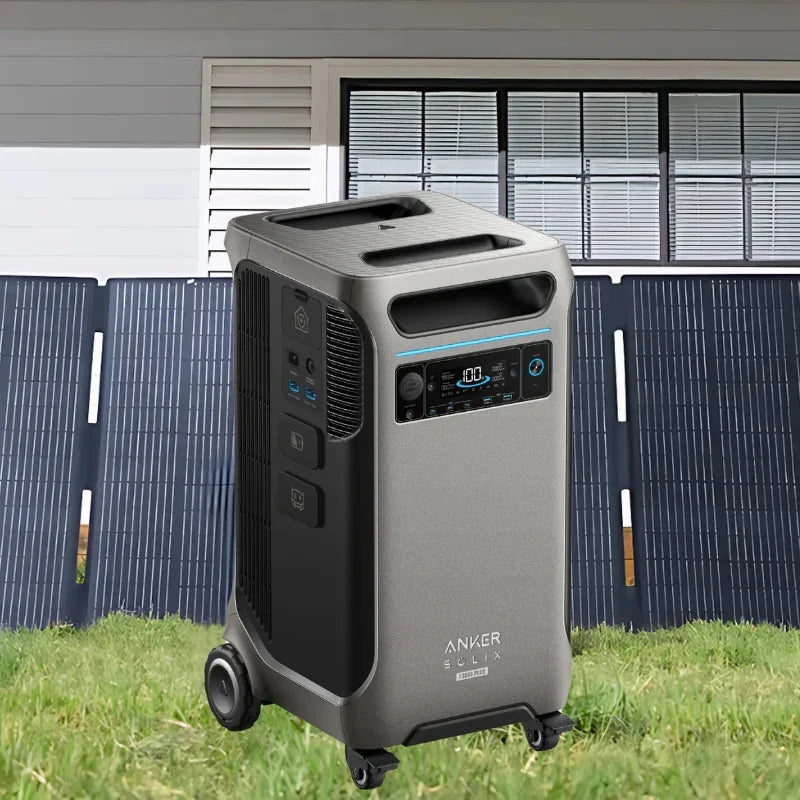

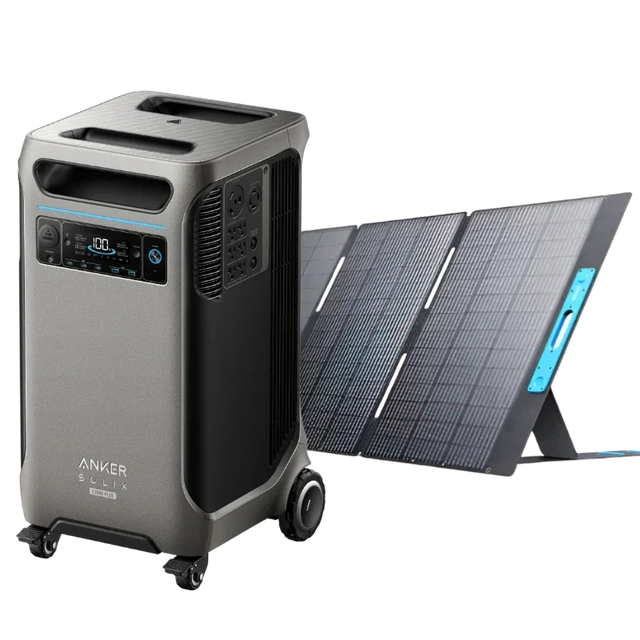

Anker SOLIX F3800 Plus Portable Power Station+ 400W Solar Panel
The Anker SOLIX F3800 Plus is a high-capacity portable power station with 6,000W continuous output (12,000W surge) and 120V/240V dual-voltage support, making it perfect for whole-home backup, RVs, and outdoor adventures. Paired with the Anker SOLIX 400W Foldable Solar Panel, this bundle provides off-grid power, energy independence, and seamless backup during outages.
Anker SOLIX F3800 Plus + 400W Solar Panel Features
- Massive 6,000W AC Output – Power heavy-duty appliances, tools, and essential home circuits with ease.
- 53.8kWh Expandable Battery Capacity – Connect additional batteries to increase storage for extended backup power.
- Up to 3,200W Solar Input – Fast solar charging in 1.5 hours using eight 400W solar panels.
- Automatic Backup During Outages – Seamless transition to backup power when connected to the Home Power Panel.
- 120V/240V Dual Voltage – Power both high-voltage appliances (dryers, water heaters, well pumps) and standard 120V devices.
- Gas Generator Compatibility – Supports 6000W generator input for long-term backup during extended outages.
- Smart AC Coupling Technology – Store excess solar energy during the day and use it at night to reduce electricity costs.
- Rapid Recharge Options – Charge via AC wall outlet (1,800W), solar panels (3,200W), generator (6,000W), or combined methods.
- Portable & Easy Installation – 50% lower cost than traditional storage systems, with simple setup requiring only a few hours.
Anker SOLIX F3800 Plus + 400W Solar Panel Applications
- Whole-home backup power for outages
- Off-grid power solutions for remote cabins and RVs
- Solar energy storage for reducing electricity bills
- Emergency preparedness with seamless backup power
- Outdoor and camping adventures with portable, clean energy
What's Included
Everything you need is included with your product.
- (1) Anker SOLIX F3800 Plus Portable Power Station
- (1) AC Charging Cable
- (1) Anker SOLIX 400W Foldable Solar Panel
- (1) MC4 3-Port Solar Charging Connector
- (1) User Manual
Anker SOLIX F3800 Plus Portable Power Station Specifications
BATTERY
| Specifications | Details |
| Battery Type | LiFePO4 Cell |
| Cell Part Number | 32140FS-15000mAh |
| Charging Cycle | 3000+ (to 80%) |
| Cell Capacity | 51.2Vdc 75Ah/3840Wh |
INPUT
| Specifications | Details |
| AC Input | 120V~ 15A Max (< 3hrs) / 12A Max (continuous), 60Hz, L+N+PE |
| AC Input Power (Charging) | 1800W Max |
| AC Input Power (Bypass Mode) | 1440W Max |
| Solar Panel Input 1 | 11-165V - 17A Max (1600W Max Each) |
| Solar Panel Input 2 | 11-165V - 17A Max (1600W Max Each) |
| DC Input Port | 60V Max, 120A Max |
OUTPUT
| Specifications | Details |
| Car Charger Output | 12V - 10A |
| Home Panel Power Port | 6000W Max (AC Input), 6000W Max (AC Output), 120V/240V, L1+L2+N+PE |
| AC Output Power (Total) | 6000W Max |
| AC Output 1 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output 2 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output (NEMA L14-30R) | 120V/240V~ 25A Max, 60Hz, 6000W Max |
| USB-A Output | 5V - 2.4A (12W Max Per Port) |
| USB-C Output | 5V - 3A / 9V - 3A / 15V - 3A / 20V - 3A / 20V - 5A (100W Max Per Port) |
UPS
| Specifications | Details |
| UPS | 20ms |
ENVIROMENTAL OPERATION
| Specifications | Details |
| Discharging Temperature | -4°F-104°F / -20°C-40°C |
| Charging Temperature | 32°F-104°F / 0°C-40°C |
DIMENSION
| Specifications | Details |
| Size | 27.6×15.3×15.6 in / 70.2×38.8×39.5 cm |
| Net Weight | 62kg / 136.7lb |
Anker SOLIX PS400 Portable Solar Panel Specifications
| Specification | Details |
| Peak Power | 400W |
| Open Circuit Voltage | 57.6V |
| Operating Voltage | 48V |
| Rated Current | 8.33A |
| Cell Efficiency | 23% |
| Net Weight | 20.34 lb | 9.23 kg |
| Product Dimensions (Folded) | 35.9 × 25.9 × 1.9 in | 913 × 659 × 47 mm |
| Product Dimensions (Unfolded) | 102 × 35.9 × 1.2 in | 2,591 × 913 × 30 mm |
| Product Weight | 35.1 lb | 15.9 kg |
| Operating Temperature | 4°F-140°F | -20°C-60°C |
Frequently-Asked Questions
Can the Anker SOLIX F3800 Plus power an entire home?
Yes, with 6,000W continuous output and 120V/240V capability, it can power essential appliances. Pairing it with the Home Power Panel allows seamless home integration.
How long does it take to fully recharge the F3800 Plus with solar?
With 3,200W solar input, it can fully recharge in 1.5 hours under ideal sunlight conditions.
Can I connect multiple F3800 Plus units?
Yes, you can connect two units to achieve 12,000W output (240V) for whole-home backup power.
Can I use the F3800 Plus while it's charging?
Yes. Pass-through charging allows you to use appliances while recharging via solar, AC, or a generator.
Does the system work with gas generators?
Yes. It supports 240V generator input, ensuring uninterrupted power during extended outages.
Can I install the solar panel on my roof?
Yes, the Anker SOLIX 400W Foldable Solar Panel is weather-resistant (IP67-rated) and supports both ground-mount and rooftop installations.
How does the system help reduce energy bills?
With AC Coupling technology, it stores excess solar energy during the day, allowing you to use stored power at night, reducing reliance on the grid.
Does the F3800 Plus provide automatic backup during outages?
Yes. When connected to a Home Power Panel, it automatically switches to backup mode, ensuring a seamless power transition.
What appliances can I run on the F3800 Plus?
The F3800 Plus can run refrigerators, air conditioners, heaters, power tools, sump pumps, and high-wattage appliances like electric stoves and well pumps.
Can I expand the battery capacity of the F3800 Plus?
Yes. You can expand its capacity up to 53.8kWh by adding compatible expansion batteries.
Can I charge the F3800 Plus with both solar and AC power at the same time?
Yes. The system supports dual charging methods for faster recharge times.
Is professional installation required for the F3800 Plus?
No. The system is designed for easy installation and can be set up by an electrician in a few hours.
Is the F3800 Plus safe to use indoors?
Yes. Unlike gas generators, the F3800 Plus produces no fumes or noise, making it safe for indoor use.
