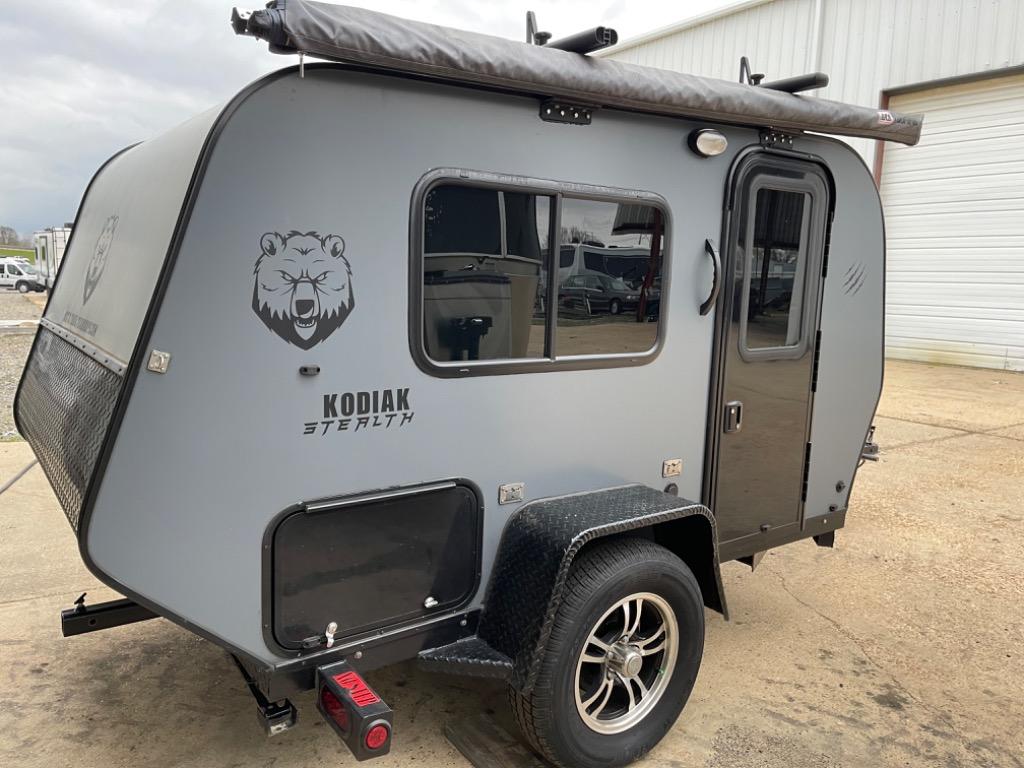

Kodiak Stealth Specifications
Interior Width 5' (58")
Interior Length 10' (115")
Interior Height 5' (58")
Total Exterior Width - Tire to Tire 80"
Total Exterior Length - Tongue to Back 13'
Total Exterior Height - Ground to Standard Air Vent 80.5"
Total Exterior Height - With Optional Deluxe Air Vent 82.5"
Total Exterior Height - With Optional Roof Rack 84"
Dry Weight - Cabinet & bed/dinette package 1,525 Lbs.
Tongue Weight 183 Lbs.
Carrying Capacity - Depending on Options 1,465 Lbs.
Gvwr 2,990 Lbs.
Axle Type Heavy Duty Leaf Spring (Trailer frame: Utility frame construction of Cold-rolled steel. Gloss black paint coating.)
Tire Size 15" Tires ST205/75R15 mounted on black steel rims - aluminum rims optional
Ground Clearance 14"
Flat Fender Weight Capacity 300 Lbs.
Ball Height - 2" Ball Required 17 - 18" From the ground to the top of the ball

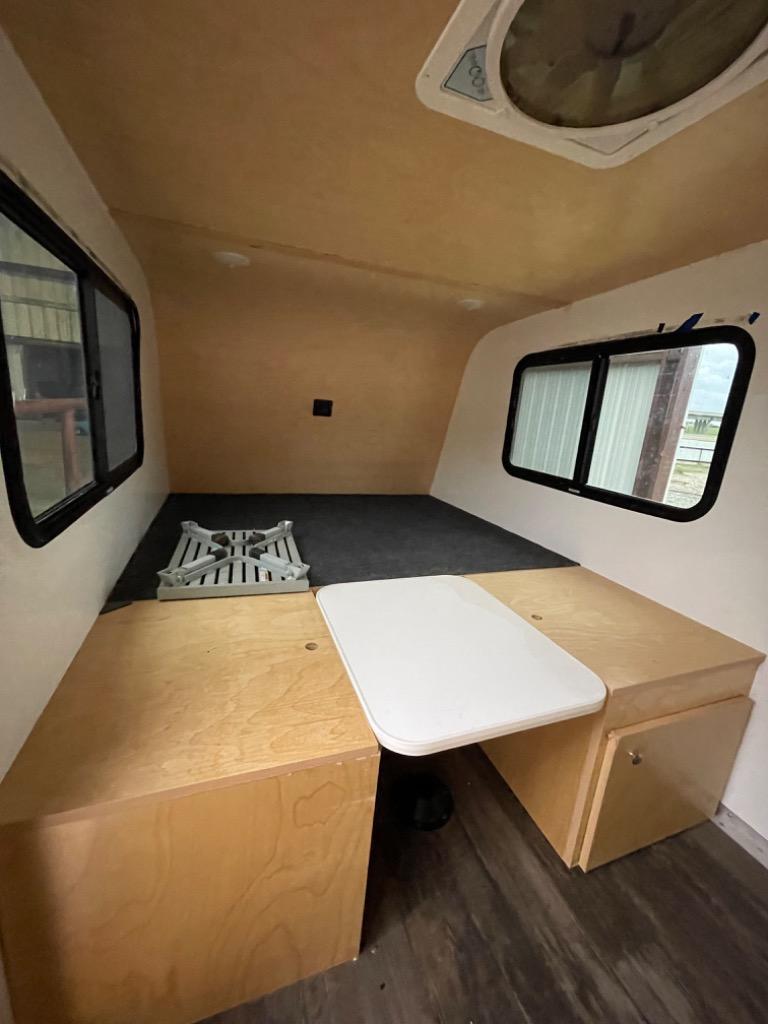

Bed Size - RV Queen 73" long x 58 ½ wide (3 dinette cushions convert into bed)
Dinette Table Size 20" wide x 35" long
Window Size 37" wide x 21" tall
Main Door Opening 22" wide x 54" tall
Cargo Hatch Opening (Dual) 22" Wide X 11.5" Tall
Dinette Seat(s) Size 19 ½" wide x 35" long x 15" tall (each seat)
Camper Sidewalls Grey exterior - ¾” exterior grade plywood with aluminum on the outside and HPL (mid 2021) on the inside

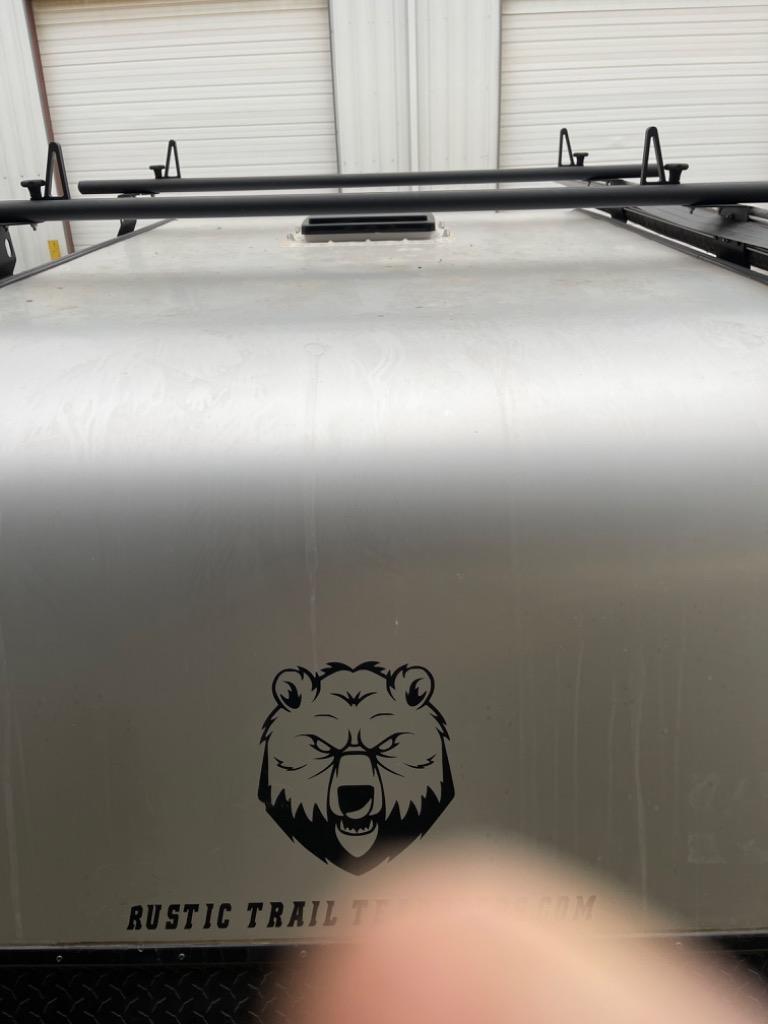

Exterior Roof Material .040 aluminum - Choose between silver or white PV coated

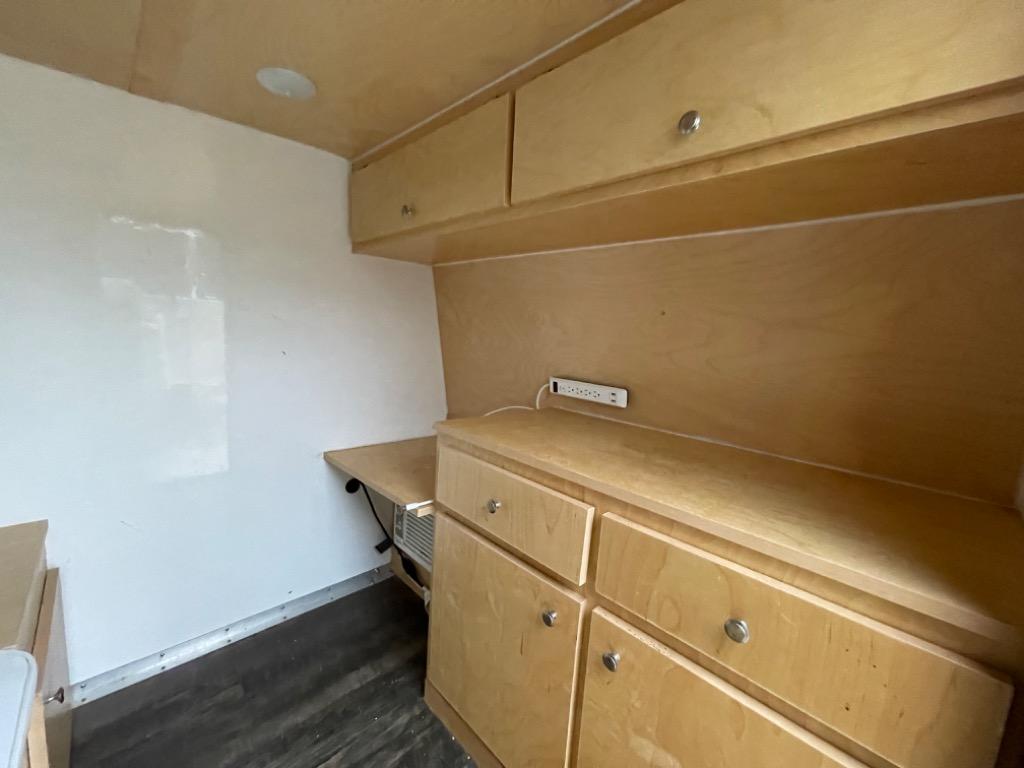

Lower Front Cabinet Size Depth 17 ½” x Length is 36”
Shelf Above A/C Height 9 3/4” x Depth 19” x Length 22½” ; Clearance from floor to bottom of the shelf is 19”
Upper Front Cabinet Size Length of 58 ½” x Depth of 11” x Height of 8”
Exterior Diamond Plate Color: Black
Optional Roof Rack Load Capacity 350 Lbs. max
A Frame Trailer Box Back-36" Front-18" Width-19.5" Height-18" (weighs: 20 Lbs.)
Battery Type AGM Deep Cycle LDC 12-115-G31 BCI Group 31 (weighs: 70 Lbs.)
Outside Table 35" long x 19" wide (weighs: 15 Lbs.)
A/C Unit 5,000 BTU - Front face is 16" wide x 11" tall (weighs: 40 Lbs.)
Optional Awning 8.2FT long x 8.2FT wide (weighs: 35 Lbs.)
2" Rear Receiver Weight Limit 250 Lbs. max
